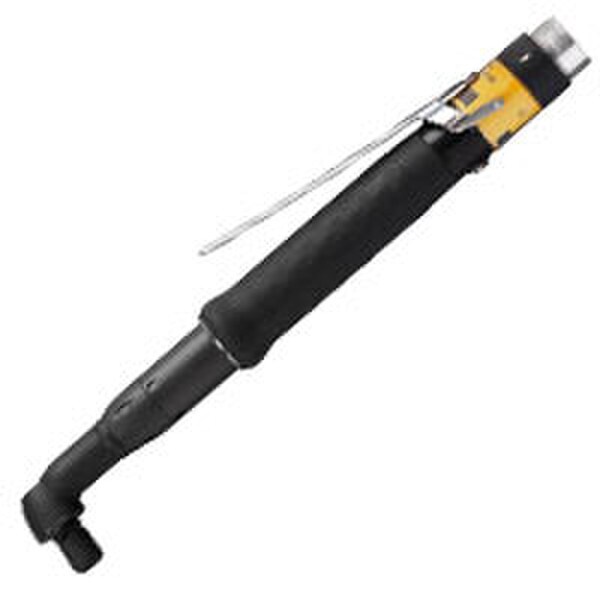

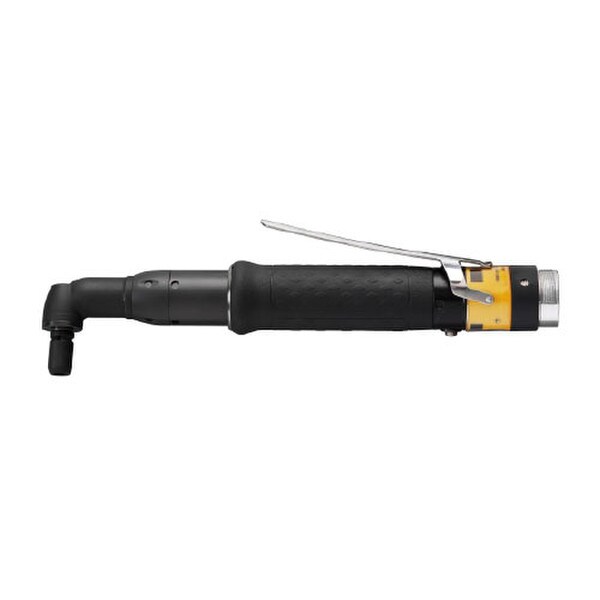

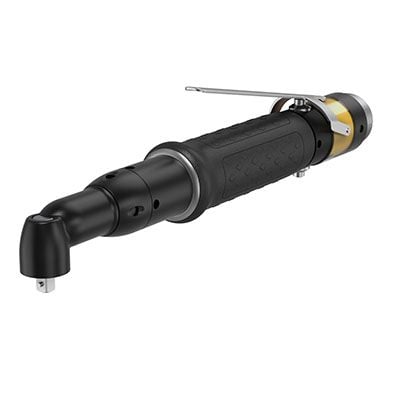

SL ETV SL21-12-I06-QC | Transducerized Wired Driver, 2.5-12Nm Angled Torque Driver with 1/4" Hex Quick Change Drive - 610rpm
Overview
Atlas Copco 8433 2008 61
Etv Sl21-12-I06-Qc, Right Angle Electric Screwdriver, Lever Start, 23-106 In Lbs
transducerized screwdriver, the Tensor SL is a smart, compact and powerful electronic screwdriver that is the ideal tool for achieving zero-fault production in a wide range of low-torque applications. The Tensor SL range is designed to improve your process quality, ensure productivity gains and dramatically cut costs.
Features:- High performance brushless motor with wide torque range gives shorter cycle times and enables faster production.
- All tools have ESD certification, this is you guarantee against damage to electrical components.
- Excellent ergonomics with high power to weight ratio.
- Signal lights ensure detection of incorrectly tightened fasteners.
- Additional blue LED gives increased operator support for example batch OK feedback.
- The configurable function button can be set up for different reverse modes and toggling between different programs
- Configurable buzzer gives tailor made operator feedback.
- Configurable front lights for best visibility.
- Push to start function for fast start.
Technical Specifications
SKU: 8433 2008 61
csdistance
11 mm
length
267 mm
outputsize
1/4'
weight
1.8 lb
modeltype
Angle
outputfeature
Bit holder
outputtype
Hexagon, Female
shutoffsystem
Transducer
toolfamily
SL
torquerangemax
12 Nm
torquerangemin
2.5 Nm
torquescatter3s
≤ 5 %
speedrangemax
610 r/min
soundpressure
<70 dB(A)
soundstandard
ISO15744
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
ccccertified
No
cqccertified
No
eaccertified
Yes
eulegislation
2006/42/EC (MD)
eustandard
EN 61000-6-2:2019
kccertified
Yes
kcid
R-REI-50A-ETDSL21
ukregulations
S.I. 2008/1597
ukstandard
BS EN 62841-1:2015 + AC:2015 + A11:2022
weee
5 - Small equipment <50cm
motorpower
140 W
motorvoltagetype
3 a.c.
motorvoltage
35 V
