FANUC M-2000iA Ultra Heavy Payload Robots

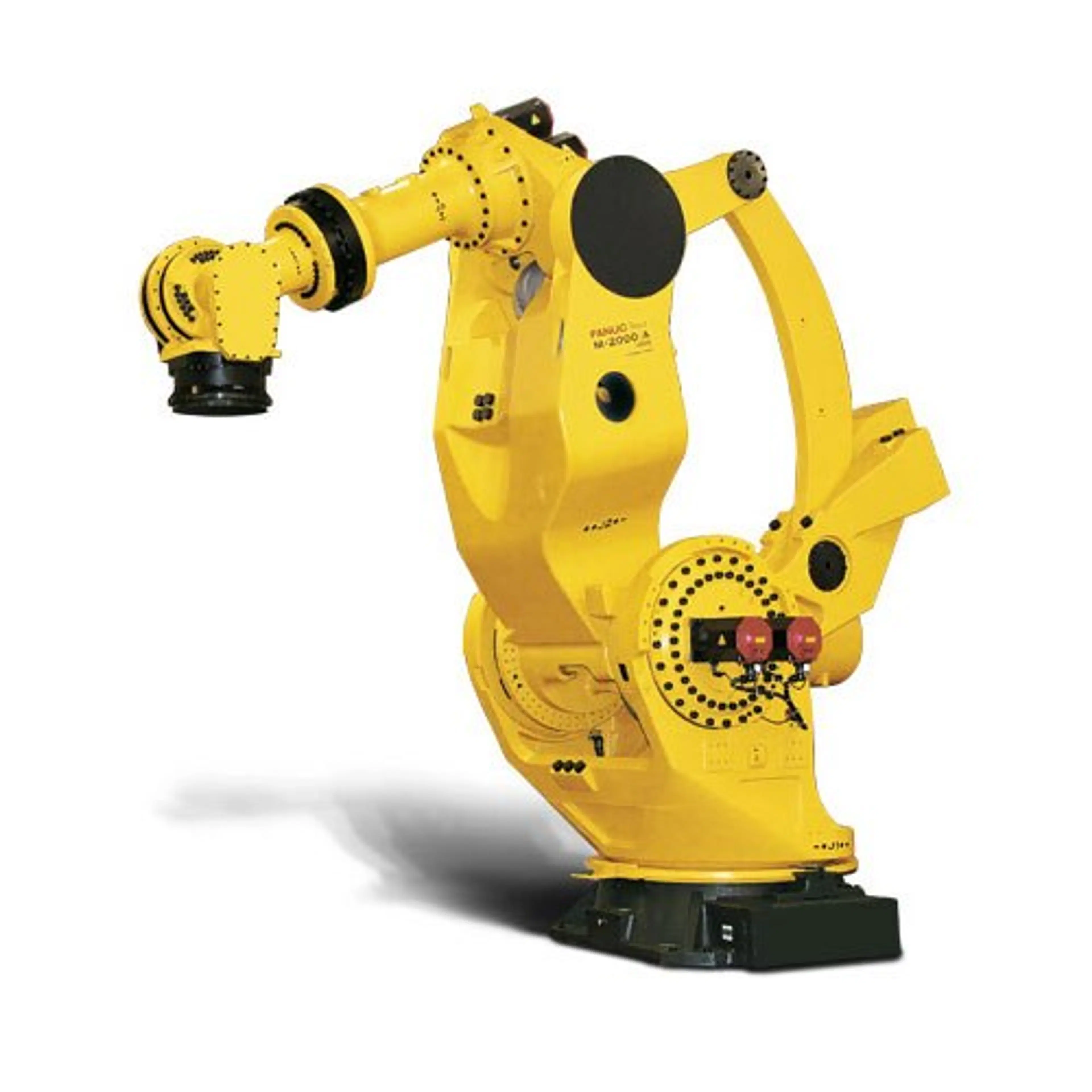

Up until the introduction of the M-2000iA/2300, the M-2000iA/1200 was the strongest 6 axis robot on the market. But this powerful heavy-duty robot still has what it takes to satisfy all but the most very demanding of high-payload material handling applications.

Features & Benefits

• Capable of mastering enormous payloads of up to 1200 (1350) kg, this robot stands out as the most powerful of all the FANUC robots.
• With one FANUC M-2000iA robot doing the work of 2 to 4 conventional robots, robot systems have just become much simpler, more reliable and easier to reprogram.
• With a 1250 mm offset this powerful model is ideal for handling and palletising ultra heavy structures and products.
• Huge payload and reach can do the work of conventional cranes, lifters and shuttles to increase production and eliminate the need for dangerous manual work

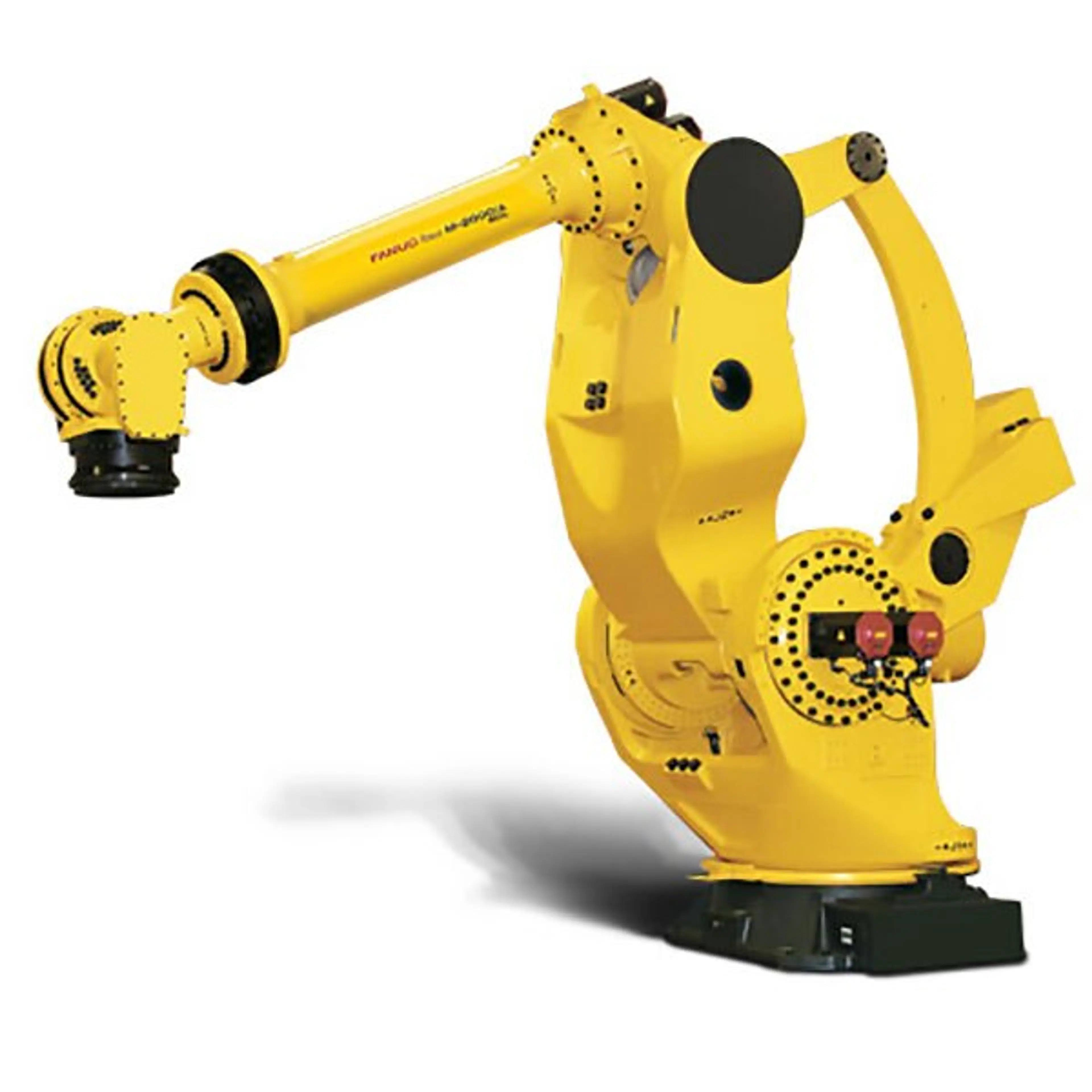

Long arm strongman. Boasting an outstanding vertical lifting stroke and a payload capacity of 900 kg, this heavy-duty long-arm version makes light of even heavy load applications.

Features & Benefits

• Ideal for a vast range of material handling applications in the automotive and heavy machinery industries.
• Lifting to an enormous 6200 mm and boasting a horizontal reach of 4683 mm, this powerlifter will easily handle the very largest of workpieces.
• This long arm version provides the highest reach of all the FANUC robots.

Meet the strongest long reach robot in the world! With its 1.7 t payload capacity and 6.2 m stroke, it provides maximum flexibility on operations involving large and heavy objects.

Features & Benefits

• Capable of effortlessly lifting and positioning an entire car body within its generous work envelope, this robot has been designed to improve workflow, increase efficiency and to reduce your costs.
• Enhanced lifting capacity makes it great way of adding flexibility to your heavy material handling operations.
• Can move and place objects within a large defined work area to an extremely high degree of precision.

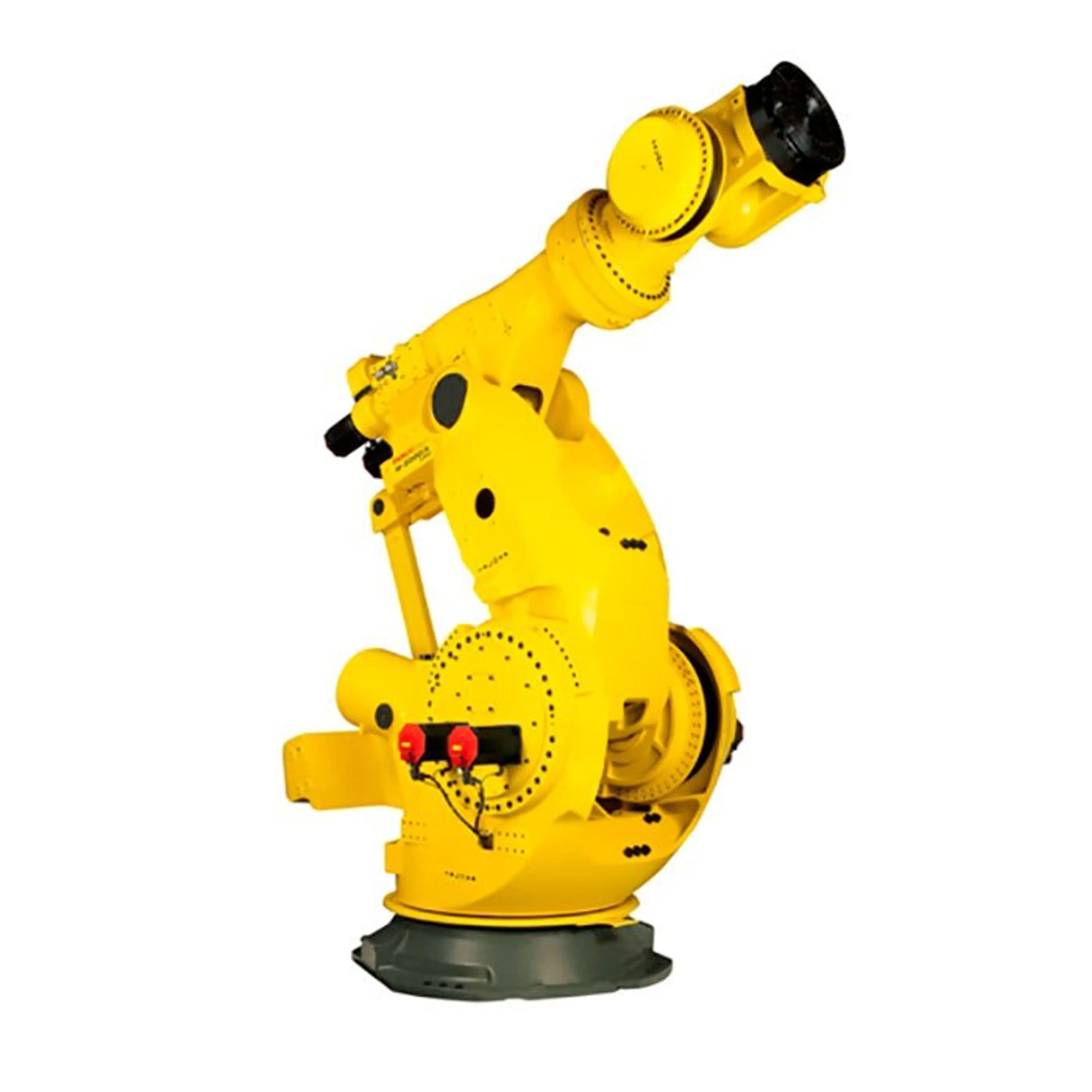

With its enormous 2.3 t payload, the M-2000iA/2300 is the biggest lifter in the range. Ideally suited to heavyweight material handling applications that require an even stronger wrist

Features & Benefits

• Able to easily lift and position an entire car or load bulky set castings onto machine fixtures.
• The M-2000iA/2300’s super-strong IP67 protected wrist, means it’s capable of lifting and holding an entire car from the side.
• Enhanced lifting capacity makes it great way of adding flexibility to your heavy material handling operations.
