Small Digital Torque Wrench, 0.5 – 5 Nm w/ 1/4" Sq Dr. Head
Small digital torque wrench, 0.5–5 N·m range with LED display, USB data output, and optional Bluetooth module. Includes QH6D 1/4" square drive head, BP-5 battery pack, and calibration certificate. Perfect for high-precision assembly and inspection work.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 BC-3-GBC-3-G | Battery Charger for CEM3, CTA2, CTB2, AC100-240V$244.53 | $244.53 | 1 | View details |
 BP-5BP-5 | BATTERY PACK FOR CEM3$134.40 | $134.40 | 1 | View details |
Details
Product information
Overview

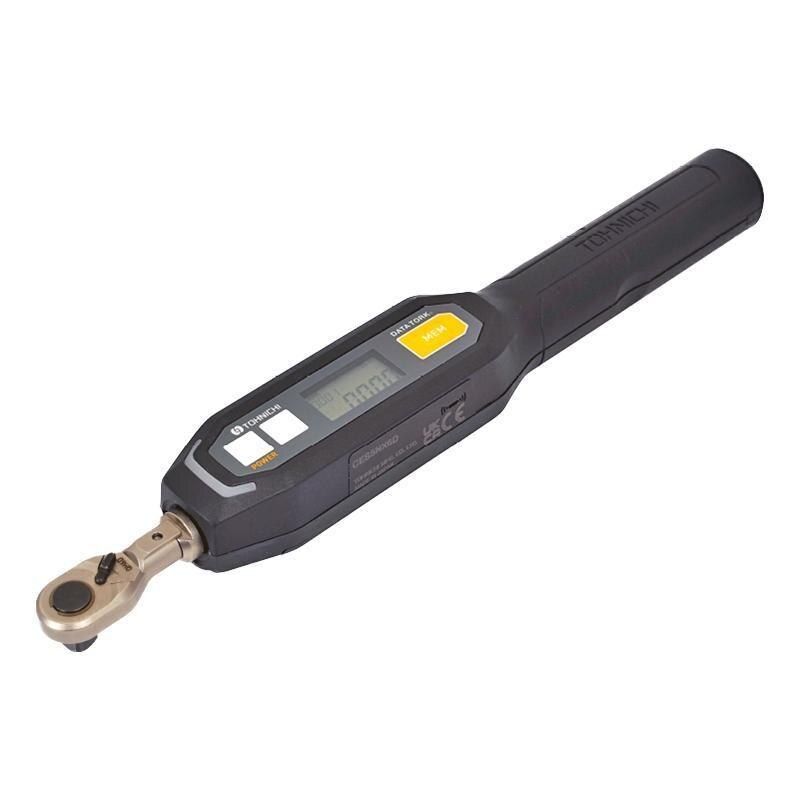

Tohnichi CES5NX6D-G Small Digital Torque Wrench
The Tohnichi CES5NX6D-G is the smallest digital torque wrench in the CES series, designed for precision tightening in assembly and inspection environments. With a torque measurement range of 0.5 to 5 N·m, this compact and lightweight tool delivers highly accurate results for delicate applications such as electronics, medical devices, and precision instruments.
The CES5NX6D-G includes a QH6D 1/4" Square Drive Interchangeable Head, BP-5 Battery Pack, and a Certificate of Calibration for assured performance. Equipped with a bright LED display, USB data output, and optional Bluetooth capability, it allows seamless torque tracking and inspection reporting. Its abnormal tightening detection helps identify errors such as double tightening, missing parts, or improper seating, reducing defective product risk.
Whether you are working in quality control, R&D labs, or light assembly lines, the CES5NX6D-G provides unmatched precision, reliability, and modern connectivity for professional torque management.
Note: BC-3-G Battery Charger sold separately.
| Technical Specifications | |
|---|---|
| Manufacturer | Tohnichi |
| Model | CES5NX6D-G |
| SKU | CES5NX6D-G |
| Type | Digital Torque Wrench |
| Weight | 0.17 kg (0.98 lbs) |
| Torque Range (Nm) | 0.5 - 5 |
| Graduations (Nm) | 0.005 |
| Accuracy | +-2% (0.5 - 1 Nm) / +-1% (1 - 5Nm) |
| Torque Range (kgf-cm) | 5 - 50 |
| Graduations (kgf-cm) | 0.05 |
| Accuracy | +-2% (5 - 10 kgf-cm) / +-1% (10 - 50 kgf-cm) |
| Torque Range (in lbs) | 4.5 - 44 |
| Graduations (in lbs) | 0.05 |
| Accuracy | +-2% (4.5 - 10 in lbs) / +-1% (10 - 44 in lbs) |
| Max Hand Force P (N) | 30.9 |
| Overall Length | 195mm |
| Interchangeable Head | SH/QH 6D |
| Battery | BP-5 |
| MPN | CES5NX6D-G |
| Features & Benefits | |
| Torque range: 0.5–5 N·m, ultra-precise measurement | |
| Lightweight and compact — ideal for delicate work | |
| LED display with pass/fail judgment visible from multiple angles | |
| Abnormal tightening detection prevents assembly errors | |
| USB output for data transfer; Excel-compatible software included | |
| Optional Bluetooth module for wireless torque tracking | |
| Supplied with interchangeable 1/4" drive head, battery pack, and calibration certificate | |
| Torque range: 0.5–5 N·m, ultra-precise measurement,Lightweight and compact — ideal for delicate work,LED display with pass/fail judgment visible from multiple angles,USB output for data transfer; Excel-compatible software included,Optional Bluetooth module for wireless torque tracking,Supplied with interchangeable 1/4" drive head, battery pack, and calibration certificate,Abnormal tightening detection prevents assembly errors | |
