Chicago PneumaticT025285

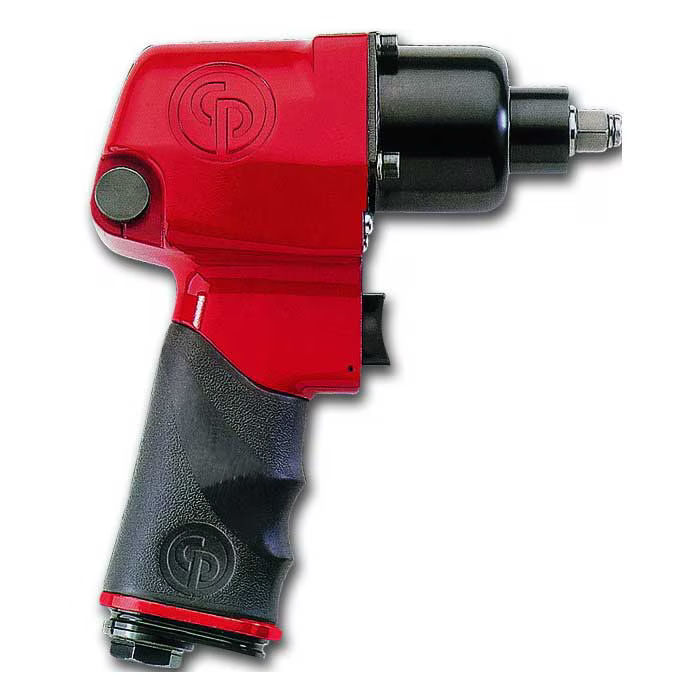

CP6300 RSR | 3/8 in. 180 ft lb Air Impact Wrench, Pistol, 6800 rpm
Powerful, lightweight and durable for industral applications
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
T025285 | CP6300 RSR | 3/8 in. 180 ft lb Air Impact Wrench, Pistol, 6800 rpmCP6300 RSR
Price on request
Recommended Accessories
1 itemAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|

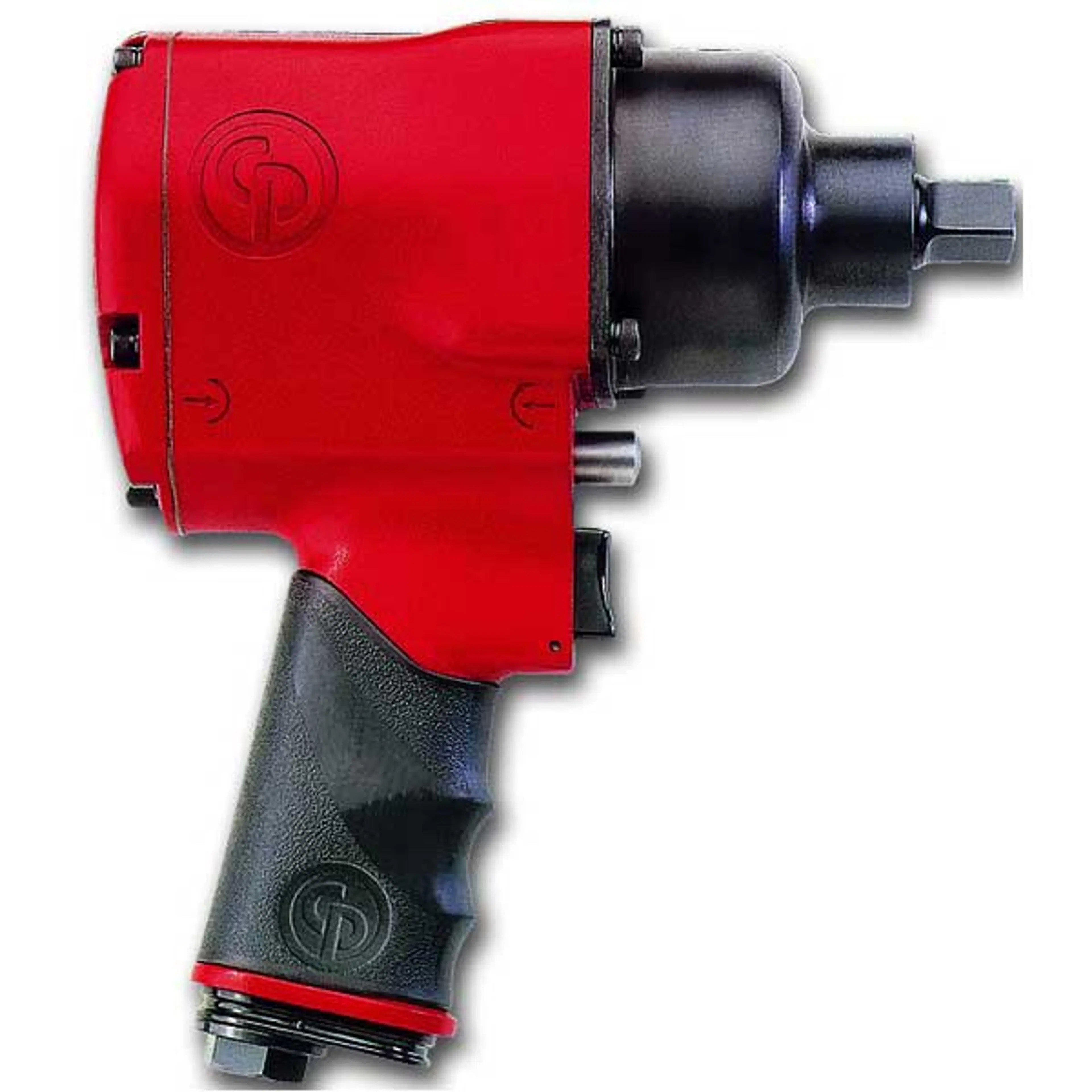

 CP6500 RST025214 | CP6500 RS | 1/2 in. 625 ft lb Air Impact Wrench, Pistol, 6400 rpm | 1 | View details |
Details
Product information
Overview
Chicago Pneumatic 3/8 in. 180 ft lb Air Impact Wrench, Pistol, 6800 rpm
CP6300 RSR
CP6300 RSR, 3/8 in. 180 ft lb Air Impact Wrench, Pistol, 6800 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 3/8 in. 180 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!
Benefits
- Industrial Maintenance & Production
- Durable housing for versatile applications
- Powerful torque delivery
- Compact and lightweight for operator comfort
- Easy to service
Features
- 3/8" Heavy-duty impact wrench
- Powerful Single Dog clutch
- Perfect control with a 4-position regulator
- Aluminum body & steel clutch housing
- Rubber grip & Teasing trigger
| Technical Specifications | |
|---|---|
| Max working torque fwd | 203 Nm |
| Max torque reverse | 243 Nm |
| Min working torque fwd | 54 Nm |
| Torque limited | No |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 101 dB(A) |
| Sound Pressure | 90 dB(A) |
| Uncertainty vibration-K | 1.6 m/s² |
| Vibration (m/s²) | 5 |
| Free Speed | 6800 rpm |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Length (L) | 152 mm |
| Power weight ratio | 150 Nm/kg |
| Side to Center | 32 mm |
| Weight | 1.6 kg |
| Blow per minute | 1800 |
| Body | Aluminum |
| Clutch housing | Steel |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Single hammer |
| Output drive size (in) | 3/8 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
| MPN | CP6300 RSR |
| Features & Benefits | |
| Powerful Single Dog clutch | |
| Powerful torque delivery | |
| Perfect control with 4-position regulator | |
| Compact and lightweight | |
