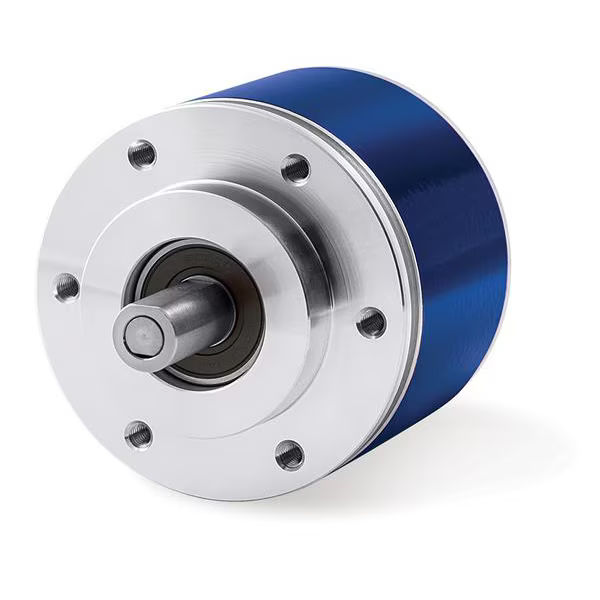

AST58 Series Absolute Rotary Encoders
AST58 is the absolute encoder single-turn standard industrial line, recommended for its price/performance ratio, high resolution and accuracy for advanced applications.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
9 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Details
Product information
Overview
AST58 is the absolute encoder single-turn standard industrial line, recommended for its price/performance ratio, high resolution and accuracy for advanced applications. The typical applications for this encoder can be found in motion control, automated machinery, conveyor lines.
Features:
- Aluminium anticorodal metal case Ø58 mm
- Solid shaft Ø6 or 10 mm, hollow shaft Ø15 mm
- Reducing sleeves to 6, 8, 9.52, 10, 11, 12 mm
- Single-turn resolution 13 bit (up to 8192 cpr)
- M12, M23, or 1.5m cable connection
- Gray SSI® tree output signal
- Power supply 7.5 – 34 Vdc
Applications:
- Motion control
- Conveyor lines
- Automated machinery
| Features & Benefits | |
|---|---|
| Single-turn resolution 13 bit (up to 8192 cpr) | |
| M12, M23, or 1.5m cable connection | |
| Reducing sleeves to 6, 8, 9.52, 10, 11, 12 mm | |
| From $430 | |
| Single-turn resolution 13 bit (up to 8192 cpr),M12, M23, or 1.5m cable connection,Reducing sleeves to 6, 8, 9.52, 10, 11, 12 mm |
