S65-V Series Color Sensors
The S65-V color sensors offer the best performances for color detection in a compact housing.
Models Available
8 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Details
Product information
Overview

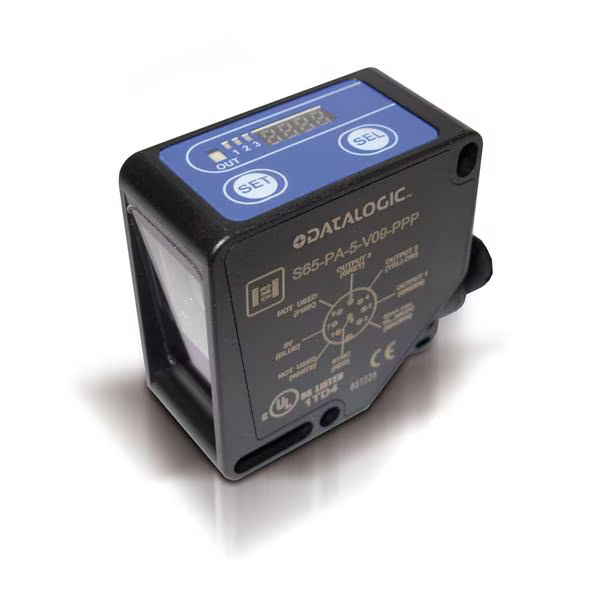

The S65-V color sensors offer the best performances for color detection in a compact housing. The S65-V, thanks to a good response time of only 340μs, results to be particularly suitable for automatic packaging applications, quality control and part checking in the process production.
The sensors can memorize and recognize 3 colors on 3 independent channels. The auxiliary functions include keylock and synchronization with external events through a specific input. The control panel presents two setting push-buttons, outputs LEDs and a 4-digit display for functioning messages and sensor configuration. Complete remote control is possible for the version with the RS485 serial interface.
Features:
- White emission: good performance/price ratio
- C or C+I selectable functioning mode: high detection reliability and resolution
- Teach-in push-button and display 4 digits indicator: fast and easy setting
- 1.5KHz switching frequency: precise and repeatability reading
- RS485 serial interface: data transmission and remote setting
Applications:
- Packaging lines
- Sorting
- Wood working machines
- Glass working machines
- Automotive
| Features & Benefits | |
|---|---|
| 2 push button setting with 4 digit display indicator | |
| 3 channel color sensor with 10 tolerance levels | |
| 3 independent NPN or PNP outputs and RS 485 serial interface | |
| From $553 | |
| 3 independent NPN or PNP outputs and RS 485 serial interface |
