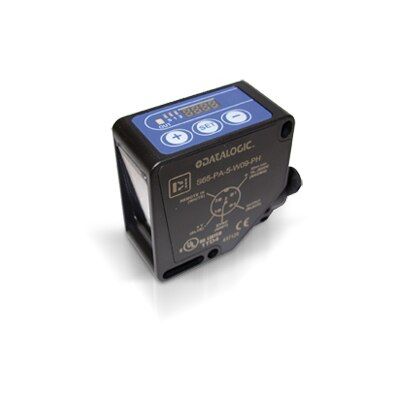

S65-W Series Contrast Sensors
The S65-W contrast sensor series offers, in a sturdy standard compact 50x50mm ABS housing with IP67 mechanical protection, an advanced contrast sensor for the detection of register marks and other neutral or colored targets.
Models Available
4 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Optic Position | Sensing Distance | Price | Qty | |
|---|---|---|---|---|---|
 S65-PA-5-W09-NH954201000 | S65-PA-5-W09-NH | Contrast Sensor, 16us response, NPN, M12 5-pole Connector$325.25 | Axial | 20mm | $325.25 | 1 | View details |
| S65-PA-5-W09-NHZ954201010 | S65-PA-5-W09-NHZ | Contrast Sensor, 16us response, NPN, RS485, M12 8-pole Connector$363.39 | Radial 90° | — | $363.39 | 1 | View details |
| S65-PA-5-W09-PH954201020 | S65-PA-5-W09-PH | Contrast Sensor, 16us response, PNP, M12 5-pole Connector$325.25 | Radial 90° | 15 mm | $325.25 | 1 | View details |
 S65-PA-5-W09-PHZ954201030 | S65-PA-5-W09-PHZ | Contrast Sensor, 16us response, PNP, RS485, M12 8-pole Connector$363.39 | Radial 90° | 15 mm | $363.39 | 1 | View details |
Details
Product information
Overview
The S65-W contrast sensor series offers, in a sturdy standard compact 50x50mm ABS housing with IP67 mechanical protection, an advanced contrast sensor for the detection of register marks and other neutral or colored targets. The state-of-the-art technology with wide-spectrum white LED emission guarantees the detection of all contrasts.
The control panel presents three push-buttons for easy and immediate setting and a 4-digit display that indicates the configuration parameters and the level of received signal without the need of connecting external devices. Models with only one NPN or PNP switching output are available, or with RS485 serial interface for data transmission as well as an analog monitoring output proportional to the received light intensity.
Features:
- White emission: high detection reliability and resolution
- Teach-in push-button and display 4 digits indicator: fast and easy setting
- 30KHz switching frequency: precise and repeatability reading
- RS485 serial interface: data transmission and remote setting
Applications:
- Packaging lines
- Paper and Printing machines
- Automatic filling machines
| Features & Benefits | |
|---|---|
| 3 channel color sensor with 10 tolerance levels | |
| 3 independent NPN or PNP outputs and RS 485 serial interface | |
| Wide spectrum white light LED emission and RGB photo-receiver | |
| From $314 | |
| 3 independent NPN or PNP outputs and RS 485 serial interface | |
| Wide spectrum white light LED emission and RGB photo-receiver |
