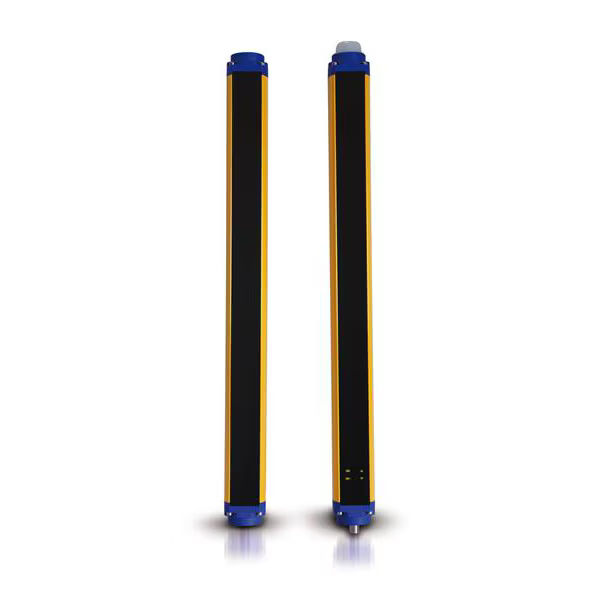

SG Body Reflector Series Light Curtains

SG BODY REFLECTOR (BASE and MUTING) are body protection Type 4 safety light curtains consisting of one active and one passive part, thus reducing installation, wiring time and costs.

The sturdy housing and the optical-electronic characteristics, similar to SG BODY BIG, guarantee their reliability in harsh environments and alignment stability.

SG BODY REFLECTOR MUTING can also have T and L muting sensors, and all advanced features related to muting, like anti-interference coding, edged or triggered override, and external muting enable signal.

Features:

• 2, 3, 4 beams with 500, 800, 900 and 1200mm controlled heights
• One active part (emitter and receiver) and one passive part (mirrors)
• Big sturdy profile: 52 x 56 mm (2.08 x 2.24 in)
• 3 different types of mounting brackets (swivelling side for "thin mounting", top-bottom and rear)
• User interface: 4 or 2 LEDs + 7 segment display
• Operating distance up to 8 m
• Integrated T muting (bidirectional) and L muting (monodirectional) functions, integrated muting lamp (only SG BODY REFLECTOR MUTING)
• Models with pre-assembled and pre-cabled retroreflective polarized muting sensors (only SG BODY REFLECTOR MUTING)
• Advanced features: Anti-interference coding, edged or triggered override, external muting enable signal

Applications:

• Automatic machines
• Robots
• Automatic assembling lines
• Palletizers and Depalletizers
