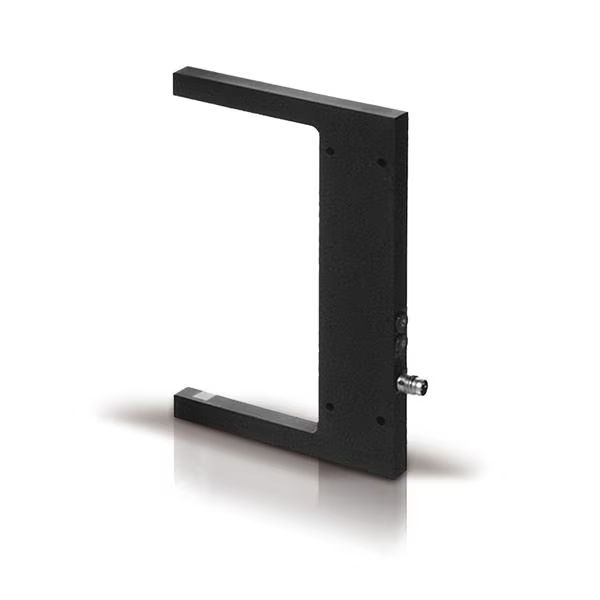

SRF Series Fork Sensors
The slot sensors of the SRF series are photoelectric devices characterized by an excellent precision thanks to the red LED emission which offers resolutions reaching 0.
Models Available
12 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Details
Product information
Overview
The slot sensors of the SRF series are photoelectric devices characterized by an excellent precision thanks to the red LED emission which offers resolutions reaching 0.3mm or class II laser emission for resolutions down to 0.03mm. High precision and reading repeatability are obtained thanks to the laser emission combined with high switching frequency. The SRF series presents versions with 30, 50, 80 and 120mm slots guaranting best adaptation to the many different applications. Sensitivity adjustment is easily accomplished thanks to the trimmer positioned on the back side of the sensor. The range offers versions with PNP or NPN output, Light/Dark mode selection.
Features:
- Trimmer setting: easy and fast setting procedure
- Laser models: high detection repeatability for a precise reading
- Dark/Light mode setting: adaptability to customer applications
- Availability of 30, 50, 80 and 120mm slots: suitable for all the industrial applications
Applications:
- Packaging lines
- Automatic machine
- Automotive
- Elettronic industry
| Features & Benefits | |
|---|---|
| Visible red emission models | |
| High resolution LASER models | |
| Sensitivity adjustment trimmer and DARK/LIGHT selectors | |
| From $141 |
