TL46 Series Contrast Sensors
The TL46 contrast sensorseries is characterized by excellent performances in terms of resolution due to a RGB LEDs emission, low response time and high switching speed.
Models Available
11 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Details
Product information
Overview
The TL46 contrast sensorseries is characterized by excellent performances in terms of resolution due to a RGB LEDs emission, low response time and high switching speed. The sensor, developed in a sturdy metal housing with standard fixing, is available in 3 different version.

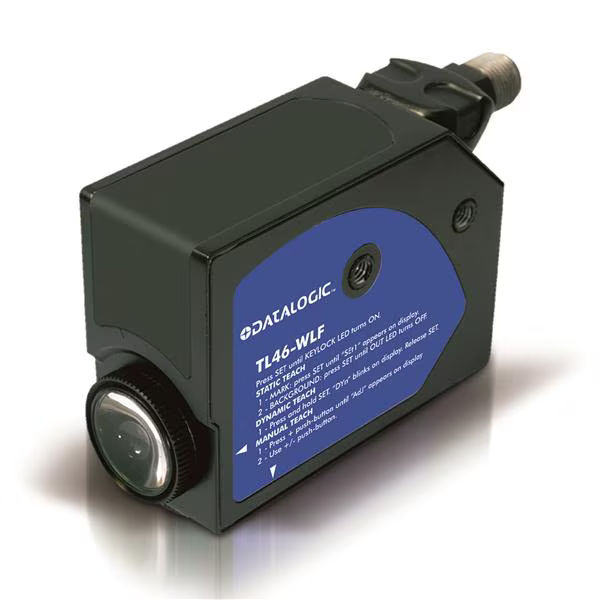

TL46-W basic version with 2 set push-buttons and 2 LEDs indicator, TL46-WL standard version has set 3 push-buttons, 4 LEDs indicator and bar graph is also available for manual setting of the threshold and TL46-WLF enhanced version presents a 4-digit display for the setting of the most advanced functions, such as dynamic acquisition of the contrast mark. The sensor reaches the maximum market performances at 30kHz switching frequency.
Features:
- RGB emission: high detection reliability and resolution
- Teach-in push-button and bar graph or display 4 digits indicator: fast and easy setting
- 30KHz switching frequency: precise and repeatability reading
- Rotatable M12 5-pole connector: adaptability to the mechanical part of the plant
Applications:
- Packaging lines
- Paper and Printing machines
- Automatic filling machines
| Features & Benefits | |
|---|---|
| Wide-spectrum RGB or white LED emission | |
| 4 different models: basic, standard, enhanced, low jitter | |
| 15, 20, 30 or 50 kHz switching frequencies | |
| From $217 | |
| 4 different models: basic | |
| standard | |
| enhanced | |
| low jitter | |
| 15 | |
| 20 | |
| 30 or 50 kHz switching frequencies |
