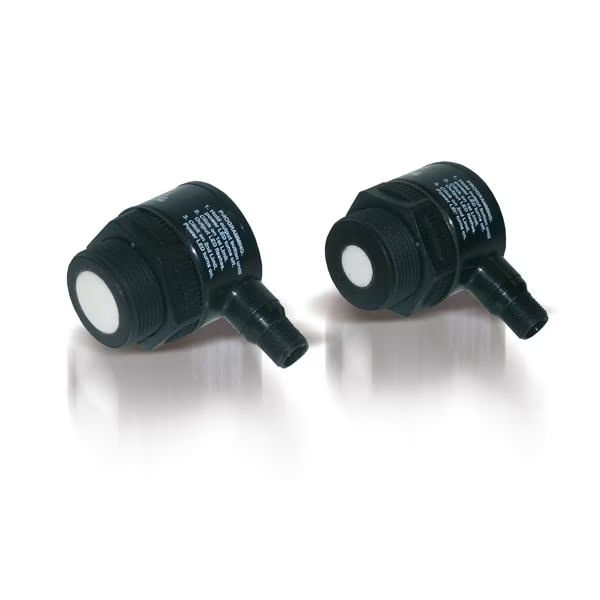

US30 Series Ultrasonic Sensors
M30x1 ultrasonic sensors of the US30 series are available in models with operating distances reaching 200 cm either with bipolar digital output (1 NPN and 1 PNP) or with 4-20 mA or 0-10 V analogue output.
Recommended Accessories
6 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Operating Range | Nominal Sensing Distance | Output Type | Price | Qty | |
|---|---|---|---|---|---|---|
 95B04006095B040060 | Ultrasonic M30 radial 1000mm - 4-20 mA analogue - M12$375.47 | 200 mm - 8000 mm | 1 m | 4-20 mA | $375.47 | 1 | View details |
| 95B04007095B040070 | Ultrasonic M30 radiall 1000mmù - 0-10V analogue - M12$375.47 | 200 mm to 8000 mm | 1 m | 0-10 V | $375.47 | 1 | View details |
| 95B04008095B040080 | Ultrasonic M30 radial 2000mm - 4-20 mA analogue - M12$387.76 | 200 mm to 2000 mm | 2 m | 4-20 mA Analog | $387.76 | 1 | View details |
| 95B04009095B040090 | Ultrasonic M30 radiall 2000mm - 0-10V analogue - M12$387.76 | 200 mm - 8000 mm | 2000 mm | 0-10 V | $387.76 | 1 | View details |
| 95B04010095B040100 | Ultrasonic M30 radial 1000mm- PNP/NPN- M12$312.92 | 200 mm to 8000 mm | 1 m | — | $312.92 | 1 | View details |
| 95B04011095B040110 | Ultrasonic M30 radial 2000mm- PNP/NPN- M12$325.21 | 200 mm to 8 m (Series) | 2 m | — | $325.21 | 1 | View details |
Details
Product information
Overview
M30x1 ultrasonic sensors of the US30 series are available in models with operating distances reaching 200 cm either with bipolar digital output (1 NPN and 1 PNP) or with 4-20 mA or 0-10 V analogue output. The sensors can be easily configured using the Teach-in function, while the operating status is visibly signalled by 3 LEDs. The temperature compensation function corrects the sound speed changes due to temperature variations, so the sensor precision remains unchanged in all situations
Applications:
- Food machines
- Packaging and packing machines, material handling
- Automatic warehouses
- Level control
- Metal, paper and wood working machines
- Automotive
| Features & Benefits | |
|---|---|
| High precision and switching frequency | |
| Easy Teach-in setting and 3 signalling LEDs | |
| Models with digital NPN-PNP and 0-10 V or 4-20 mA analogue outputs | |
| From $289 |
