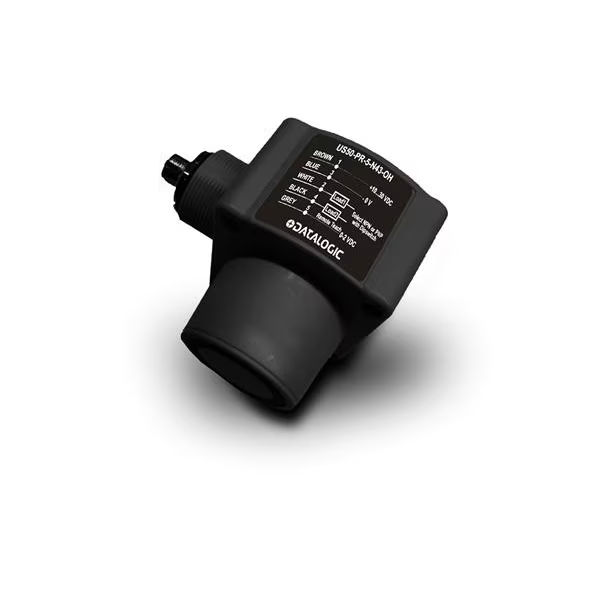

US50 Series Ultrasonic Sensors

Datalogic Automation US50 is the new series of ultrasonic sensors with M50 plastic tubular housing. All models are provided with a radial emitting head and offer the following versions:

• Digital bipolar PNP/NPN NO/NC configurable output
• Analogue 0-10V / 4-20mA configurable output.

Operating distance from 200mm to 8m makes US50 ideal solution for all industrial applications where the target must be detected or measured really far away from the sensor.

Features:

• Features ultrasonic dead-zone of only 2.5% of the total range: 75% less than comparable products
• Available in analog or discrete dc models: maximum flexibility
• Features a completely sealed, shock-resistant housing : ideal for monitoring levels of liquids as well as solids
• Narrow sensing beam: capability to detect targets at long range within confined areas—such as a storage tank—without interference from the tank walls
• Compensates for temperature: greatest sensing accuracy
• Push-button and remote TEACH-mode programming: simple setup.

Applications:

• Ceramics
• Beverage & Bottling
• Transportation lines
• Packaging lines
