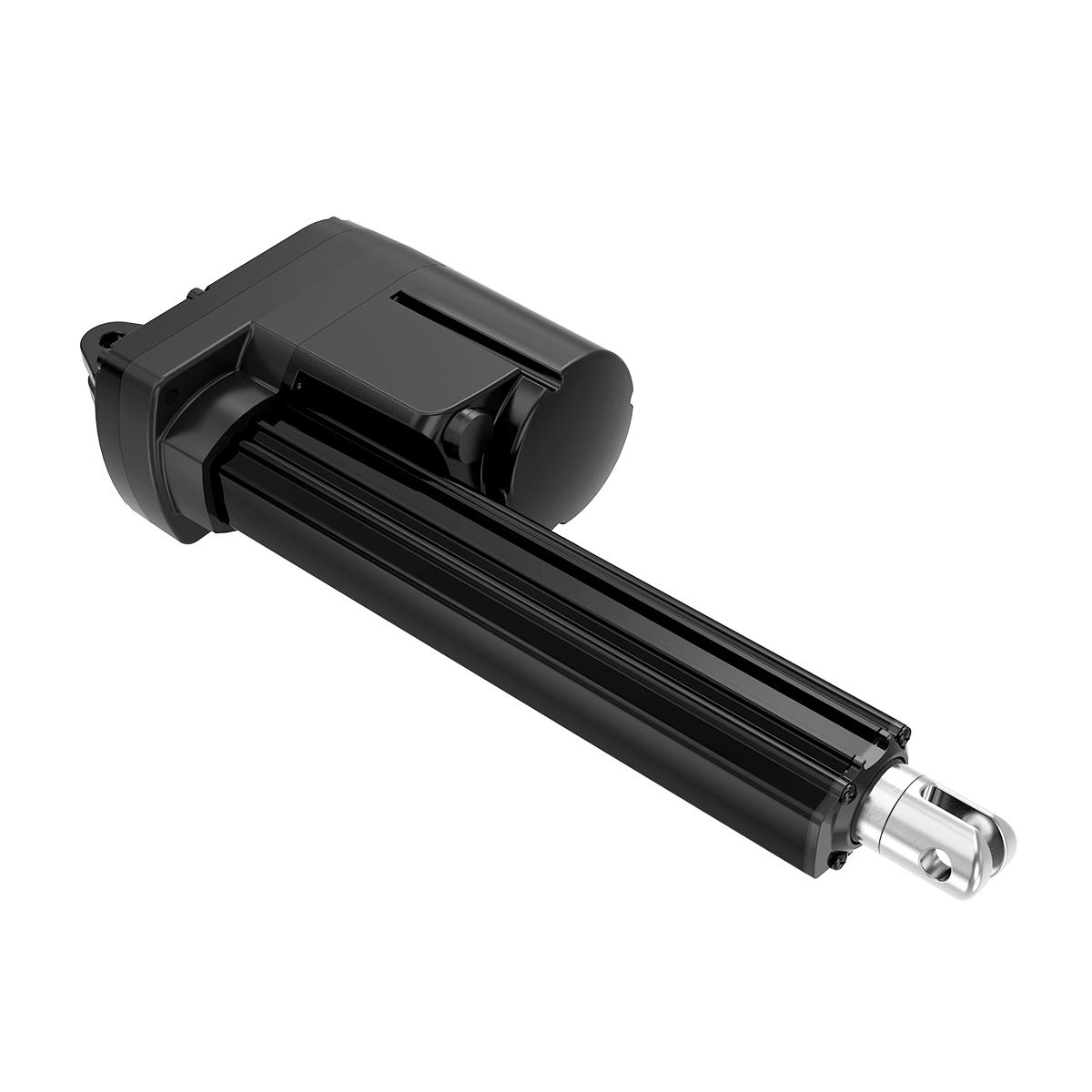

XT Linear Actuators

Heavy Duty 24VDC Linear Actuator, Durable Construction with corrosion resistant aluminium outer tube

Models and pricing below
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Documents2 files

Models Available

24 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

ProductStroke Length (in)Capacity (lbs)PriceQty
XT1250-2-150XT1250-2-150 | Linear Actuator, 24 VDC, 1250 lbs, 5.9'' Stroke$451.005.91250$451.001View details
XT1250-2-150PXT1250-2-150P | Linear Actuator, 24 VDC, 1250 lbs, Potentiometer, 5.9'' Stroke$502.005.91250$502.001View details
XT1250-2-300XT1250-2-300 | Linear Actuator, 24 VDC, 1250 lbs, 11.9'' Stroke$480.0011.91250$480.001View details
XT1250-2-300PXT1250-2-300P | Linear Actuator, 24 VDC, 1250 lbs, Potentiometer, 11.9'' Stroke$530.0011.91250$530.001View details
XT1250-2-450XT1250-2-450 | Linear Actuator, 24 VDC, 1250 lbs, 17.7'' Stroke$508.0017.71250$508.001View details
XT1250-2-450PXT1250-2-450P | Linear Actuator, 24 VDC, 1250 lbs, Potentiometer, 17.7'' Stroke$554.0017.71250$554.001View details
XT1250-2-600XT1250-2-600 | Linear Actuator, 24 VDC, 1250 lbs, 23.6'' Stroke$553.0023.61250$553.001View details
XT1250-2-600PXT1250-2-600P | Linear Actuator, 24 VDC, 1250 lbs, Potentiometer, 22.4'' Stroke$573.0023.61250$573.001View details
XT450-2-150XT450-2-150 | Linear Actuator, 24 VDC, 450 lbs, 5.9'' Stroke$428.005.9450$428.001View details
XT450-2-150PXT450-2-150P | Linear Actuator, 24 VDC, 450 lbs, Potentiometer, 5.9'' Stroke$553.005.9450$553.001View details
XT450-2-300XT450-2-300 | Linear Actuator, 24 VDC, 450 lbs, 11.9'' Stroke$455.0011.9450$455.001View details
XT450-2-300PXT450-2-300P | Linear Actuator, 24 VDC, 450 lbs, Potentiometer, 11.9'' Stroke$525.0011.9450$525.001View details
XT450-2-450XT450-2-450 | Linear Actuator, 24 VDC, 450 lbs, 17.7'' Stroke$508.0017.7450$508.001View details
XT450-2-450PXT450-2-450P | Linear Actuator, 24 VDC, 450 lbs, Potentiometer, 17.7'' Stroke$554.0017.7450$554.001View details
XT450-2-600XT450-2-600 | Linear Actuator, 24 VDC, 450 lbs, 23.6'' Stroke$528.0023.6450$528.001View details
XT450-2-600PXT450-2-600P | Linear Actuator, 24 VDC, 450 lbs, Potentiometer, 22.4'' Stroke$573.0023.6450$573.001View details
XT750-2-150XT750-2-150 | Linear Actuator, 24 VDC, 750 lbs, 5.9'' Stroke$440.005.9750$440.001View details
XT750-2-150PXT750-2-150P | Linear Actuator, 24 VDC, 750 lbs, Potentiometer, 5.9'' Stroke$506.005.9750$506.001View details
XT750-2-300XT750-2-300 | Linear Actuator, 24 VDC, 750 lbs, 11.9'' Stroke$469.0011.9750$469.001View details
XT750-2-300PXT750-2-300P | Linear Actuator, 24 VDC, 750 lbs, Potentiometer, 11.9'' Stroke$583.0011.9750$583.001View details
XT750-2-450XT750-2-450 | Linear Actuator, 24 VDC, 750 lbs, 17.7'' Stroke$512.0017.7750$512.001View details
XT750-2-450PXT750-2-450P | Linear Actuator, 24 VDC, 750 lbs, Potentiometer, 17.7'' Stroke$565.0017.7750$565.001View details
XT750-2-600XT750-2-600 | Linear Actuator, 24 VDC, 750 lbs, 23.6'' Stroke$542.0023.6750$542.001View details
XT750-2-600PXT750-2-600P | Linear Actuator, 24 VDC, 750 lbs, Potentiometer, 22.4'' Stroke$584.0023.6750$584.001View details

Details

Product information

Overview

Duff-Norton's XT Series linear actuators are specially designed for industrial and commercial applications. Linear Actuators can be used for opening, closing, tilting, pivoting, lifting, lowering and positioning.
Features & Benefits
Safe operation with internal limit switches to stop motion at fully retracted and fully extended positions
Suitable for Industrial Equipment, Outdoor Machinery, Off-road Vehicles
Limit Switches -Internal, Factory Preset, Non Adjustable
Keyed Translating Tube – eliminates need for restraining torque
Actuator with Manual drive override feature – allows actuator positioning without power
ETL testing to UL standards for safety assurance
IP66 Sealing Protection
CE Compliant
Suitable for Industrial Equipment
Outdoor Machinery
Off-road Vehicles
Limit Switches -Internal
Factory Preset
Non Adjustable
Actuator with Manual drive override feature – allows actuator positioning without power
