Test stand, lever-operated, 30 lbF / 150 N
The compact ES05 test stand is designed for compression testing of up to 30 lbF (150 N). Typical applications include switch contact activation testing, small spring testing, peel testing, and more.
- Free UPS Ground over $999.99
- Factory-authorised service
Recommended Accessories
3 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Model | Capacity | Load Capacity | Price | Qty | |
|---|---|---|---|---|---|---|
 ES10ES10 | Test stand, lever-operated, 100 lbF / 500 N$722.00 | ES10 | 100 lbF / 500 N | 100 lbF / 500 N | $722.00 | 1 | View details |
 ES20ES20 | Test stand, hand wheel-operated, 100 lbF / 500 N$807.50 | ES20 | 100 lbF / 500 N | 100 lbF / 500 N | $807.50 | 1 | View details |
 ES30ES30 | Test stand, hand wheel-operated, 200 lbF / 1 kN$1,159.00 | ES30 | 200 lbF / 1 kN | 200 lbF / 1 kN | $1,159.00 | 1 | View details |
Details
Product information
Overview
Mark-10 ES05
Test Stand, Lever-Operated, Compression, 30 Lb

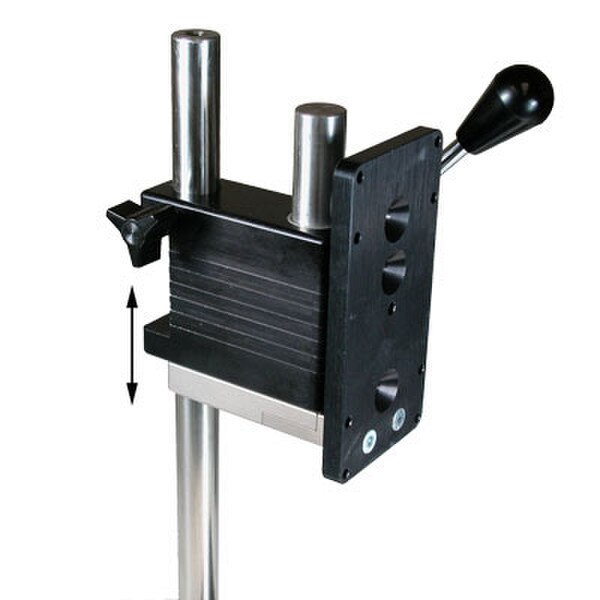

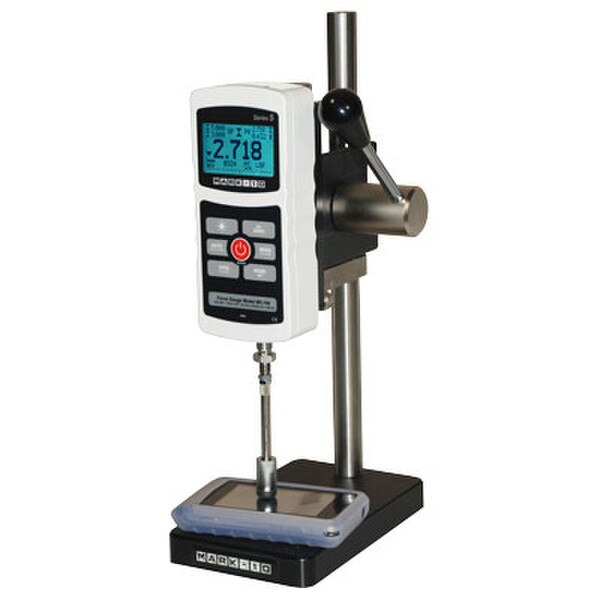

The new compact ES05 test stand is designed for compression testing of up to 30 lb (150 N). Typical applications include switch contact activation testing, small spring testing, peel testing, and more. A spring-loaded lever allows for repeatable testing with up to 1.5” (38 mm) displacement. The lever mechanism can be repositioned along the length of the column, allowing this stand to be used for various sized samples. The ES05’s small footprint makes it particularly well suited to crowded workbenches, while its low weight makes it very portable for field auditing or for quick transportation to other testing areas. Use the ES05 with Mark-10 force gauges and grips to create a complete testing solution.
| Technical Specifications | |
|---|---|
| Model | ES05 |
| Type | Manual Test Stand |
| Manufacturer | Mark-10 |
| Capacity | 30 lbF / 150 N |
| Load Capacity | 30 lbF / 150 N |
| SKU | ES05 |
| Weight Capacity (Lb) | 30 |

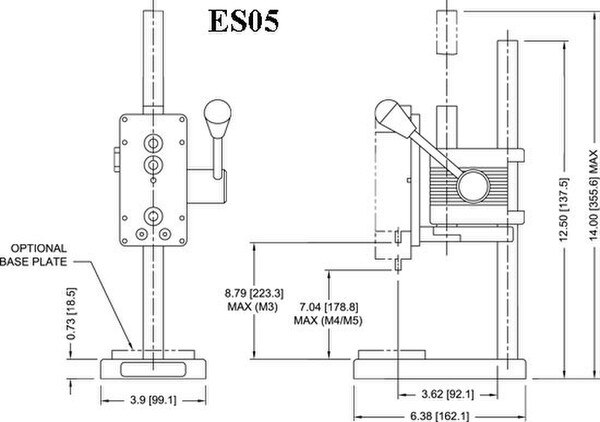

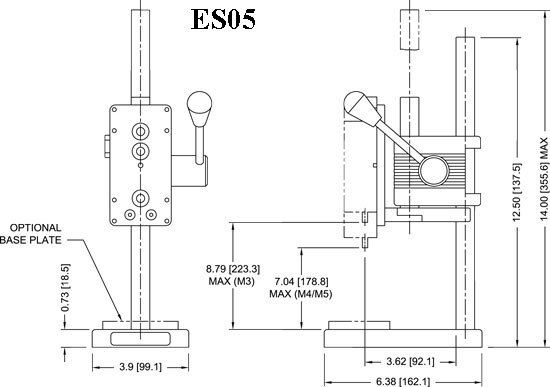

| Dimensions | 6.38 x 12.5 in |
| Travel (mm) | 38 |
| Weight (lbs) | 18 |
| Series | ES05 |
| Travel (in) | 1.5 |
| Capacity (lbs) | 30 |
| MPN | ES05 |
| Features & Benefits | |
| Compatible with all Mark-10 force gauges, accessories and grips | |
| Spring-loaded lever operation is convenient for repetitive testing requirements | |
| Mounting holes for bench mounting | |
| Compact size | |
| Compatible with all Mark-10 force gauges | |
| accessories and grips | |
