Mark-10ES10

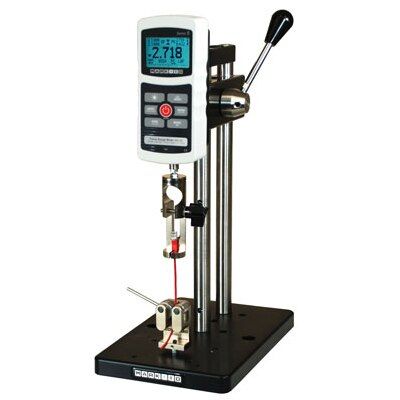

Test stand, lever-operated, 100 lbF / 500 N
Compact and economical solutions for compression and tensile testing of small samples.
$722.00List $760.00
Save $38.00Total$722.00Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
ES10 | Test stand, lever-operated, 100 lbF / 500 NES10
Total$722.00
1
Recommended Accessories
8 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 14-106814-1068 | Base plate$83.99 | $83.99 | 1 | View details |
| ES001ES001 | Dial indicator kit for ES10/ES20, 1”$175.75 | $175.75 | 1 | View details |
| ES001NIES001NI | Set of brackets for indicator, indicator not included$137.75 | $137.75 | 1 | View details |

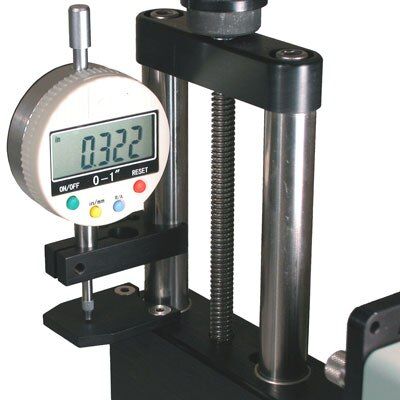

| ES002ES002 | Digital indicator kit for ES10/ES20, 1'' / 25 mm$408.50 | $408.50 | 1 | View details |
 ES05ES05 | Test stand, lever-operated, 30 lbF / 150 N$722.00 | $722.00 | 1 | View details |
 ES20ES20 | Test stand, hand wheel-operated, 100 lbF / 500 N$807.50 | $807.50 | 1 | View details |
 ES30ES30 | Test stand, hand wheel-operated, 200 lbF / 1 kN$1,159.00 | $1,159.00 | 1 | View details |
 G1039G1039 | Coupling, #10-32F/F$14.25 | $14.25 | 1 | View details |
Details
Product information
Overview
Mark-10 ES10
Test Stand, Lever-Operated, 100 Lb

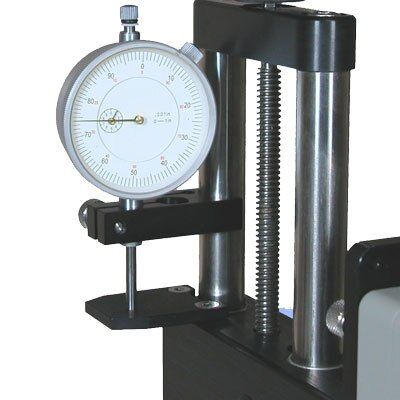

The ES10 and ES20 manual test stands are compact and economical solutions for compression and tensile testing of small samples. Choose between a lever (ES10) for quick-action testing or a hand wheel (ES20) for more precise testing with greater consistency in testing results. An optional dial indicator kit displays up to 1" of displacement. Use these stands with force gauges and grips to create complete and economical testing systems.
Features
- Small size
- Compatible with all Mark-10 force gauges, accessories and grips
- Mounting holes for bench mounting

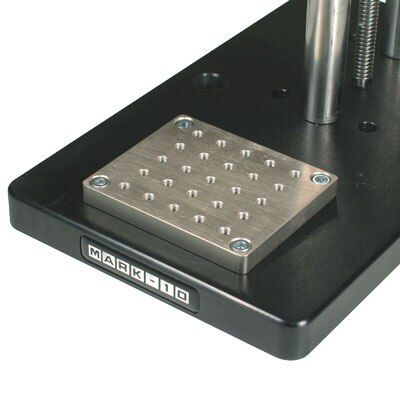

- Large base plate with 5 #10-32 UNF holes for fixture mounting
- Competitor force gauge mounting kits available
The ES10 test stands include the following accessories:
(1) Allen wrench set
(1) Lever
(4) Thumb screw for force gauge
(1) Resource CD
| Technical Specifications | |
|---|---|
| Model | ES10 |
| Type | Manual Test Stand |
| Manufacturer | Mark-10 |
| Capacity | 100 lbF / 500 N |
| Load Capacity | 100 lbF / 500 N |
| SKU | ES10 |
| Weight Capacity (Lb) | 100 |

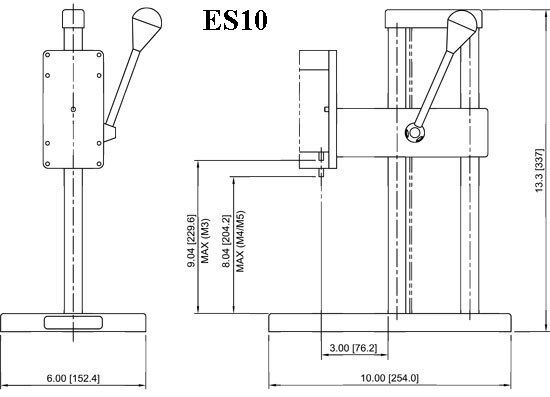

| Dimensions | 10 x 13.3 in |
| Travel (mm) | 229 |
| Weight (lbs) | 28 |
| Series | ES10 |
| Travel (in) | 9 |
| Capacity (lbs) | 100 |
| MPN | ES10 |
| Features & Benefits | |
| lever-operated | |
| Compatible with all Mark-10 force gauges, accessories and grips | |
| Mounting holes for bench mounting | |
| Compact size | |
| Compatible with all Mark-10 force gauges | |
| accessories and grips | |
