Ingersoll Rand17RB045

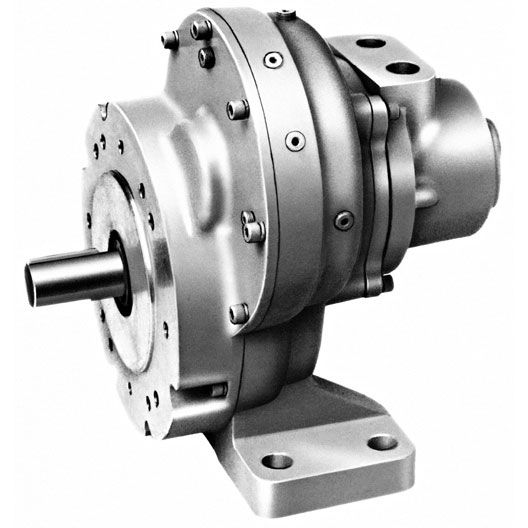

2.2 Hp, 121 RPM, Spur Gear Multi Vane Air Motor
The 17 Series has a spun gear vane motor equipped for high torque applications. It also features increased side loading capabilities and instant starting and reversing.
$5,535.00List $7,200.00
Save $1,665.00Total$5,535.00Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
17RB045 | 2.2 Hp, 121 RPM, Spur Gear Multi Vane Air Motor17RB045
Total$5,535.00
1
Details
Product information
Overview
Ingersoll Rand 17RB045
2.2 Hp, 121 Rpm, Spur Gear Multi Vane Air Motor
17RA and 17RB series, spur gear, Multi-vane Air Motors. 2.20 hp to 2.30 hp (1.64 to 1.72 Kw). 36 rpm to 950 rpm with adjustability through air controls. Ideal for low rpm / high torque applications.
Features:- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150 deg F and some motors up to 300 deg F with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Air Inlet Size | 3/8" NPT |
| Air Pressure (PSI) | 90 |
| Drive Size | 1/1/2002 |
| Max Torque (ft-lb) | 312 |
| Max Torque (in-lb) | 3744 |
| Max Torque (Nm) | 423 |
| Free Speed (RPM) | 121 |
| Drive Type | Round Keyed |
| Exhaust Direction | Side |
| Motor Type | Rotary Vane |
| Power (HP) | 2.2 |
| Weight (lbs) | 72 |
| Weight (kg) | 32.66 |
| Housing Material | Steel Motor, Aluminum Gear Housing |
| MPN | 17RB045 |
| Features & Benefits | |
| The 17 Series can easily withstand harsh environments. It’s a motor you can count on. | |
| With the ability to service your tools easily, you won’t have to worry about prolonged downtime and can focus on the task at hand. | |
