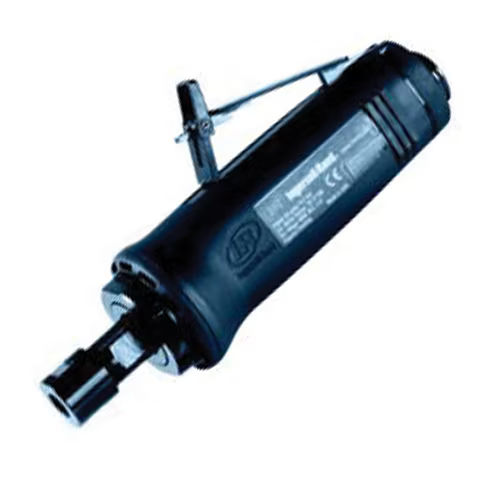

G3 Straight Grinders
When you choose the G3 Series Type 1 Grinder, you’ll benefit from a powerful vane motor, front and rear exhaust, incredible vibration dampening, and a locking throttle lever that increases safety.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
8 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Details
Product information
Overview
When the biggest job demands the most power use the G3-Series performing at an impressive 1.35 hp (1.0 kW). The G3-Series features an internal, contamination-free air controller to maintain tool speed and maximize material removal rates. Ideal for industrial-duty material removal, an ergonomic D-shaped handle fits better in your hand with low noise and vibration.
- Internal contamination-free air controller helps maintain tool speed to maximize material removal rate
- Ideal for industrial-duty material removal with burrs, grinding wheels and coated abrasives
- One-nut access for all motor servicing
- Ergonomic D-Shaped handle fits better in the operator's hand
- G2 = Power hp (G1- 0.4 , G2- 0.8 , G3- 1.35)
- A = Model Config. (A- Angle Grinder, E- Ext. Angle Grinder Small, L- Ext. Angle Grinder Large, H- Horrizontal No Nxtension, X- Extended Hor. Grinder, XX- Double Bearing Ext. Horr., S- 2” Extension )
- 120 = Free Speed (12,000 rpm)
- R = Exhaust Direction (R - rear, F - front, P - piped away)
- P = Output Type (P - Type 27, H - Type 1, G - Collet Tools, S - Sander Arbor)
- 10 = Output Size -Type 27 Tools (6 - 3/8”-24 thread arbor English, 7 - 3/8”-24 thread arbor Metric [for 100mm, 125mm, or 150mm x 22.2mm], or 10 - 5/8”-11 thread arbor English,) Type 1 Tools (6 - 3/8"-24 thread arbor English) Collet Tools (4 - 1/4" collet) Sanders (4 - 1/4"-20 thread, 418 - 1/4" x 18" , 812 - 1/2" x 12", 818 - 1/2" x 18")
- 45 = Guard Sizes (3- 3” guard, 4- 4” guard, 45- 4.5” guard, 5- 5” guard, 6- 6” guard)
| Features & Benefits | |
|---|---|
| Superior power-to-weight ratio | |
| Easy handling | |
| Able to withstand harsh environments and repeated drops |
