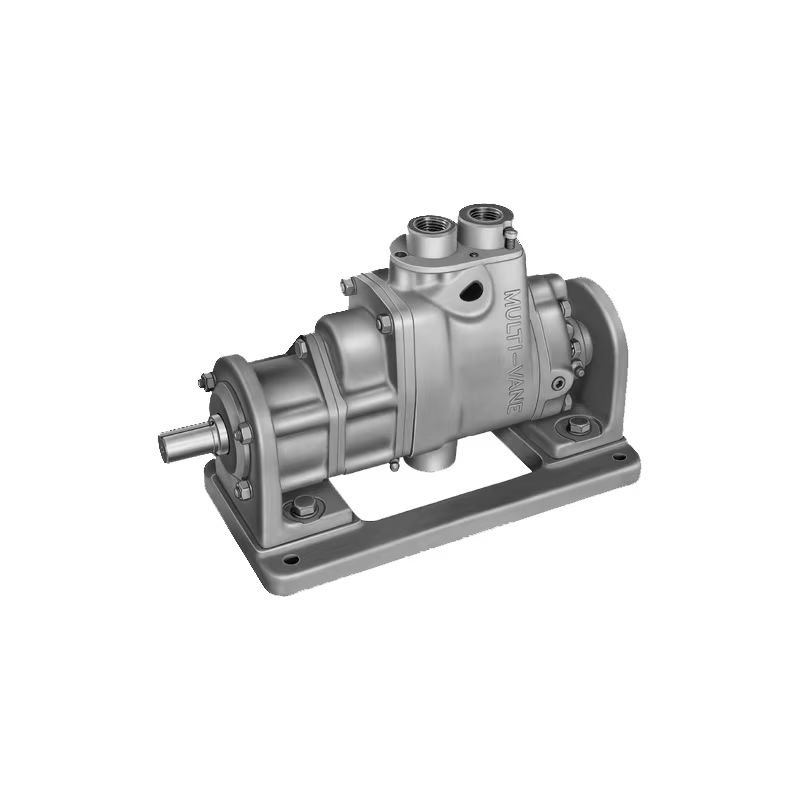

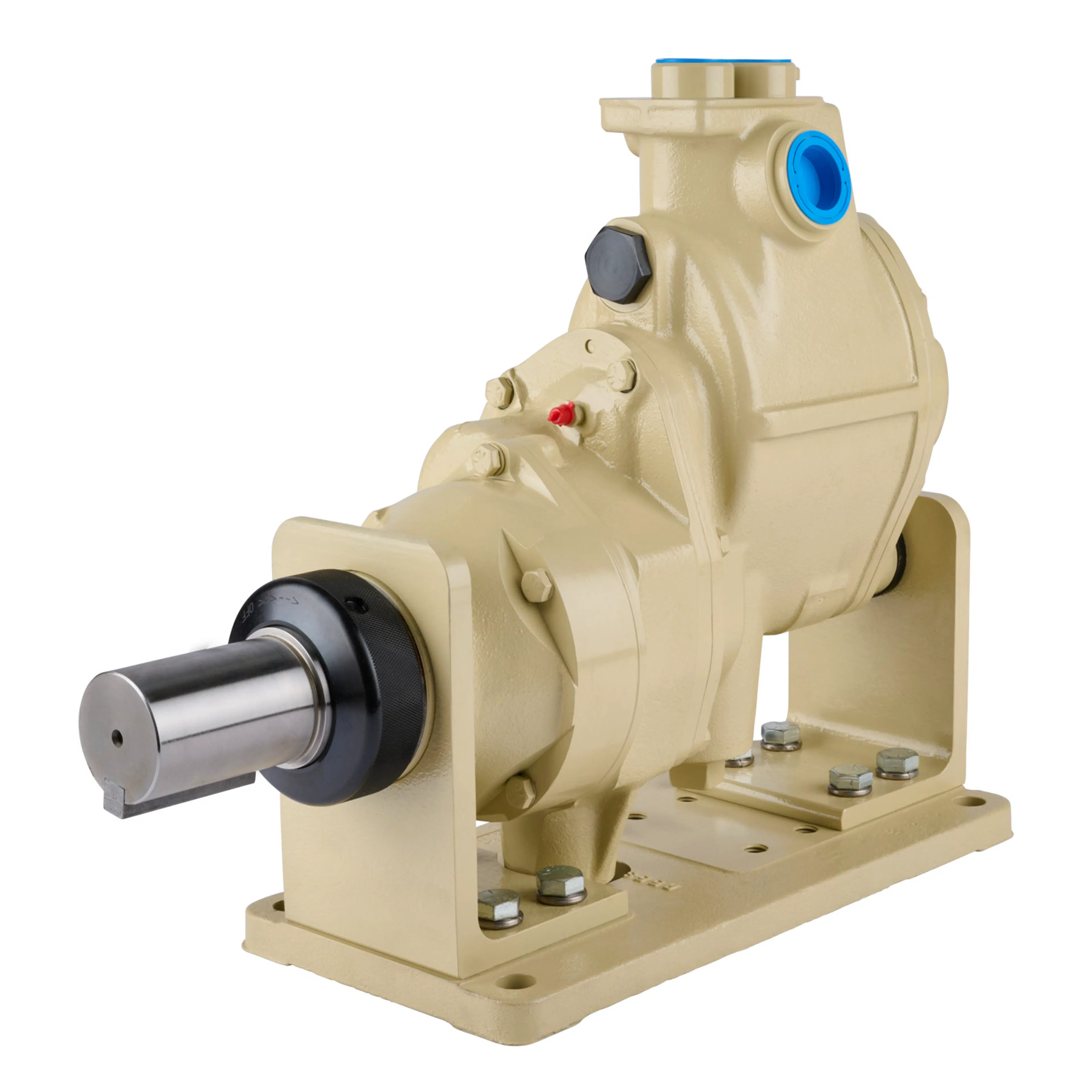

Governed Air Motors
551N and 22N Series, Multi-vane Air Motor. 5.60 hp (4.18 Kw). 77 to 120 rpm with built in governor for maximum speed control. Torque adjustability through air controls.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
2 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Air Inlet Size | Drive Size | Max Torque (ft-lb) | Price | Qty | |
|---|---|---|---|---|---|---|
 22N51-W/RC22N51-W/RC | Multi-Vane Air Motor, 1.75 hp, 89.5 Nm stall, reversible$15,759.38 | 1/2" NPT | 3/4" | 66 | $15,759.38 | 1 | View details |
 551SM51-W/RC551SM51-W/RC | Multi-Vane Air Motor, 5.6 hp, 739 Nm stall, reversible$23,062.50 | 3/4" NPT | 2 | 545 | $23,062.50 | 1 | View details |
Details
Product information
Overview
551N and 22N Series, Multi-vane Air Motor. 5.60 hp (4.18 Kw). 77 to 120 rpm with built in governor for maximum speed control. Torque adjustability through air controls.
- Governed motors for improved speed control
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
| Features & Benefits | |
|---|---|
| Rated Power: 1.75 - 5.6 hp | |
| Max Free Speed: 77 - 280 rpm | |
| 1 Year Warranty |
