KX Chain Hoists

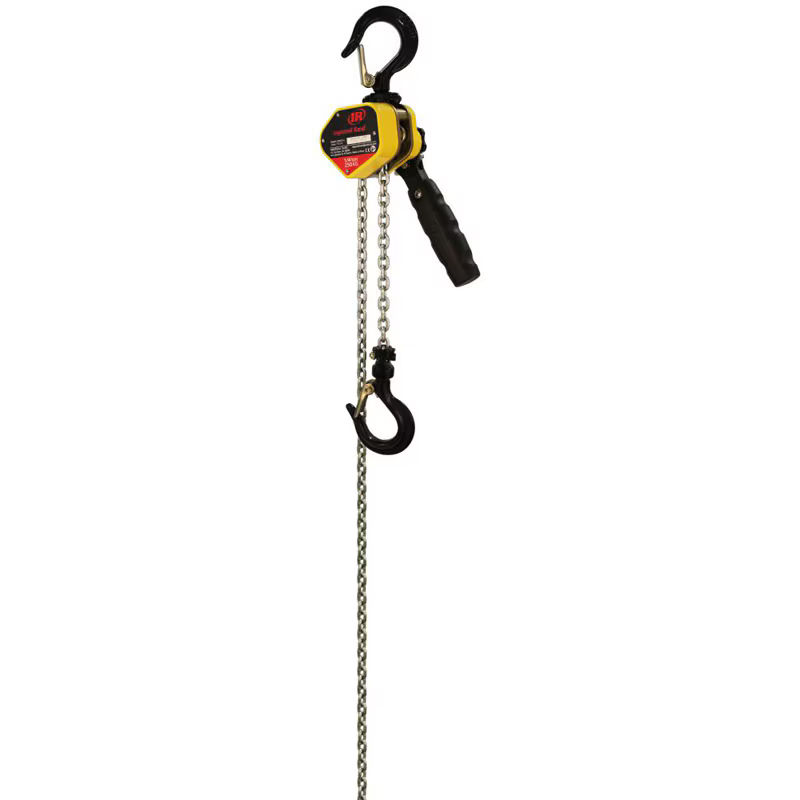

1/4 - 3/4 metric ton Lifting Capacity Ingersoll Rand SideKick Series mini lever and manual hoists are engineered to fit into the smallest of spaces, to go where you go to get the job done.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
4 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Capacity | Lift Height | Headroom | Price | Qty | |
|---|---|---|---|---|---|---|
 KX050-10KX050-10 | Lever Chain Hoist, 1100 lbs, 10 ft | 1100 | 10 | 9.8 | 1 | View details | |
| KX050-5KX050-5 | Lever Chain Hoist, 1100 lbs, 5 ft | 1100 | 5 | 9.8 | 1 | View details | |
 KX075-10KX075-10 | Lever Chain Hoist, 1650 lbs, 10 ft | 1650 | 10 | 10.2 | 1 | View details | |
| KX075-5KX075-5 | Lever Chain Hoist, 1650 lbs, 5 ft | 1650 | 5 | 10.2 | 1 | View details |
Details
Product information
Overview
1/4 - 3/4 metric ton Lifting Capacity
Ingersoll Rand SideKick Series mini lever and manual hoists are engineered to fit into the smallest of spaces, to go where you go to get the job done. Don’t let the size fool you; with grade 80 chain, long life disc brakes and all steel construction the SideKick hoist will be by your side year after year to make your job easier.
Features:
- Ultra-compact to fit into the smallest of spaces
- Grade 80 zinc plated or grade 100 Electro-plated load chain exceptional corrosion resistance for increased durability
- Heavy duty carrying bag with all KX lever hoists, standard
- Double pawl, disc brake system for a highly dependable brake system
- Heat treated steel side plates for increased durability
| Features & Benefits | |
|---|---|
| Capacity: 551 - 1650 lbs | |
| 1 Chain Fall | |
| 5 or 10 ft Chain Length |
