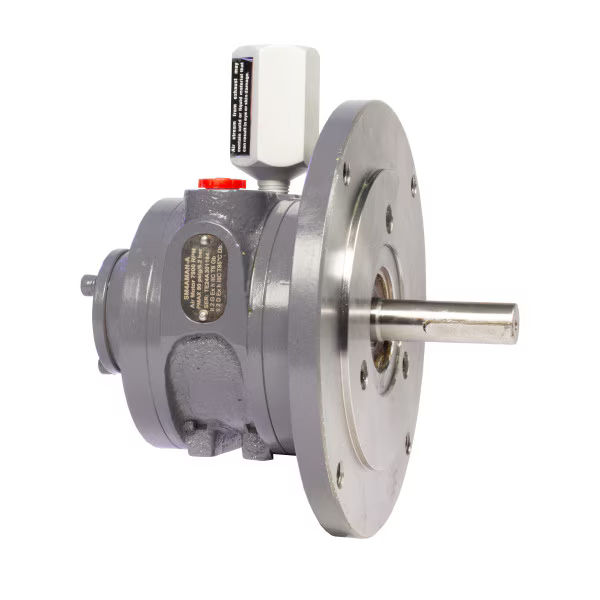

Ingersoll Rand SM Series Lube Free Air Motors image 1

Click the image to zoom

SM Series Lube Free Air Motors

Reduce the need for frequent maintenance and deliver maximum horsepower with the compact SM series Lube Free Air Motor.

Models and pricing below

Documents1 file

PDFIngersoll Rand SM Series Lube Free Air Motors Specifications (PDF)Open

Models Available

10 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	Drive Size	Max Torque (ft-lb)	Max Torque (in-lb)	Price	Qty
SM1AMA-ASM1AMA-A \| Lube-Free Multi-Vane Air Motor, 3/8 Round Keyless, 0.45HP, 0.4ft-lb, 15000 RPM, Foot/Face/Hub Mount$261.38	3/8"	0.6	6.8	$261.38	1	View details
SM1AMAL-ASM1AMAL-A \| Lube-Free Multi-Vane Air Motor, 3/8 Round Keyless, 0.45HP, 0.4ft-lb, 15000 RPM, Left-Hand Bias, Foot/Face/Hub Mount$288.28	3/8"	0.6	6.8	$288.28	1	View details
SM2AMAN-ASM2AMAN-A \| Lube-Free Multi-Vane Air Motor, 5/8 Round Keyed, 0.9HP, 1.7ft-lb, 8000 RPM, NEMA$345.94	5/8"	2.3	27	$345.94	1	View details
SM2AMC-ASM2AMC-A \| Lube-Free Multi-Vane Air Motor, 1/2 Round Flat on Shaft, 0.9HP, 1.7ft-lb, 8000 RPM, Foot/Face Mount$345.94	1/2"	2.3	27	$345.94	1	View details
SM4AMAN-ASM4AMAN-A \| Lube-Free Multi-Vane Air Motor, 5/8 Round Keyed, 1.5HP, 2.6ft-lb, 7900 RPM, NEMA$369.00	5/8"	4.1	50	$369.00	1	View details
SM4AMB-ASM4AMB-A \| Lube-Free Multi-Vane Air Motor, 1/2 Round Woodruff Key, 1.5HP, 2.6ft-lb, 7900 RPM, Foot/Face Mount$372.84	1/2"	4.1	50	$372.84	1	View details
SM6AMA-ASM6AMA-A \| Lube-Free Multi-Vane Air Motor, 5/8 Round Keyed, 3.6HP, 5.3ft-lb, 7900 RPM, Foot/Face Mount$461.25	5/8"	8.7	104	$461.25	1	View details
SM6AMAN-ASM6AMAN-A \| Lube-Free Multi-Vane Air Motor, 5/8 Round Keyed, 5.3ft-lb, 3.6HP, 7900 RPM, NEMA$480.46	5/8"	8.7	104	$480.46	1	View details
SM8AMA-ASM8AMA-A \| Lube-Free Multi-Vane Air Motor, 3/4 Round Keyed, 4.8HP, 10ft-lb, 7000 RPM, Foot/Face Mount$565.03	3/4"	14	168	$565.03	1	View details
SM8AMAN-ASM8AMAN-A \| Lube-Free Multi-Vane Air Motor, 7/8 Round Keyed, 4.8HP, 10ft-lb, 7000 RPM, NEMA$664.96	8-Jul	14	168	$664.96	1	View details

Overview

The Ingersoll Rand SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.

Features & Benefits
Rated Power: Up to 4.8 hp
Stall Torque: Up to 14 ft lbs
1 Year Warranty
