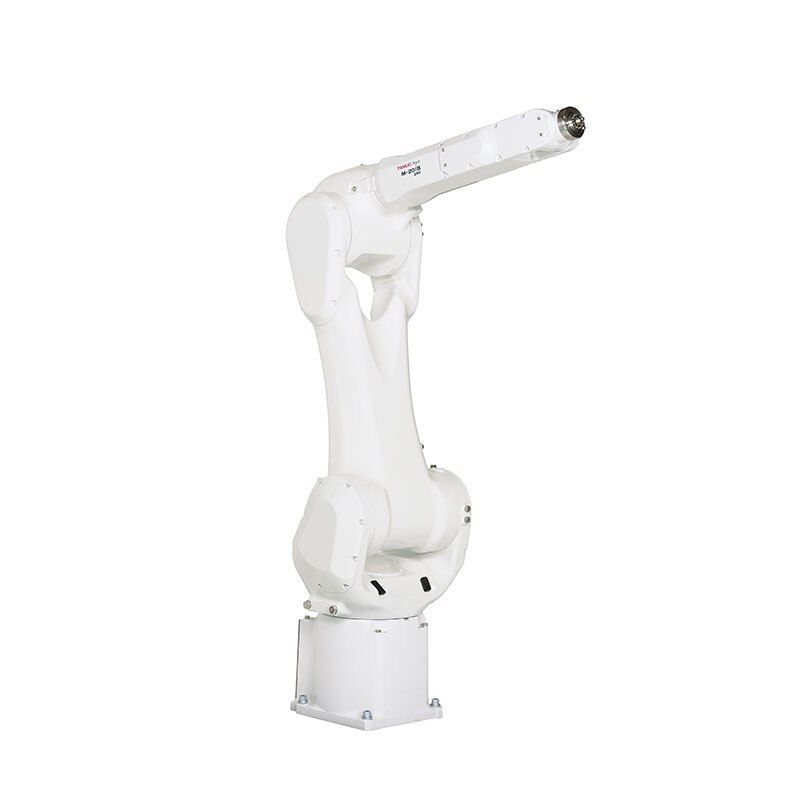

FANUCM-20iB/25C
6 Axis, 25 kg Articulated clean room, food grade Robot, 1853 mm reach
The FANUC M-20iB/25C comes in special white paint indicating its resistance against cleaning agents and used in daily wash down operations typical for cleanroom environments such as 2nd-Food areas or the medical, optical, pharmaceutical or electronics industry.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
M-20iB/25C | 6 Axis, 25 kg Articulated clean room, food grade Robot, 1853 mm reachM-20iB/25C
Price on request
Recommended Accessories
1 itemAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 M-20iB/25M-20iB/25 | 6 Axis, 25 kg Articulated general-purpose Robot, 1853 mm reach | 1 | View details |
Details
Product information
Overview
FANUC M-20iB/25C
6 Axis, 25 kg Articulated clean room, food grade Robot, 1853 mm reach
The M-20iB/25 is a small material handling robot with a payload capacity of 25KG.
Features:
- Cables and motors are not exposed with an IP67 sealed structure adaptable to various environments.
- Cables are tightly routed through the arm with a sealed user interface and low profile connectors
- The slim arm and low profile design allows for minimal interference with peripheral devices.
- Optional advanced Intelligent functions such as iRVision and force sensing are available.
| Technical Specifications | |
|---|---|
| Application | Assembly, Load/Transfer, Dispensing, Pick/Pack/Palletizing, Material Removal |
| Model | M-20iB/25C |
| Type | Articulated |
| Manufacturer | FANUC |
| SKU | M-20iB/25C |
| Reach | 1853 mm |
| Installation | Floor, upside-down, wall and angle mount |
| No. of Axis | 6 |
| Repeatability | 0.02 mm |
| Payload | 25 kg |
| Weight (kg) | 210 |
| MPN | M-20iB/25C |
| Features & Benefits | |
| Reaches high flexibility levels, adding versatility to its ability to perform applications within compact cells | |
| Despite its cleanroom features and independent of the environment, the M-20iB/25C does not fall short of performing a range of different applications. | |
| IP67 Water and dust proof | |
| fully encapsulated to IP67 standard, making them ideally suited to wet, dirty and harsh processes such as automatic deburring. | |
| Reaches high flexibility levels, adding versatility to its ability to perform applications within compact cells,Despite its cleanroom features and independent of the environment, the M-20iB/25C does not fall short of performing a range of different applications. | |
| IP67 Water and dust proof,fully encapsulated to IP67 standard, making them ideally suited to wet, dirty and harsh processes such as automatic deburring. | |
