FANUC M-20 Articulated Robots
FANUC's industry leader in payload, reach and axis speed, the M-20 is strong yet lightweight. This 6-axis robot's innovative design incorporates the benefits of a hollow upper arm without compromising performance.
Narrow By
6 Products
SKU: M-20iB/25
FANUC Robotics M-20iB/25 6 Axis, 25 kg Articulated general-purpose Robot, 1853 mm reach
The M-20iB/25 is the first in a new generation of FANUC M-20iB robots. Combining a lightweight hollow upper arm and wrist with advanced servo technology, the M-20iB series has been designed to achieve faster cycles and increased throughput on a range of manufacturing applications.
- Ideal for multi-material handling, the M-20 makes a great choice for tasks involving medium payloads
- Compared to the previous M-20iA model, payload has increased from 20 kg to 25 kg and axis speeds gone up by 21 percent.
- NO exposed cables and motors for minimal interference and maximum reliability.
- fully encapsulated to IP67 standard, making them ideally suited to wet, dirty and harsh processes such as automatic deburring.
SKU: M-20iB/25C
FANUC M-20iB/25C 6 Axis, 25 kg Articulated clean room, food grade Robot, 1853 mm reach
The FANUC M-20iB/25C comes in special white paint indicating its resistance against cleaning agents and used in daily wash down operations typical for cleanroom environments such as 2nd-Food areas or the medical, optical, pharmaceutical or electronics industry.
- Reaches high flexibility levels, adding versatility to its ability to perform applications within compact cells
- Despite its cleanroom features and independent of the environment, the M-20iB/25C does not fall short of performing a range of different applications.
- IP67 Water and dust proof
- fully encapsulated to IP67 standard, making them ideally suited to wet, dirty and harsh processes such as automatic deburring.
SKU: M-20iB/35S

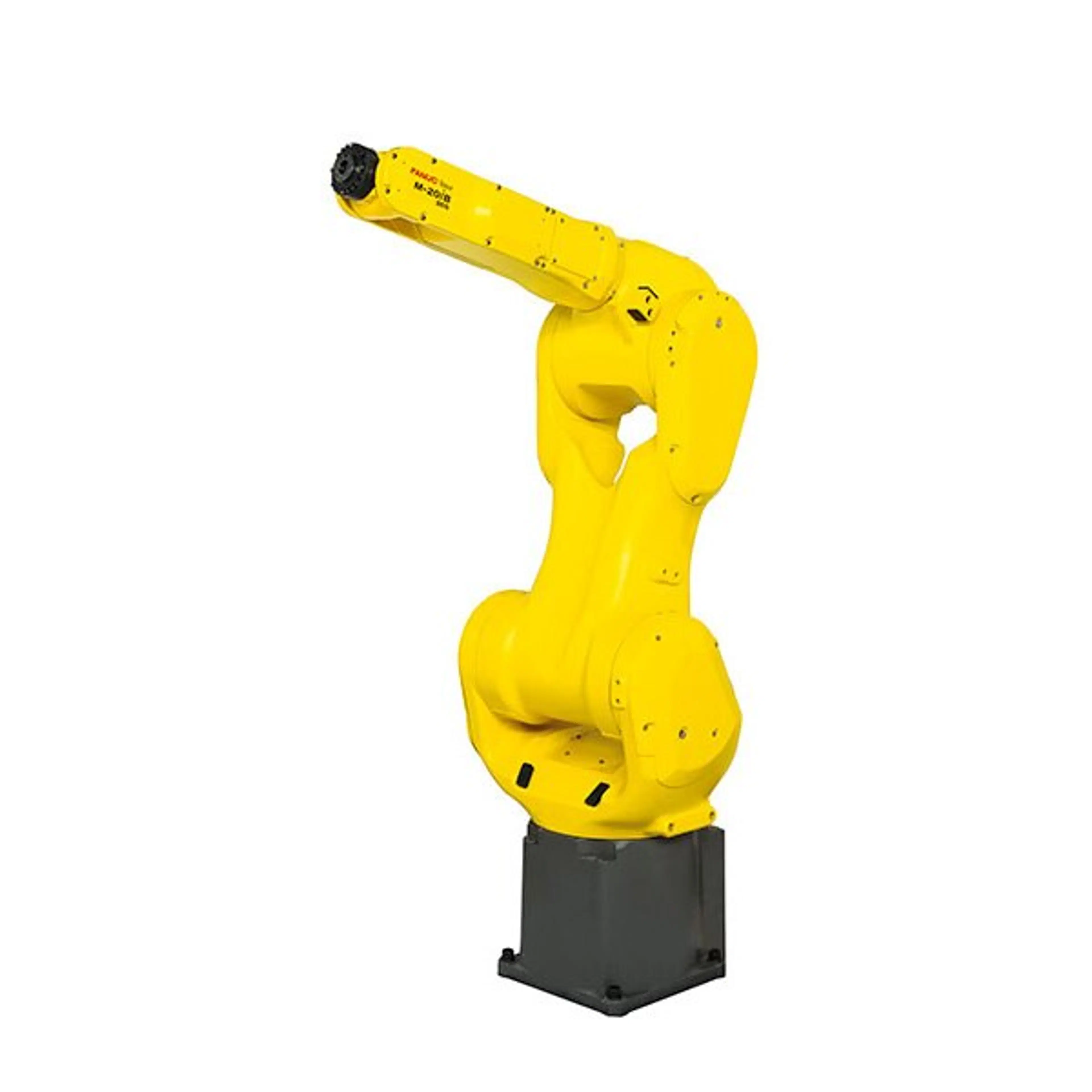

FANUC M-20iB/35S Articulated Robot, 35 kg, 1445 mm, 6 axes
Equipped with a lightweight upper arm and inline wrist, and weighing just 205 kg, the M-20iB/35S delivers high inertia and lifts a full 35 kg.
- Compact design and narrow arm, makes it ideal for numerous high payload machine tending and loading applications in a small footprint.
- The M-20iB/35's slim arm contains a user interface and has been designed not to interfere with the peripheral devices
- IP67 standard, able to be used in wet, dirty and harsh processes such as automatic deburring.
SKU: M-20iD/12L

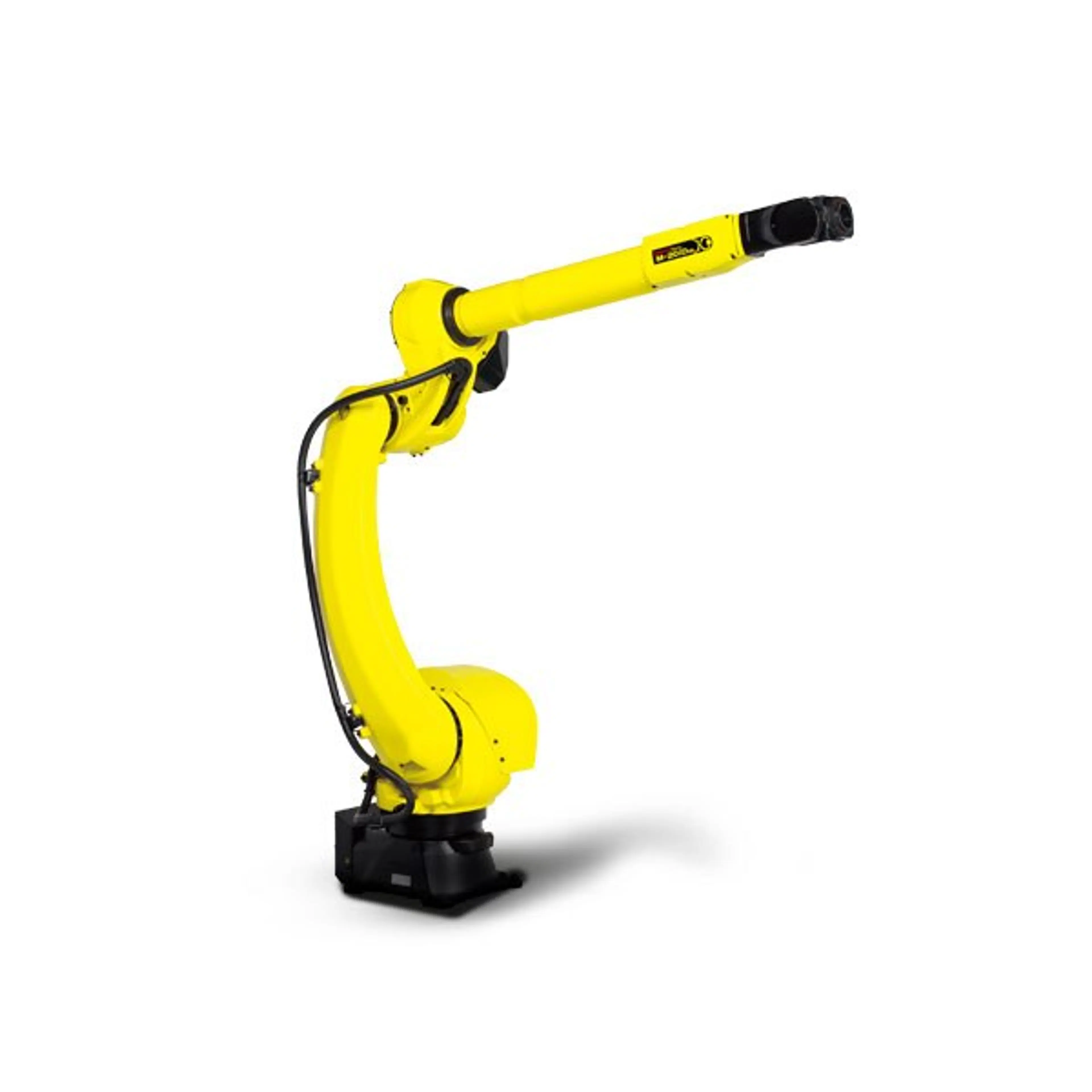

FANUC M-20iD/12L Articulated Robot, 12 kg, 2272 mm, 6 axes
Designed specifically for handling applications, this model features outstanding axis speeds and ultimate precision within its class.
- Can handle large parts thanks to its very long horizontal stroke.
- To prevent the risk of snagging and cable wear, all cables can be routed through the robot’s large 57 mm diameter hollow wrist and hollow arm.
SKU: M-20iD/25

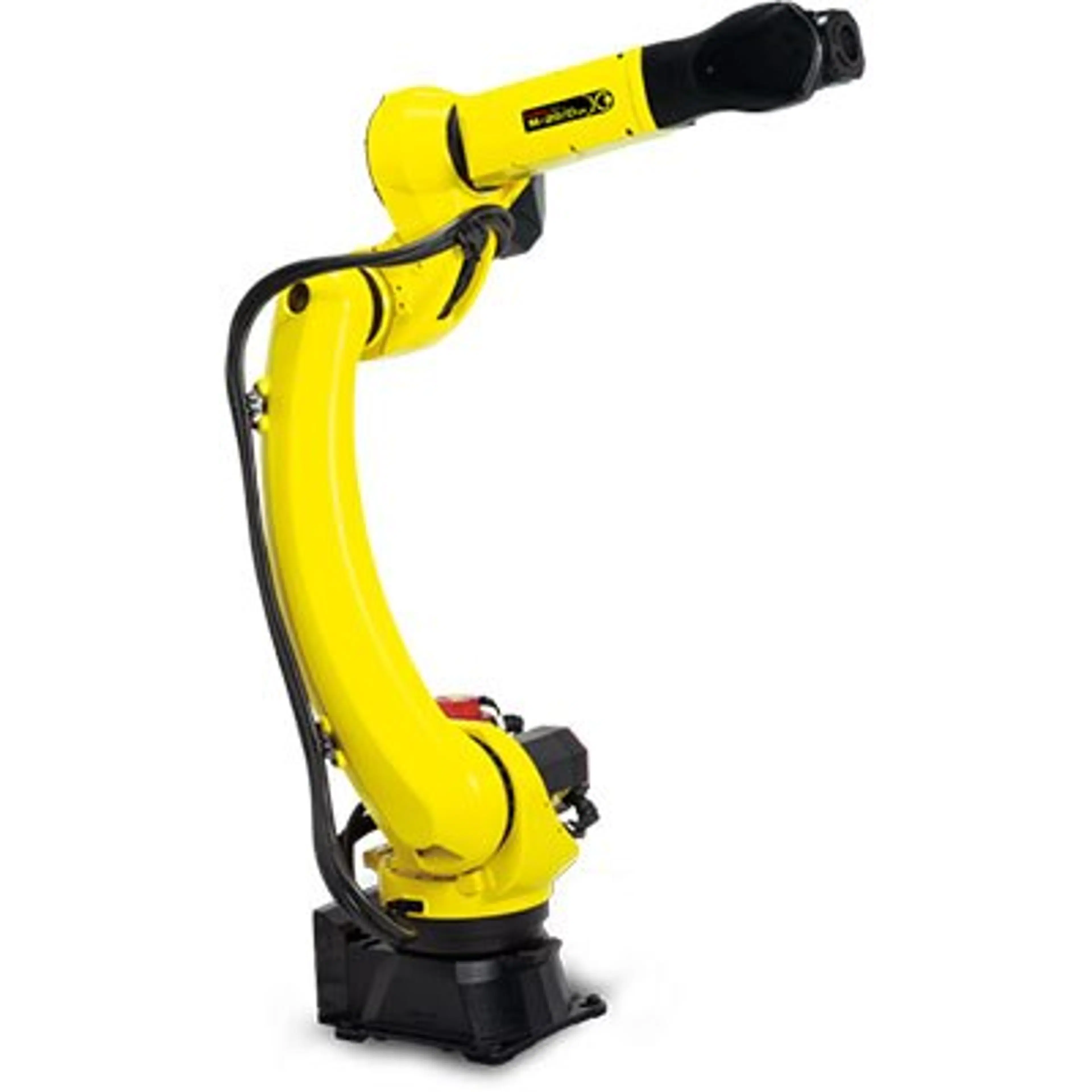

FANUC M-20iD/25 Articulated Robot, 25 kg, 1831 mm, 6 axes
Offering high performance in a small footprint, the FANUC M-20iD/25 is ideally suited to loading and unloading machines as well as parts handling and positioning in crowded factory environments.
- For best access, it features a compact arm and wrist and, thanks to its new improved design and drive train, offers significantly higher axis speeds and motion performance.
- With an increased active stroke of 1831 mm, it offers a generous working envelope, with better rigidity translating to improved repeatability of ± 0.02 mm.
- To prevent snagging and improve reliability, cable routing is internal.
- Easy Installation, low maitenance costs
SKU: M-20iD/35

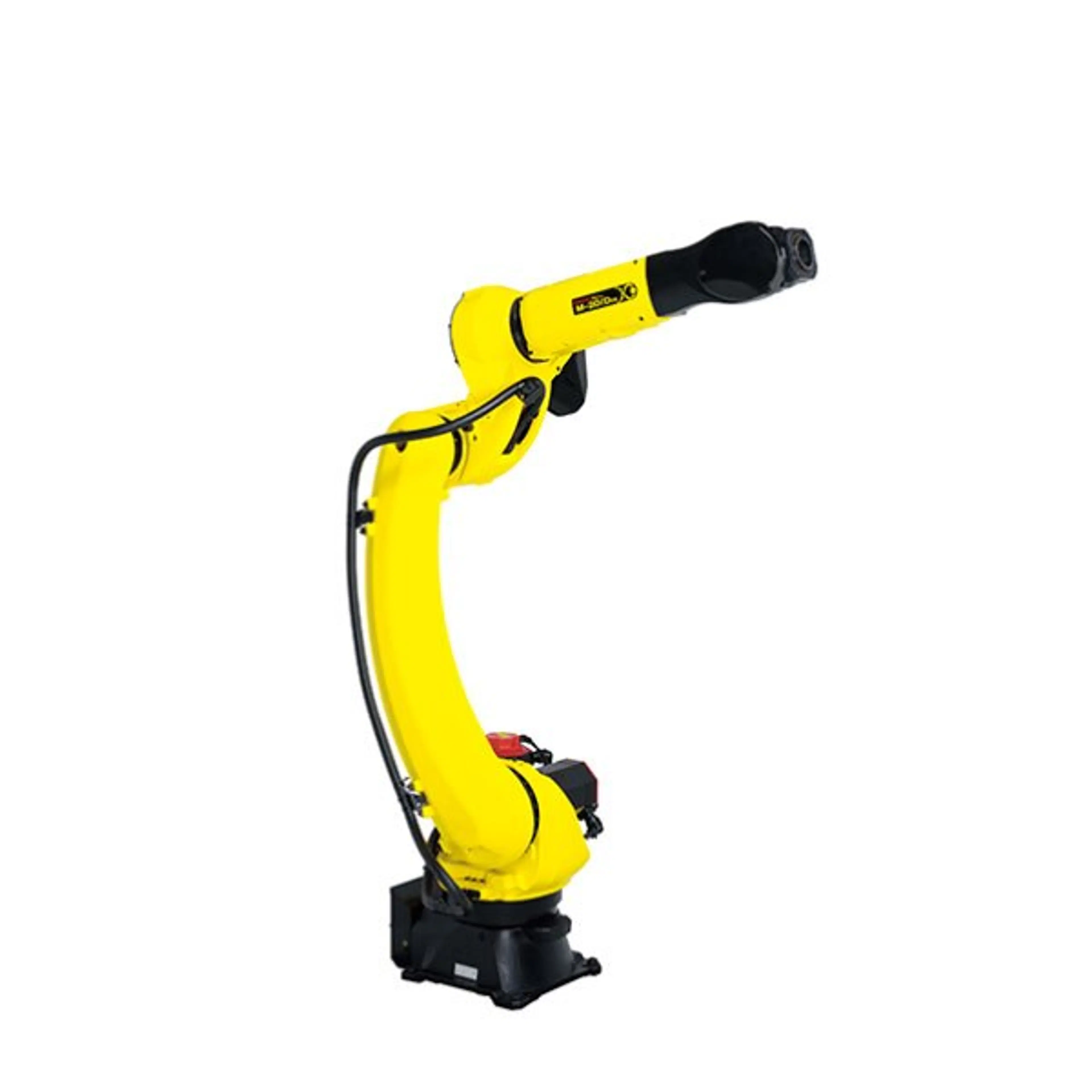

FANUC M-20iD/35 Articulated Robot, 35 kg, 1831 mm, 6 axes
Fully integrated cable management system
- All cables can be routed through the robot’s large 57 mm diameter hollow wrist and hollow arm
- IP67 standard, able to be used in wet, dirty and harsh processes such as automatic deburring.
