JBCMNE-A
Nitrogen Regulator
MNE-A | Nitrogen Regulator
$1,150.00
Total$1,150.00Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
MNE-A | Nitrogen RegulatorMNE-A
Total$1,150.00
1
Recommended Accessories
3 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Voltage | Dimensions - | Weight - lbs | Price | Qty | |
|---|---|---|---|---|---|---|
 DME-1ADME-1A | 120V 4 tool Control Unit$1,770.00 | 120V;"Input Fuse=6A | 148 x 120 x 232 | 10.08 | $1,770.00 | 1 | View details |
 GN-AGN-A | Nitrogen Generator Module$3,500.00 | — | 85 x 90 x 355 | 4.4 | $3,500.00 | 1 | View details |
 KNE-AKNE-A | Nitrogen kit$1,232.03 | 24V;"Weight - lbs=8.18 | — | — | $1,232.03 | 1 | View details |
Details
Product information
Overview

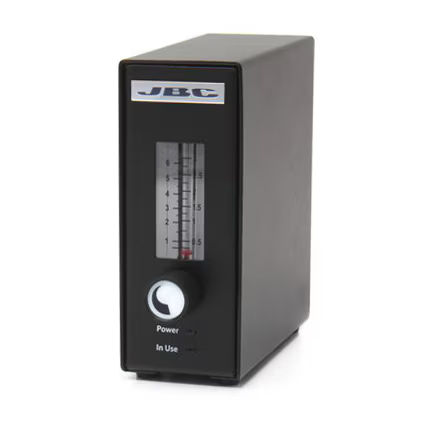

JBC MNE-A
Nitrogen flow regulator for DDE & DME
Nitrogen improves the quality of any solder joint as it provides extra heat and helps prevent tip oxidation.
The MNE-A regulates nitrogen flow to the soldering tip in order to optimize consumption.
It automatically activates the flow when you remove the T245-NA handle from the stand. The flow stops when the tool is placed back and the tip temperature drops to the sleep mode.
It requires the GN-A generator or an available nitrogen supply at the operator´s bench.
The MNE-A can be joined to any port of the DDE & DME control units and has the possibility to be controlled by the P-005 Pedal.
| Technical Specifications | |
|---|---|
| Permissible ambient temperature - celsius | 10 - 40 |
| Voltage | 24V;"Dimensions -=50 x 120 x 130 |
| Weight - lbs | 2.51 |
| ESD Compliant | Yes |
| MPN | MNE-A |
