Electric Desoldering Module
MS-A | Electric Desoldering Module
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
5 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Voltage | Dimensions - | Weight - lbs | Price | Qty | |
|---|---|---|---|---|---|---|

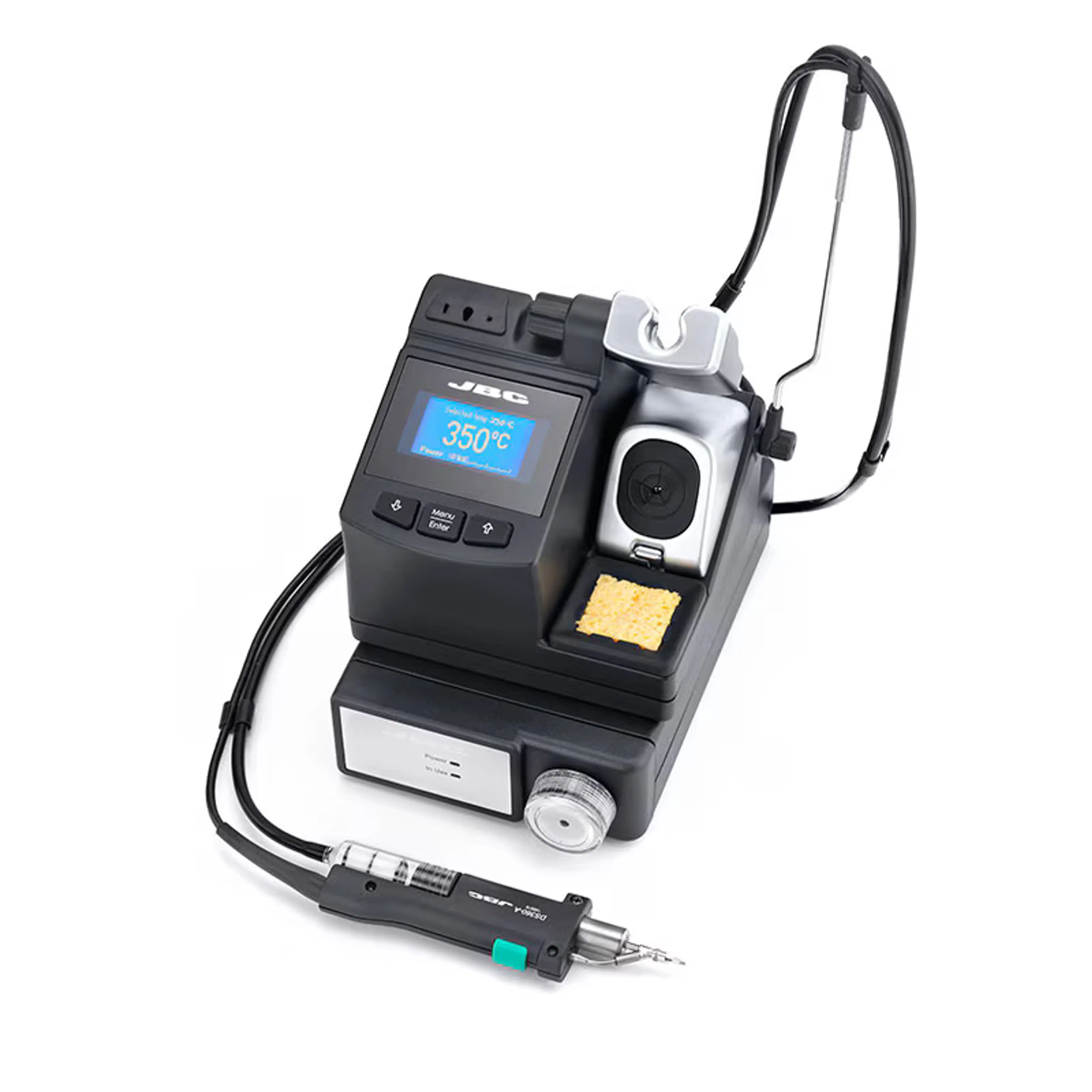

 CS-1ECS-1E | 120V Micro Desoldering station with Electric Pump$1,595.99 | 120V;"Input Fuse=2A | 150 x 175 x 145 | 8.82 | $1,595.99 | 1 | View details |
| CS-2ECS-2E | Desoldering Station w/ Electric Pump, 230V, 9 slpm$1,595.99 | 230V;"Input Fuse=1A | 150 x 175 x 145 | 8.82 | $1,595.99 | 1 | View details |
| CS-9ECS-9E | Desoldering Station w/ Electric Pump, 100V, 9 slpm$1,595.99 | 100V;"Input Fuse=2A | 150 x 175 x 145 | 8.82 | $1,595.99 | 1 | View details |

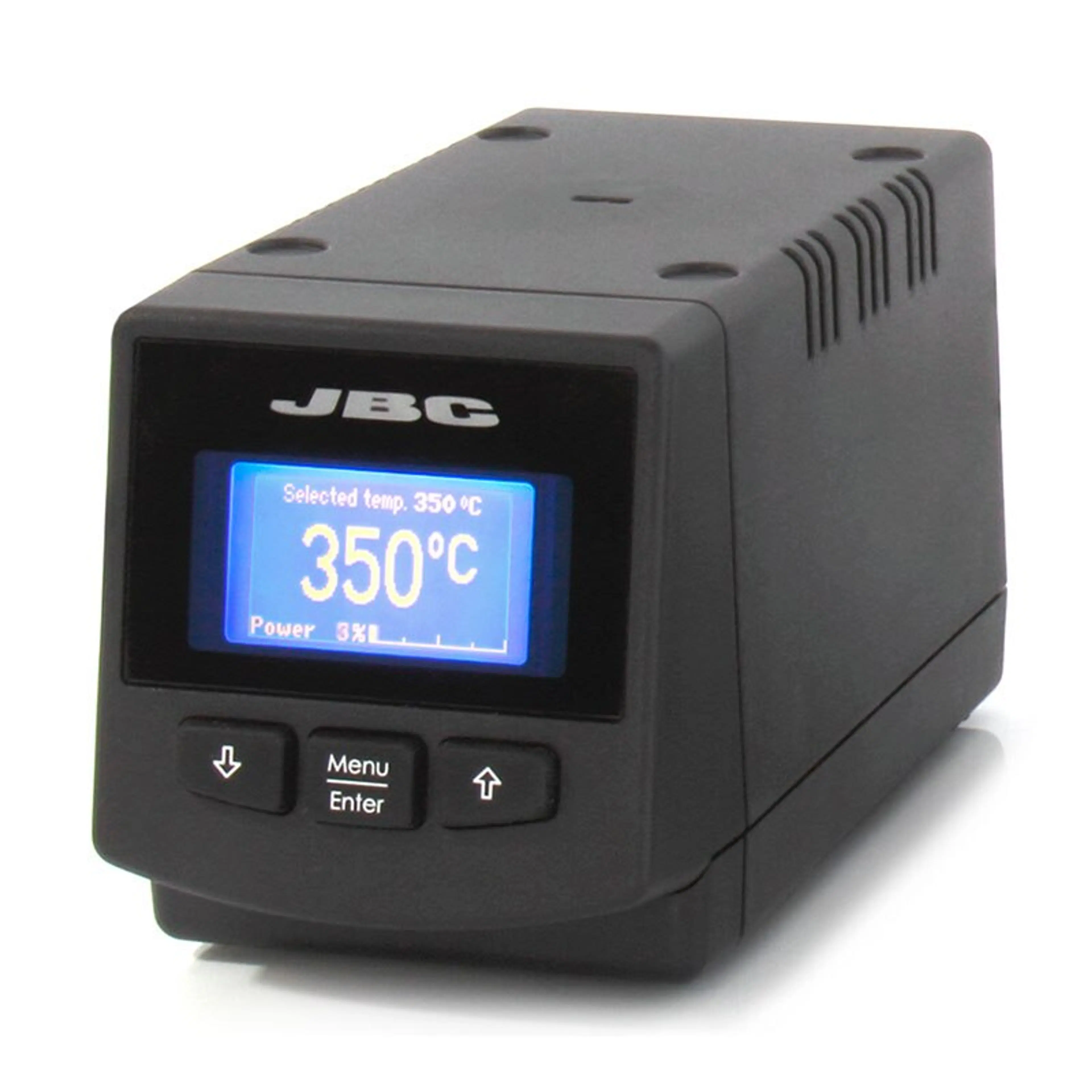

 DI-1DDI-1D | One-Tool Control Unit 120V$850.00 | 120V;"Input Fuse=2A | 90 x 105 x 180 | 4.74 | $850.00 | 1 | View details |
| DI-2DDI-2D | One-Tool Control Unit 230V$850.00 | 230V;"Input Fuse=1A | 90 x 105 x 180 | 4.74 | $850.00 | 1 | View details |
Details
Product information
Overview

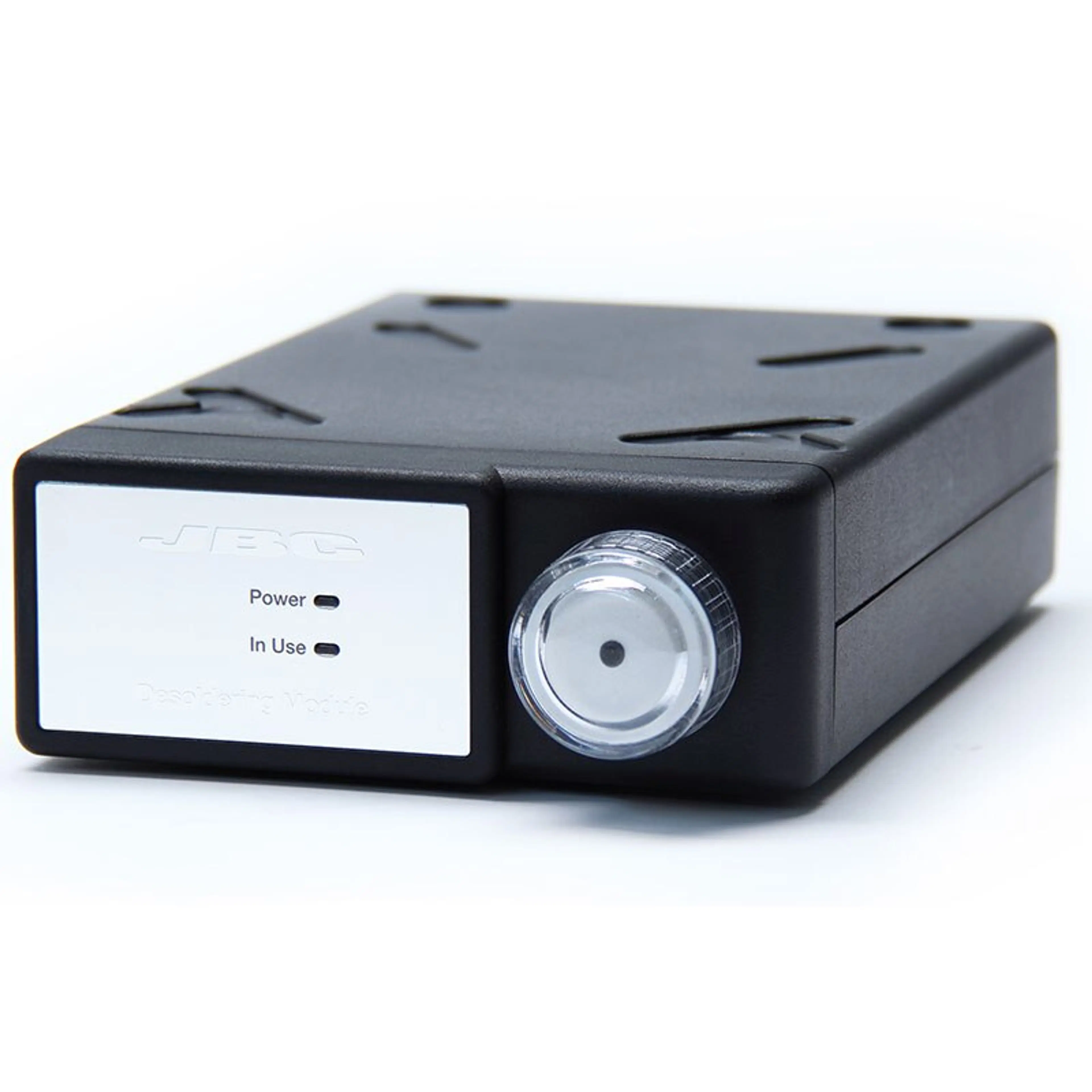

JBC MS-A
Electric Desoldering Module
The electric suction module is indispensable for a complete desoldering process.
Its optimized electronic suction system create a vacuum peak at the startup in order to collect the solder before it cools down.
It is equipped with some suction filters easy to change for extending the pump´s life.
MS is compatibe with CS station and DI control unit which manage the tip temperature while module removes the molten solder.
MS works with the comfortable DS360 or DR560 desoldering irons and their corresponding tips.
| Technical Specifications | |
|---|---|
| Permissible ambient temperature - celsius | 10 - 40 |
| Voltage | 24V;"Dimensions -=145 x 55 x 225 |
| Weight - lbs | 2.62 |
| ESD Compliant | Yes |
| MPN | MS-A |
