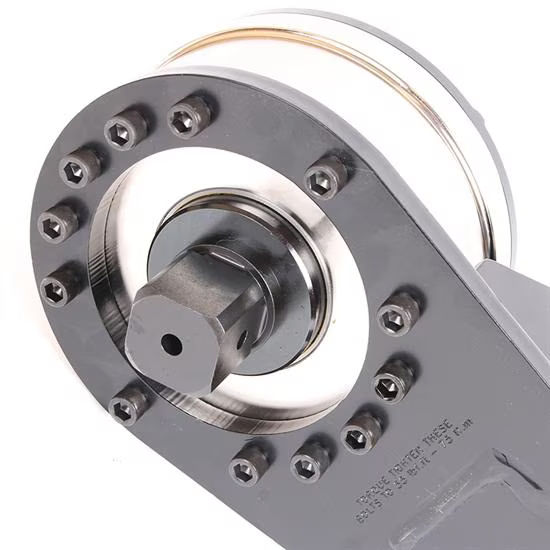

1-1/2 in. Square 9000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 125:1
Norbar 'HandTorque' multipliers employ multiple stages of epicyclic gearing to give a wide range of torque outputs and ratios to suit most applications. Ratios quoted are always the torque multiplication ratio, not the velocity ratio as given for some competitor's products. For example, the velocity ratio may be 29.8:1 to give a torque multiplication of 25:1 ±4%.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Norbar 1-1/2 in. Square 9000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 125:1
16071
1-1/2 in. Square 9000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 125:1 by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
Norbar "HandTorque" multipliers employ multiple stages of epicyclic gearing to give a wide range of torque outputs and ratios to suit most applications. Ratios quoted are always the torque multiplication ratio, not the velocity ratio as given for some competitor's products. For example, the velocity ratio may be 29.8:1 to give a torque multiplication of 25:1 +/-4%.
Features:
- A variety of reaction styles are available for maximum versatility.
- Electronic torque transducers can be fitted for precise torque monitoring.
- True torque multiplication guaranteed better than +/-4%.
- High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
- Anti Wind-Up Ratchet available on models of 25:1 ratio and above.
| Technical Specifications | |
|---|---|
| Model | 16071 |
| Type | Torque Multiplier |
| Drive size | 1-1/2'' square |
| Manufacturer | Norbar |
| SKU | NOR16071 |
| Max Torque (Ft Lb) | 7000 |
| Min Torque (Nm) | 950 |
| Max Torque (Nm) | 9000 |
| Input Drive (In) | 1/2 |
| Weight (lbs) | 41.67 |
| Ratio | 125:1 |
| Series | Standard |
| Drive Type | 1-1/2 in. Square |
| Weight (kg) | 18.9 |
| MPN | 16071 |
| Features & Benefits | |
| High ratios allow the use of a small torque wrench,multipliers can be used where access is limited. | |
| True torque multiplication guaranteed better than ±4%. | |
