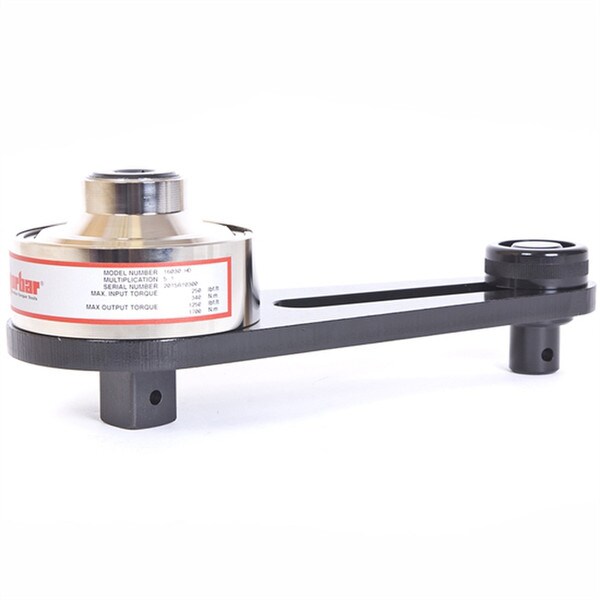

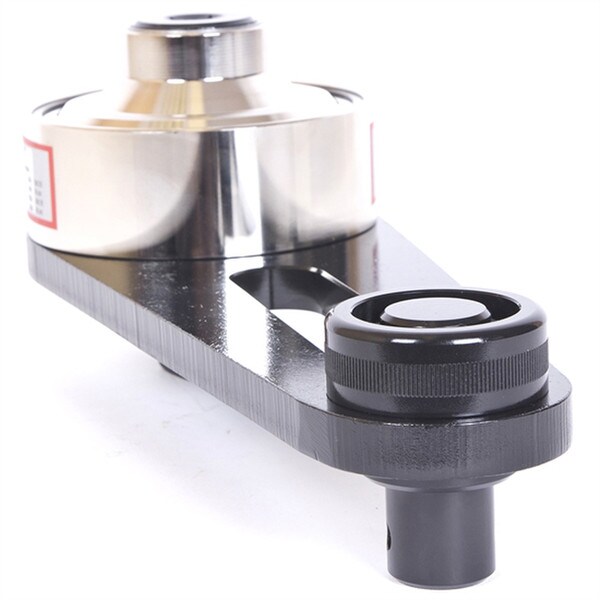

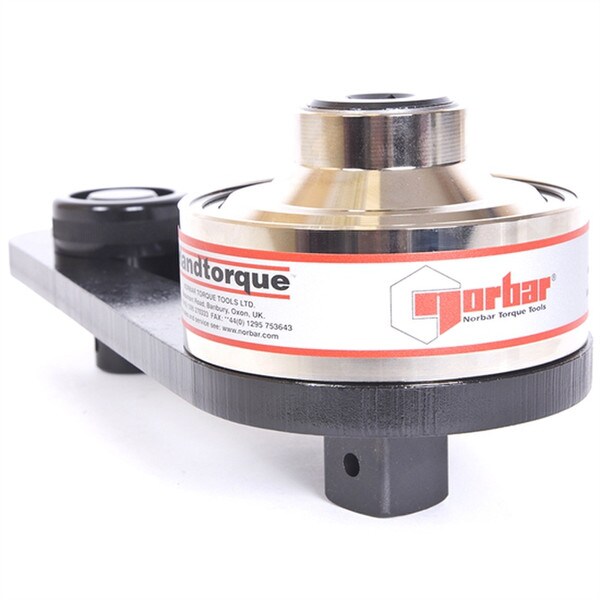

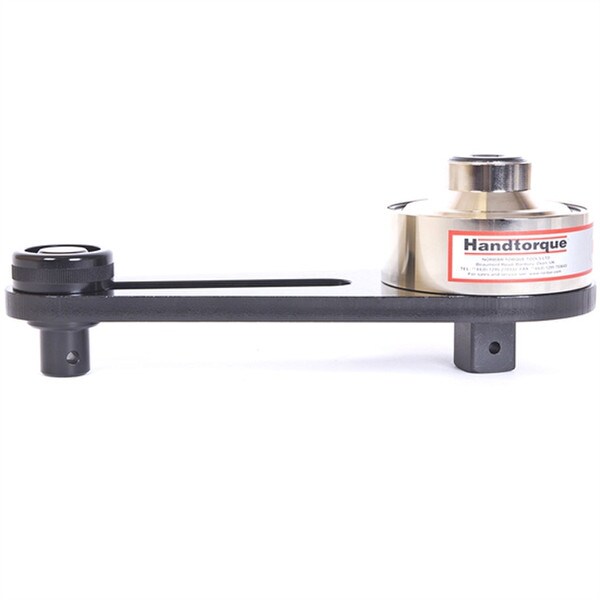

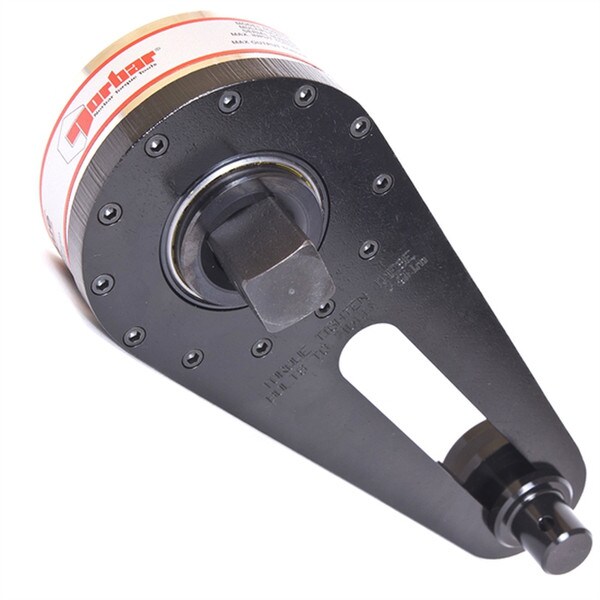

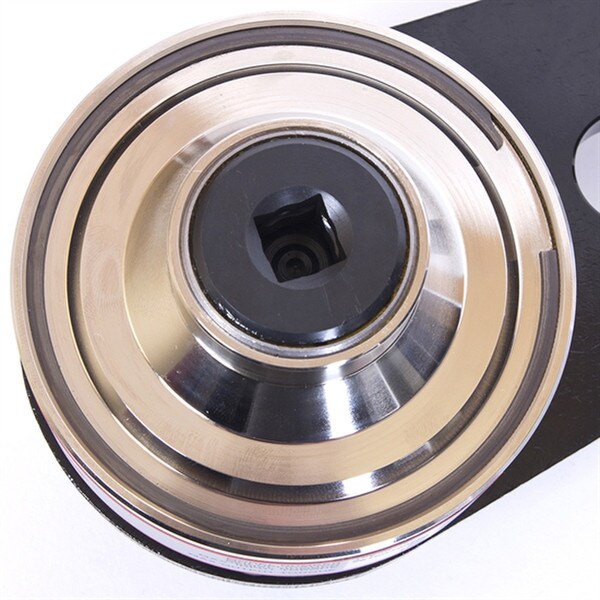

Norbar 1 in. Square 1700 Nm Heavy Duty Torque Multiplier, 1/2 in. input, 5:2

16030.HD

1 in. Square 1700 Nm Heavy Duty Torque Multiplier, 1/2 in. input, 5:2 by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!

Norbar "HandTorque" multipliers employ multiple stages of epicyclic gearing to give a wide range of torque outputs and ratios to suit most applications. Ratios quoted are always the torque multiplication ratio, not the velocity ratio as given for some competitor's products. For example, the velocity ratio may be 29.8:1 to give a torque multiplication of 25:1 +/-4%.

Features:
  • A variety of reaction styles are available for maximum versatility.
  • Electronic torque transducers can be fitted for precise torque monitoring.
  • True torque multiplication guaranteed better than +/-4%.
  • High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
  • Anti Wind-Up Ratchet available on models of 25:1 ratio and above.

Norbar 'HandTorque' multipliers employ multiple stages of epicyclic gearing to give a wide range of torque outputs and ratios to suit most applications. Ratios quoted are always the torque multiplication ratio, not the velocity ratio as given for some competitor's products. For example, the velocity ratio may be 29.8:1 to give a torque multiplication of 25:1 ±4%.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • High ratios allow the use of a small torque wrench,multipliers can be used where access is limited.
  • True torque multiplication guaranteed better than ±4%.

Technical Information

Technical Specifications

Technical Specifications

SKU: 16030.HD-norbar
Manufacturer Norbar
Model 16030.HD
Drive size 1'' square
Drive Type 1 in. Square
Series Standard
Torque Range (Ft Lbs) - 1250
Torque Range (Nm) 170 - 1700
Type Torque Multiplier
Weight7.05 lbs
