HT-72/27 | 1 in. Square 2000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 5.2:1
Each multiplier is supplied with its own unique calibration certificate allowing the accurate calculation of input torque for critical applications
$3,130.78List $3,578.04
Save $447.26Total$3,130.78Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
180214 | HT-72/27 | 1 in. Square 2000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 5.2:1HT-72/27
Total$3,130.78
1
Details
Product information
Overview

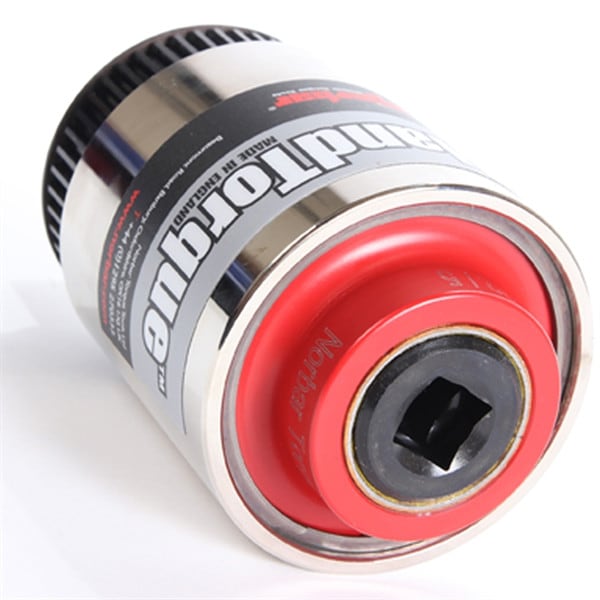

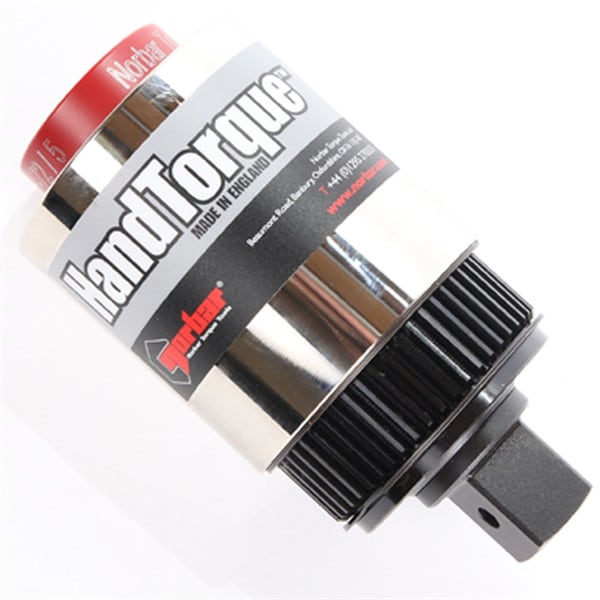

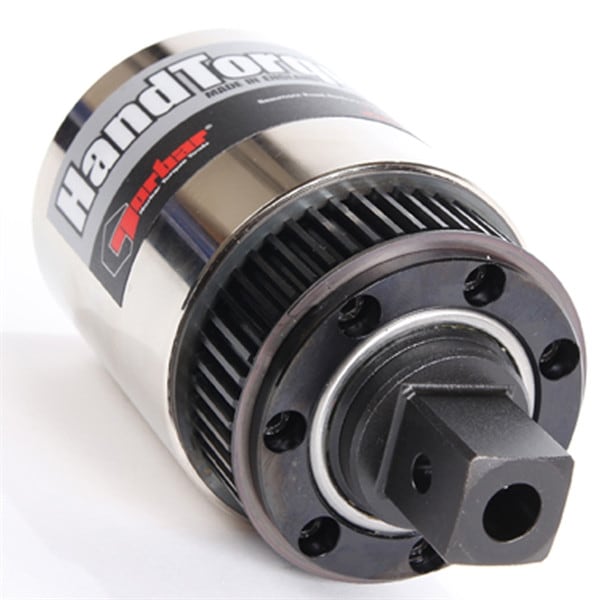

Norbar 1 in. Square 2000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 5.2:1
180214
1 in. Square 2000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 5.2:1 by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
Features:
- 72mm diameter allows excellent access.
- Guaranteed accuracy of better than +/-4%.
- Anti Wind-Up Ratchet available on 25:1 models for easier and safer operation.

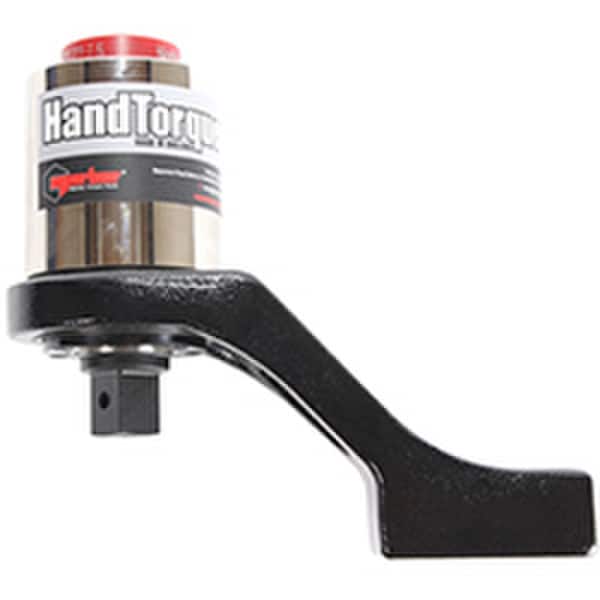

- A variety of reaction styles are available for maximum versatility.
- Electronic torque transducers can be fitted for precise torque monitoring.
- Available in a variety of ratios and output square drive sizes.
- Each multiplier is supplied with its own unique calibration certificate allowing the accurate calibration of input torque for critical application. Calibrated from 20% of maximum capacity.
| Technical Specifications | |
|---|---|
| Model | HT-72/27 |
| Type | Torque Multiplier |
| Drive size | 1/2'' square |
| Manufacturer | Norbar |
| Length (mm) | 226.4 |
| SKU | NOR180214 |
| Max Torque (Ft Lb) | 1450 |
| Min Torque (Nm) | 200 |
| Max Torque (Nm) | 2000 |
| Input Drive (In) | 1/2'' square |
| Output Drive (In) | 1'' square |
| Weight (lbs) | 1.4 |
| Ratio | 5.2:1 |
| Series | HT-72 |
| Drive Type | 1 in. Square |
| Weight (kg) | 3 |
| MPN | HT-72/27 |
| Features & Benefits | |
| Fitted with AWUR | |
| Compact size allows easy access to applications | |
| Light weight for torque capacity. | |
| Guaranteed multiplication accuracy of ±4%. | |
| Fitted with AWUR,Compact size allows easy access to applications,Light weight for torque capacity. | |
