Norbar180204
HT-52/22 | 3/4 in. Square 1000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 22.2:1
Each multiplier is supplied with its own unique calibration certificate allowing the accurate calculation of input torque for critical applications
$3,071.15List $3,290.51
Save $219.36Total$3,071.15Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
180204 | HT-52/22 | 3/4 in. Square 1000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 22.2:1HT-52/22
Total$3,071.15
1
Details
Product information
Overview

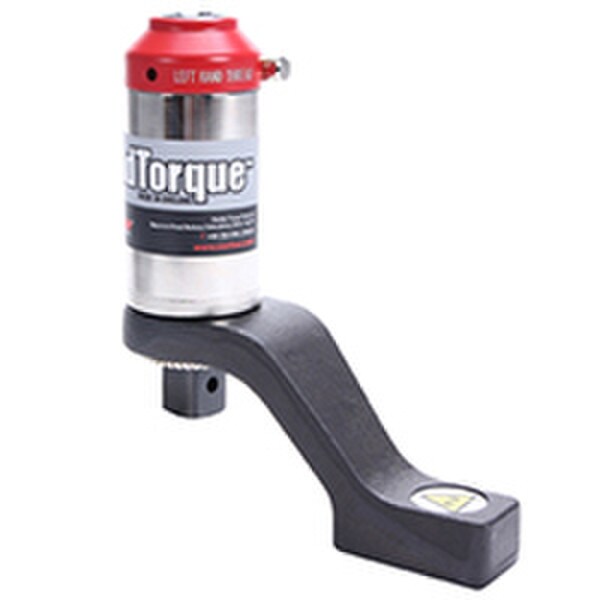

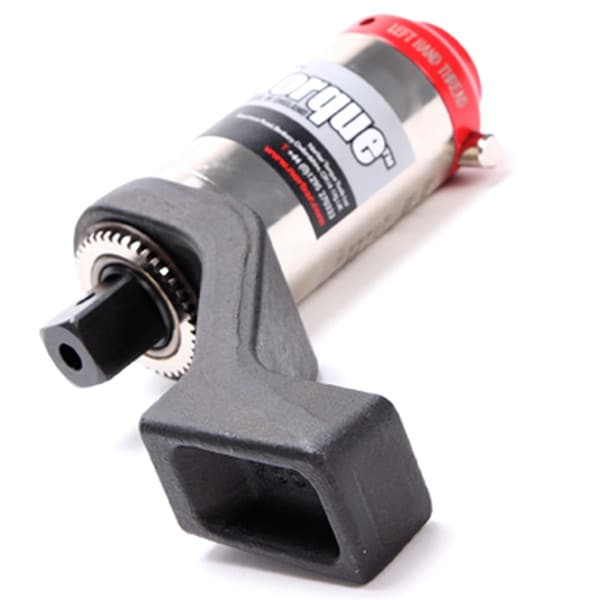

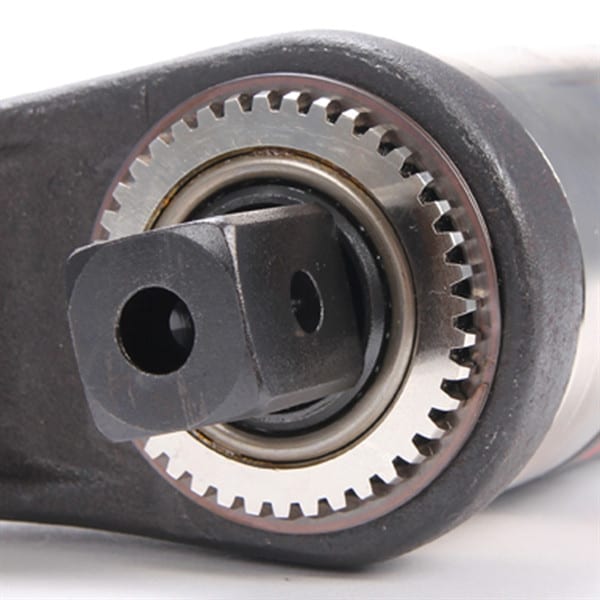

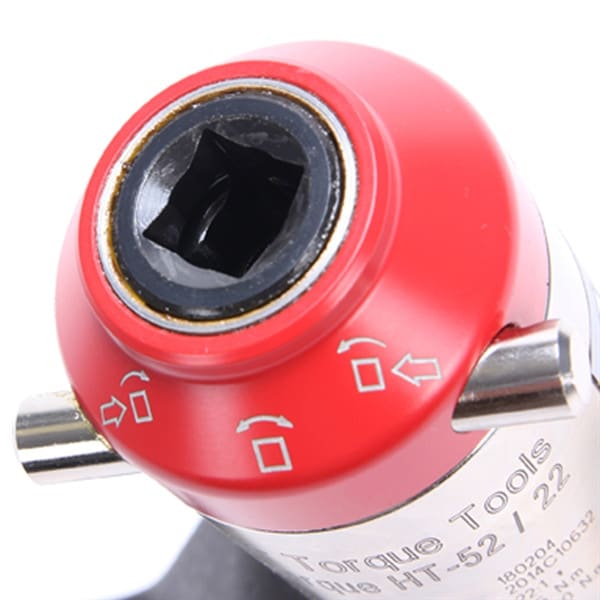

Norbar 3/4 in. Square 1000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 22.2:1
180204
3/4 in. Square 1000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 22.2:1 by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
The Norbar"Compact Series" Handtorque multipliers are smaller and lighter than other torque multipliers. They are supplied with a unique calibration certificate and in their own carry case
Features:
- Guaranteed accuracy of better than +/-4%.
- 52mm diameter allows excellent access.
- Each multiplier is supplied with its own unique calibration certificate allowing the accurate calibration of input torque for critical application. Calibrated from 20% of maximum capacity.
| Technical Specifications | |
|---|---|
| Model | HT-52/22 |
| Type | Torque Multiplier |
| Drive size | 1/2'' square |
| Manufacturer | Norbar |
| Length (mm) | 189 |
| SKU | 180204 |
| Max Torque (Ft Lb) | 740 |
| Min Torque (Nm) | 100 |
| Max Torque (Nm) | 1000 |
| Input Drive (In) | 1/2'' square |
| Output Drive (In) | 3/4'' square |
| Weight (lbs) | 0.6 |
| Ratio | 22.2:1 |
| Series | HT-52 |
| Drive Type | 3/4 in. Square |
| Weight (kg) | 1.4 |
| MPN | HT-52/22 |
| Features & Benefits | |
| Fitted with AWUR | |
| Compact size allows easy access to applications | |
| Light weight for torque capacity. | |
| Guaranteed multiplication accuracy of ±4%. | |
| Fitted with AWUR,Compact size allows easy access to applications,Light weight for torque capacity. | |
