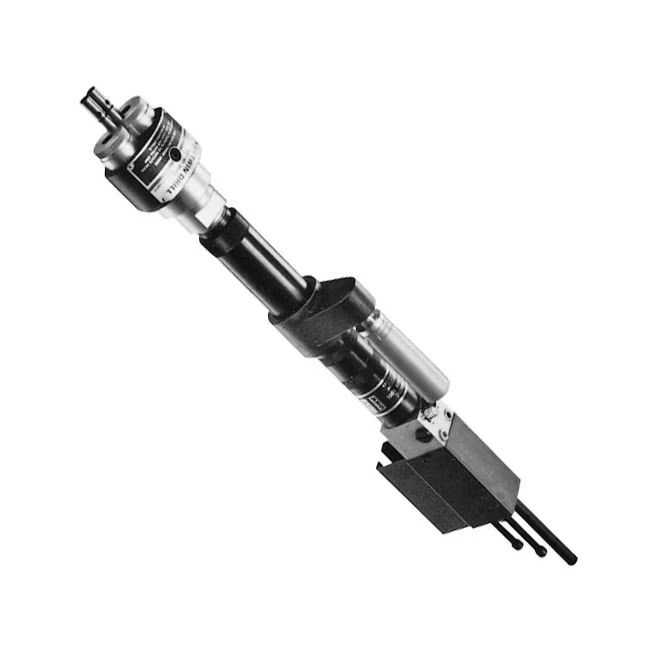

Paramatic Twin Drill
Self Feed Twin Drills are ideal for many closecenter machining problems. But even more important, ARO Twin Drills significantly reduce machining time and parts handling while improving quality
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
10 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Details
Product information
Overview
Ingersoll Rand ARO Twin Drills perform two machining operations per cycle for holes
with center distances from 3/8" to 3 3/4". They’re ideal for many closecenter
machining problems. But even more important, ARO Twin Drills
significantly reduce machining time and parts handling while improving
quality.
Three series of standard tools are available, equipped with adjustable dual spindle heads. Like the other ARO Automatic Production Tools, each Twin Drill is a completely self-contained unit with built-in cycle, feed rate, and motor controls. They can be operated individually or in conjunction with other tools and machine components.
Three series of standard tools are available, equipped with adjustable dual spindle heads. Like the other ARO Automatic Production Tools, each Twin Drill is a completely self-contained unit with built-in cycle, feed rate, and motor controls. They can be operated individually or in conjunction with other tools and machine components.
- Adjustable spindles allow reapplication as machining requirements change
- Comprehensive range of American and metric collets available to meet a wide variety of hole specifications
- Double-acting air piston provides smooth, controlled forward and retract strokes
- Needle valve controls allow adjustment of forward and retract strokes
- Adjustment screw provides infinite stroke length settings up to 3.0" maximum
- Muffled exhaust for a quieter work environment
| Features & Benefits | |
|---|---|
| Load Speed Peak: 5000 RPM Max | |
| Stroke: 3.0" (76 mm) | |
| Thrust: Up to 170 Lbs | |
| From $2,720 up to $3,051 |
