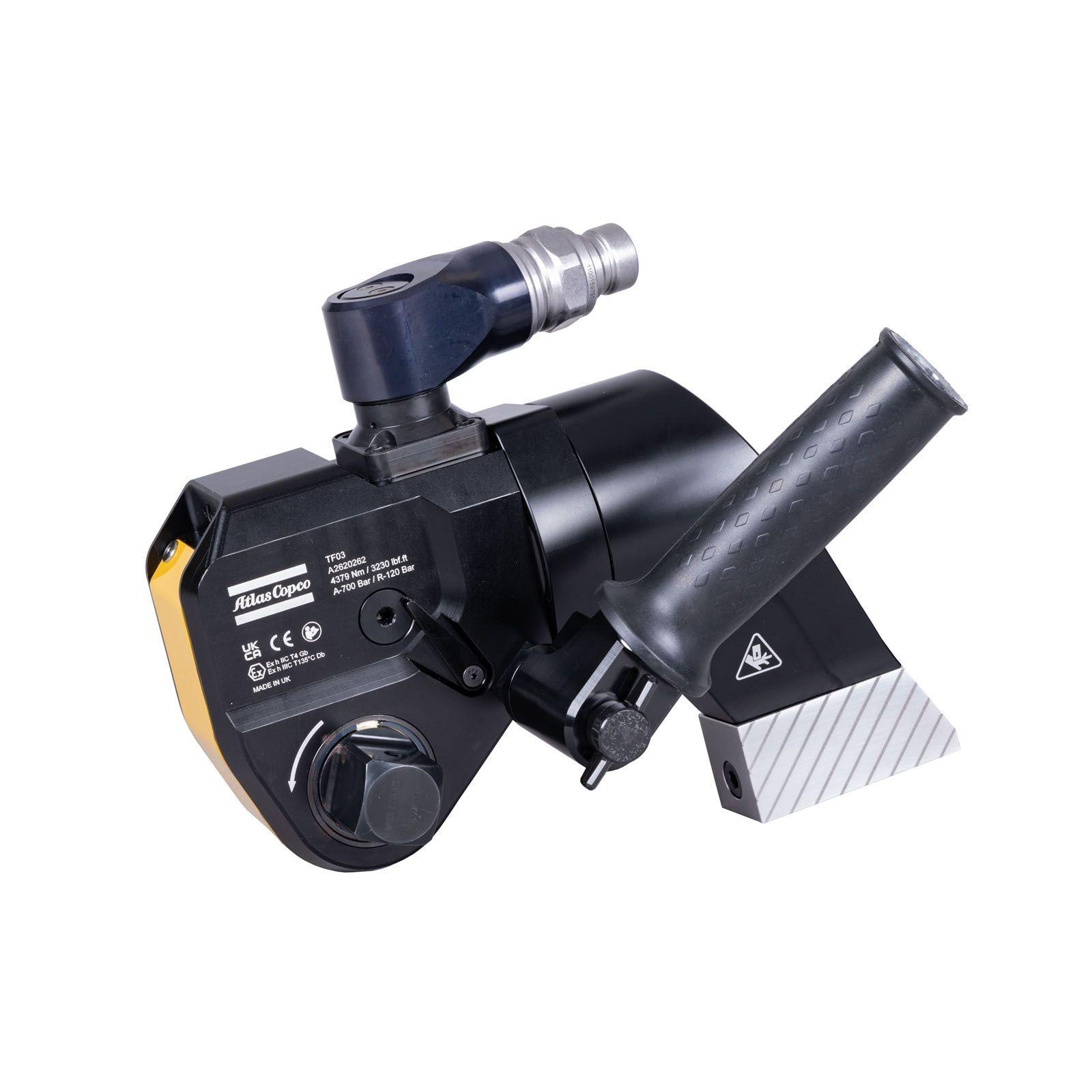

TF Series Hydraulic Torque Wrenches

Hydraulic wrenches in TF Series offer extremely high torque output. Excellent power to weight ratio, from 283 – 15619 Nm (209 - 11520 Ft. lb.)

Models and pricing below

8 items

Add-on accessories that can be purchased alongside this product.

Product	h2	h1	l1	Qty
TF01 (Co-Axial)TF01 (Co-Axial) / 8434 2406 05 \| 3/4'' square, 209 - 1390 ft-lbs, Hydraulic Wrench	126 mm	77 mm	101 mm	1	View details
TF03 (Twin)TF03 (Twin) / 8434 2409 94 \| 1'' square, 485 - 3230 ft-lbs, Hydraulic Wrench	143 mm	97 mm	126 mm	1	View details
TF03 (Co-Axial)TF03 (Co-Axial) / 8434 2409 95 \| 1'' square, 485 - 3230 ft-lbs, Hydraulic Wrench	—	—	—	1	View details
TF01 (Twin)TF01 (Twin) / 8434 2410 15 \| 3/4'' square, 209 - 1390 ft-lbs, Hydraulic Wrench	122 mm	77 mm	101 mm	1	View details
TF05 (Co-Axial)TF05 (Co-Axial) / 8434 2411 16 \| 1-1/2'' square, 839 - 5590 ft-lbs, Hydraulic Wrench	165 mm	114.5 mm	161 mm	1	View details
TF05 (Twin)TF05 (Twin) / 8434 2411 17 \| 1-1/2'' square, 839 - 5590 ft-lbs, Hydraulic Wrench	161 mm	114.5 mm	161 mm	1	View details
TF08 (Co-Axial)TF08 (Co-Axial) / 8434 2411 49 \| 1-1/2'' square, 1200 - 8000 ft-lbs, Hydraulic Wrench	177 mm	126.1 mm	171 mm	1	View details
TF08 (Twin)TF08 (Twin) / 8434 2411 50 \| 1-1/2'' square, 1200 - 8000 ft-lbs, Hydraulic Wrench	172 mm	126.1 mm	171 mm	1	View details

Features & Benefits
Adjustable Retained Reaction Arm.
Square Drive with Integrated Retainer for use with impact sockets.
Fully Adjustable Ergonomic Support Handle.
Peli-case style packaging and custom foam.
All TF wrenches can be supplied with Co-Axial coupling or standard twinline
All TF wrenches can be supplied with Co-Axial coupling or standard twinline,Peli-case style packaging and custom foam.
