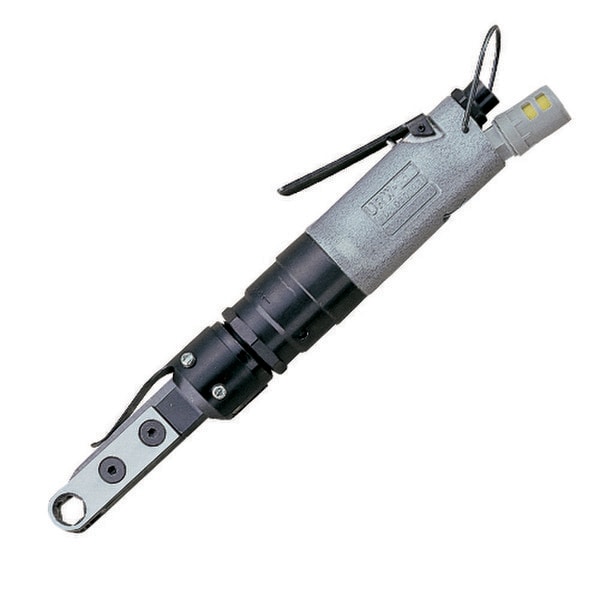

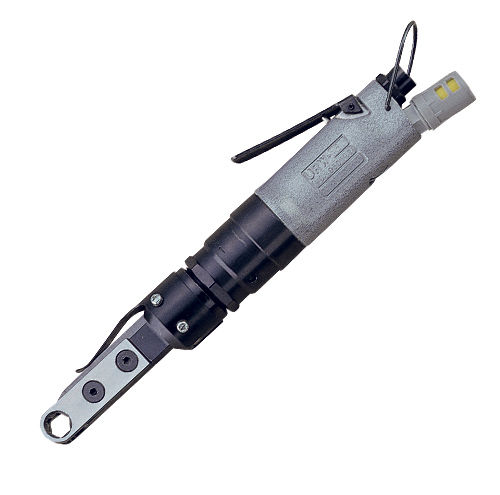

Inline Ratchet Wrench, 11 Nm, 1/4 - 7/16 in. socket size
Designed to set flush over the fastener head, the URW Series is ideal for narrow fastening spaces. Motor torque is transferred from a gear driven, dual lobed cam that pushes a spring loaded push rod, rotating the socket one tooth at a time.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
10 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Model | Price | Qty | |
|---|---|---|---|---|
 AFRL-S34-aimcoAFRL-S34 | Complete FRL 3/8'' NPT Port Size | — | 1 | View details | |
 ASB-0CASB-0C | Spring Balancer 1.1 - 3.3 lbs$89.60 | — | $89.60 | 1 | View details |
 ASH-375C-15MSZ-aimcoASH-375C-15MSZ | Hose Coiled 3/8in Idx15 Ft. | ASH-375C-15MSZ | 1 | View details | |
 URW-10N-1-aimcoURW-10N-1 | 42.0 Ft Lb Ratchet Wrench$2,649.74 | — | $2,649.74 | 1 | View details |
 URW-10NURW-10N | Inline Ratchet Wrench, 57 Nm, 9/16 - 3/4 in. socket size$1,934.89 | URW-10N | $1,934.89 | 1 | View details |
 URW-12NURW-12N | Inline Ratchet Wrench, 59 Nm, 3/8 - 13/16 in. socket size$1,934.89 | URW-12N | $1,934.89 | 1 | View details |
 URW-12NAURW-12NA | 16.1 Ft Lb Ratchet Wrench$2,231.78 | URW-12NA | $2,231.78 | 1 | View details |
| URW-12NB-aimcoURW-12NB | 68.7 Ft Lb Ratchet Wrench$2,231.78 | — | $2,231.78 | 1 | View details |
 URW-8NURW-8N | Inline Ratchet Wrench, 16 Nm, 7/16 - 9/16 in. socket size$1,758.49 | URW-8N | $1,758.49 | 1 | View details |
| URW-9NURW-9N | Inline Ratchet Wrench, 31 Nm, 7/16 - 9/16 in. socket size$2,098.69 | URW-9N | $2,098.69 | 1 | View details |
Details
Product information
Overview
URYU Inline Ratchet Wrench, 11 Nm, 1/4 - 7/16 in. socket size
Inline Ratchet Wrench, 11 Nm, 1/4 - 7/16 in. socket size, model# URW-6 by URYU; available to order from Flexible Assembly Systems. Do you see this Ratchet Wrench available elsewhere for a lower price? Contact customer service on price matching!
URW-6 by URYU
Designed to set flush over the fastener head, the URW Series is ideal for narrow fastening spaces. Motor torque is transferred from a gear driven, dual lobed cam that pushes a spring loaded push rod, rotating the socket one tooth at a time. A wide variety of socket sizes, head thicknesses, and tool lengths allow the URW Series access to many difficult applications.
| Technical Specifications | |
|---|---|
| SKU | URW-6 |
| Model | URW-6 |
| Air Hose Size - in | 3/8 |
| Air Inlet Thread N.P.T. - in | 1/4 |
| Air Usage - CFM | 9.9 |
| Free Speed - rpm | 200 |
| Max Hex Socket Size - in | 1/4, 5/16, 3/8, 7/16 |
| Max Hex Socket Size - mm | 6, 7, 8, 10, 11, 12 (10 mm is included with wrench if no other size is specified) |
| Max. Torque - ft-lbs | 8.1 |
| Max. Torque - Nm | 11 |
| Overall Length - in | 11.5 |
| Overall Length - mm | 292 |
| Weight - kg | 1.1 |
| Weight - lb | 2.5 |
| MPN | URW-6 |
| Features & Benefits | |
| Ideal for Many Difficult Applications Including Narrow Fastening Spaces | |
| Wide variety of socket sizes, head thickness and tool lengths allow access to many difficult applications | |
| Reverse rotation obtained by simply turning tool over | |
| Recommended Air Pressure: 85 psi | |
| Wide variety of socket sizes | |
| head thickness and tool lengths allow access to many difficult applications | |
