PM9-1791500 | PM1500 Bandsaw, 3HP 1PH 230V
Overview

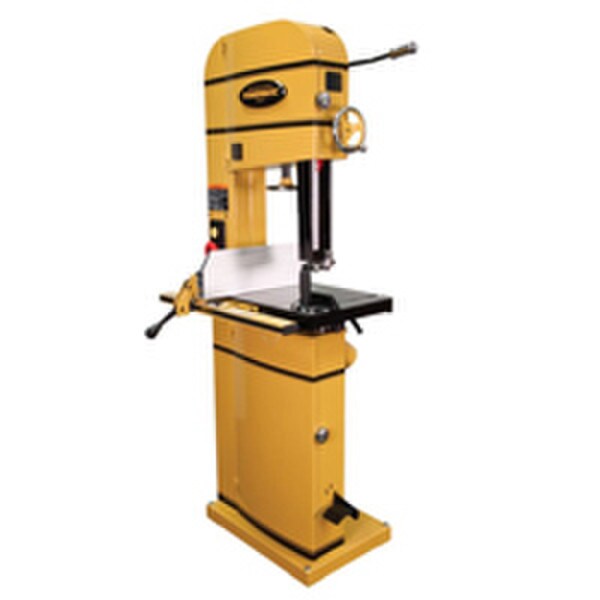

Powermatic 1791500
Pm1500 Bandsaw, 3Hp 1Ph 230V
The PM1500 packs many of the features traditionally only found on larger bandsaws, and brings them to a new, category-redefining, 15Â’Â’ size. As with every product Powermatic builds, the PM1500 pushes the limits of design, innovation, and durability. It truly is The Gold Standard.
Features:- 14.5" of throat and 14" of resaw provide more capacity than a traditional 14" bandsaw
- Sturdy cast iron table and trunnion assembly offers maximum rigidity for heavy work pieces
- Exclusive Powermatic T-Square style Accu-Fence maximizes accuracy and safety
- The Accu-Fence has complete adjustability for aligning to blade and squaring to table
- Positive locking cam with pressure adjustment
- Oversized side plate can be used in the horizontal or vertical position
- Solid steel resaw pin for optimum ridgidity
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned or released
- Heavy duty upper wheel support and tracking mechanism for smooth operation
- Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
- High end blade guides with tool less adjustment provide stability, increasing cut accuracy
- Four sided blade guard for optimum protection
- Integrated foot brake stops a coasting blade
- Magnetic Switch protects the motor from harm due to potential electrical supply issues
- Heavy duty 3 horsepower motor provides power needed for all projects
Technical Specifications
Type
Bandsaw
Motor Type
3HP,230V,1PH
Cutting Height - inches
14
Cutting Width - inches
14-1/2
Blade Length - inches
153
min saw blade width - inches
1/8
max saw blade width - inches
1
Blade Speed - rpm
3100
Table Height - inches
40
Table Size - inches
21-1/2 x 16 x 2
Dimensions - inches
30-1/4 x 34-3/8 x 80-1/4
Weight - lbs
394
