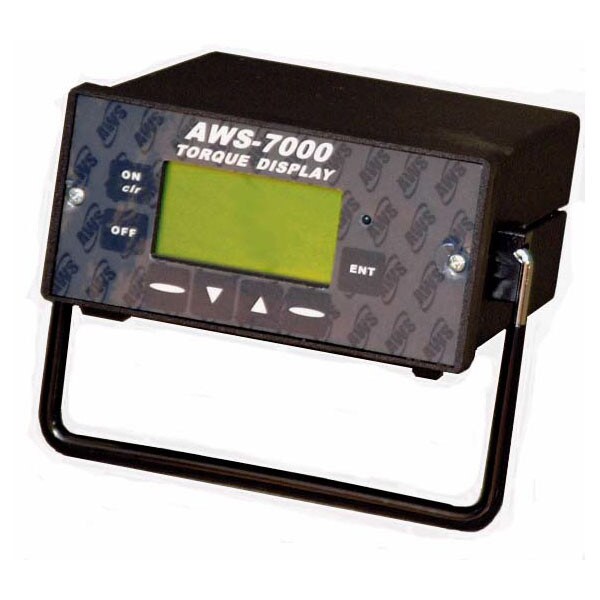

AWS-7000 | Stand Alone Display 4 Digit

Advanced Witness Series AWS-7000

Stand Alone Display 4 Digit

The AWS-7000 Series Torque Display is a versatile readout series designed to provide an economical way to measure (or in the AWS-7000CT version, automatically tighten, measure, control, and record,) fastening data for critical fasteners.

At the heart of the AWS-7000 lies the same precision electronics, and cutting-edge software as our production and metrology grade torque testers. Some of the advanced design features include:

• A 24-bit AD converter with no analog circuitry to drift.
• All filter settings rated to Nyquist frequency. This all be eliminates roll-off error.
• Independent CW and CCW calibration with multipoint linearization.
• Optional control output lines can be used for controlling a motor, air solenoid, alarms, etc.

• Bi-directional accuracy of ±0.5% of indicated reading with AWS transducers.
• Eight (8) available engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgf m
• 3 modes of operation: Track, Peak, and 1st Peak.
• RS-232 output.
• Key-lock for tamper-proof operation.
• Intellect interface with transducer means any Intellect transducer can be added to the display without recalibration: all traceable to NIST.
• Rundown Fixtures available through 1,000 Lb.ft.
• NiMH rechargeable batteries provide at least 8-10 hours continuous use.
• Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.
• Can be calibrated to virtually any manufacturerÂ’s strain gauge transducers including pressure transducers.
• For testing click, dial, and digital wrenches, plus most power tools including impulse and DC electric.
• Visual limit alarms.
• 4 active digits means greater resolution and accuracy at the low-end of the scale.
• RS-232 output can be used to print values to a serial printer, or sent to a PC with our cable and software package
