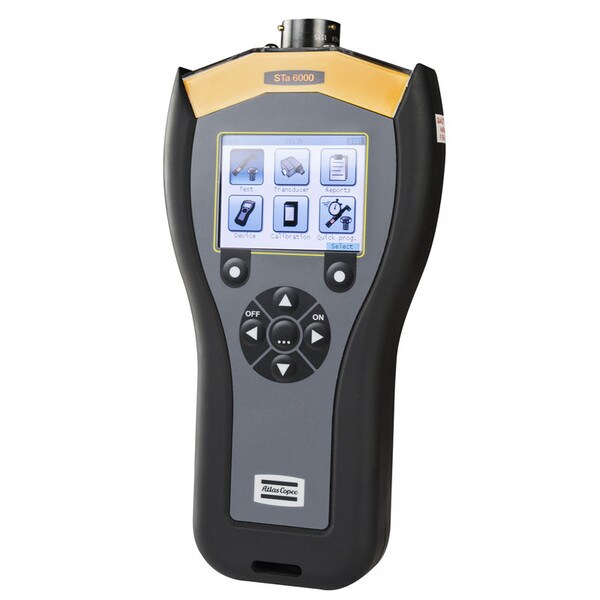

Atlas Copco STanalyzer STa6000

This is the Sta6000 STanalyzer from Atlas Copco. The STanalyzer is a portable and compact quality assurance unit that is used to check tool performance, repeatability and accuracy while in a tool crib or out in the field.

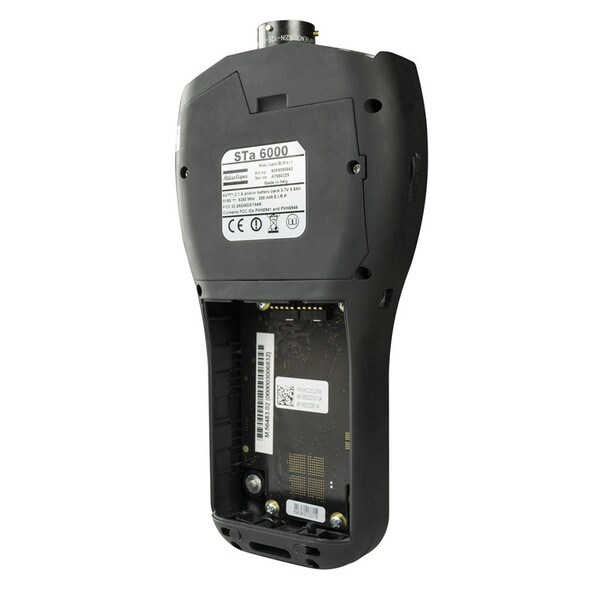

The STanalyzer weighs under 500g and can be powered by the included AC power adapter or with an optional Li-ion battery for 10-16 hours of continuous use on a single charge.

The modular design makes upgrading and expanding the functions of the STanalyzer easy with the use of Atlas Copco RBUs. A variety of RBUs are available for a wide spectrum of applications and add additional features such as real time statistics, residual torque detection and angle monitoring.

The STanalyzer when attached to a rotary or static transducer can run a track or peak test. The tool check feature allows the user to check their tools min, max and average sigma values directly on the display. Up to 5,000 results can be stored internally. After completing a test, reports can be exported to ToolsTalk BLM software via USB as an excel, PDF, txt or other file types.

IRTT-B in-line rotary transducers can be used to read torque and torque angle within a torque capacity of 1 – 10,000 Nm (0.8 – 7370 ft lb). Each transducer can be used with a clutch, pulse, or transducerized tool and is equipped with a memory chip which is automatically recognized by the STanalyzer to reduce setup errors.

The MRTT-C transducer is an advanced handle that can function as a manual wrench when connected to a smartHEAD. The MRTT-C can read torque and torque/angle and alerts the user to tightening status with its LED ring, buzzer and vibrating handle. The MRTT-C can be used tighten bolts with accuracy or with an STanalyzer to measure residual torque in a joint.

Other transducers are available such as the SRTT-L for low torque assembly testing and the SRTT-B for stationary reaction torque testing.

Attaching the STanalyzer via USB or ethernet to Atlas Copco's BLM Torque Supervisor software will provide full control and monitoring of assembly lines and joints as well as other quality assurance functions.

• STa6000 STanalyzer
• MRTT-C Transducer
• IRTT-B 1A-106 Transducer
• IRTT-B 5A-106 Transducer
• IRTT-B 25A-10 Transducer
• STwrench controller BI with Production, IRC-B and QAT Bar Code RBU
• smartHEAD A30-10
• smartHEAD A80-10
• smartHEAD A150-13
• STanalyser STa 6000 USB/Serial Adapter
