BS-CL60 | Automatic Pneumatic Screw Feeder for M2 - M6x6mm screws, 1300cc
Overview

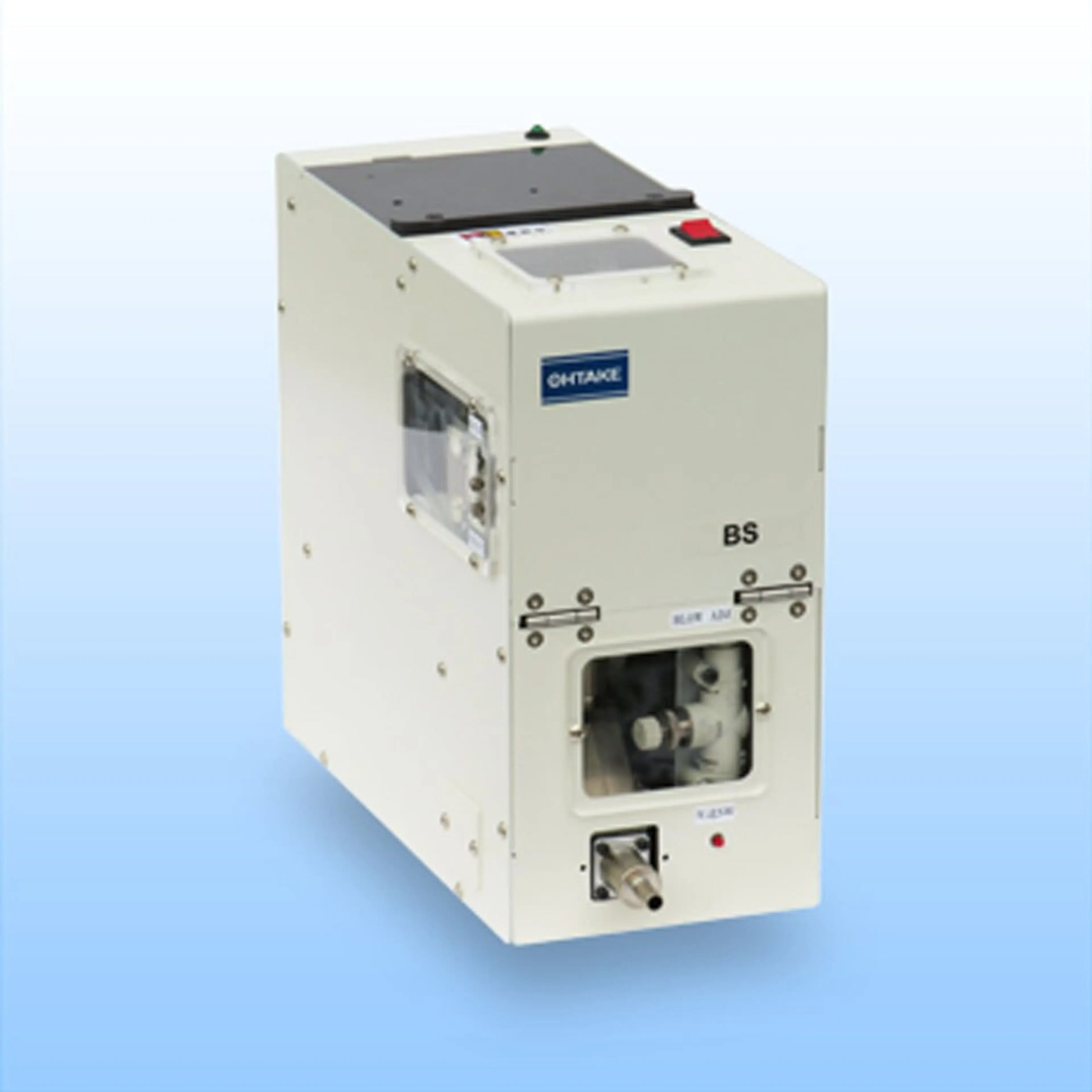

Introducing the Ohtake BS-CL60 Automatic Pneumatic Screw Feeder, a revolutionary solution for your screw feeding needs. This advanced screw feeder is meticulously engineered to provide precise screw counting and efficient feeding, enhancing productivity and accuracy in your assembly processes.
- Screw Size Compatibility: M2 - M6x6mm
- Capacity: 1300cc
- Manufacturer: Ohtake
Features & Benefits
- Precise Screw Counting: The BS-CL60 screw feeder ensures accurate screw counting for manual application, eliminating the risk of incorrect screw quantities. Its easily accessible counter panel allows for convenient monitoring and control.
- Pneumatic Mechanism: Equipped with a powerful pneumatic mechanism, this screw feeder significantly improves working cycle takt time. It is specifically designed for steel screws, making it ideal for various industrial applications.
- Large Capacity: With a generous capacity of 1300cc, this screw feeder minimizes the need for frequent refilling, reducing downtime and maintaining a smooth workflow.
- Versatile Screw Compatibility: The Ohtake BS-CL60 screw feeder is compatible with a wide range of screw sizes, from M2 to M6x6mm, providing versatility and adaptability to different assembly requirements.
Technical Specifications
Type
Automatic Pneumatic Screw Feeder
Screw Diameter - mm
6
Screw Size - mm
M2 - M6
Max Screw Length - mm
25
Capacity - cc
1300
Dimensions - mm
169 x 436 x 270
Power Supply
AC100 - 240V DC15V
Weight - kg
10
Technical Documents
Ohtake Screw Presenters Catalog (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
