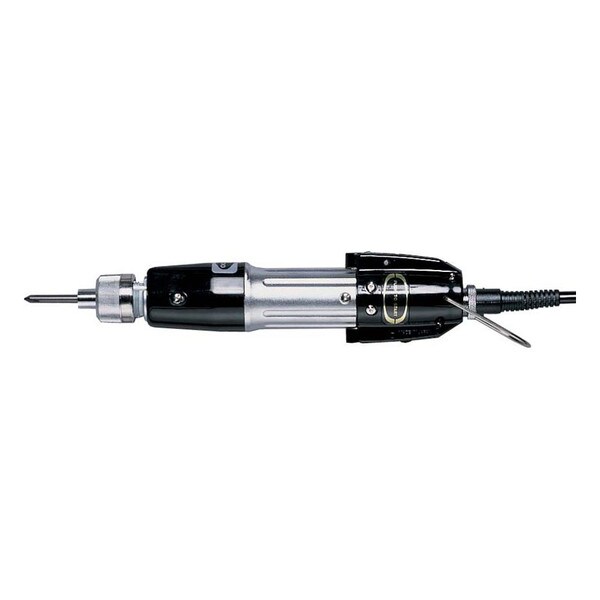

CL-7000PS | Electric Torque Screwdriver, 0.3 - 2.5 Nm, Push-to-Start
Overview
Introducing the HIOS CL-7000PS Electric Torque Screwdriver, a compact and lightweight tool designed for low-torque screw tightening applications. With its exceptional performance and user-friendly features, this electric screwdriver is a valuable addition to any assembly line.
- Min Torque(Nm): 0.3
- Max Torque(Nm): 2.5
- Drive Size: H5
- Free Speed(RPM): 750
- Start Type: Push-to-Start
- Manufacturer: HIOS
Features & Benefits
- Low Torque Range: Ideal for delicate assembly tasks, the CL-7000PS offers a low torque range from 0.3 to 2.5 Nm, ensuring precise and controlled screw tightening.
- Push-to-Start Operation: The convenient push-to-start mechanism allows for effortless operation, minimizing user fatigue and maximizing productivity.
- Coreless Motor: Equipped with a coreless motor, this electric screwdriver delivers exceptional durability and a long service life, ensuring reliable performance even in demanding assembly environments.
- Compact and Lightweight Design: Designed with portability and comfort in mind, the CL-7000PS is compact and lightweight, reducing operator strain during prolonged use.
Technical Specifications
Series
CL
Type
Electric Torque Screwdriver
Grip Type
Inline
Drive size
H5
Free Speed (RPM)
750
Torque Range (in lb)
2.7 - 22.1
Torque Range (Nm)
0.3 - 2.5
Torque Range (kgf cm)
3 - 25.5
Technical Documents
HIOS Electric Torque Screwdrivers Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the CL-7000PS?
What type of application is the CL-7000PS best suited for?
Electric Screwdrivers like the CL-7000PS, are most commonly used for medium to heavy assembly applications where precise torque control is required.
How Fast is the CL-7000PS?
The CL-7000PS can go up to 750 rpm.
How do I set the torque on the CL-7000PS?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the CL-7000PS have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
