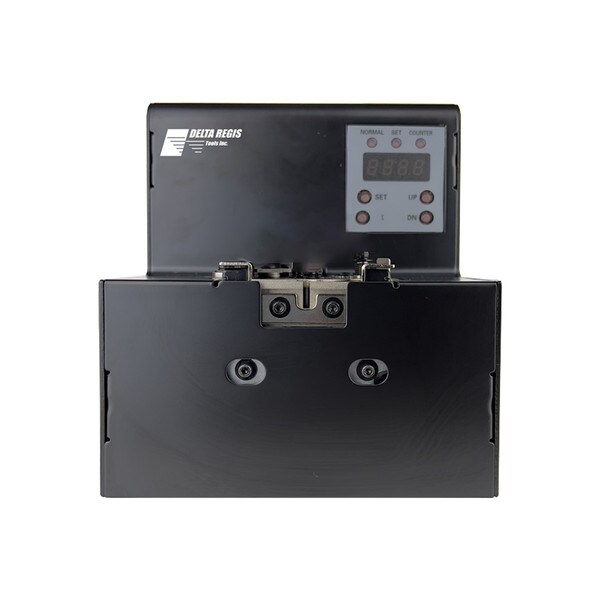

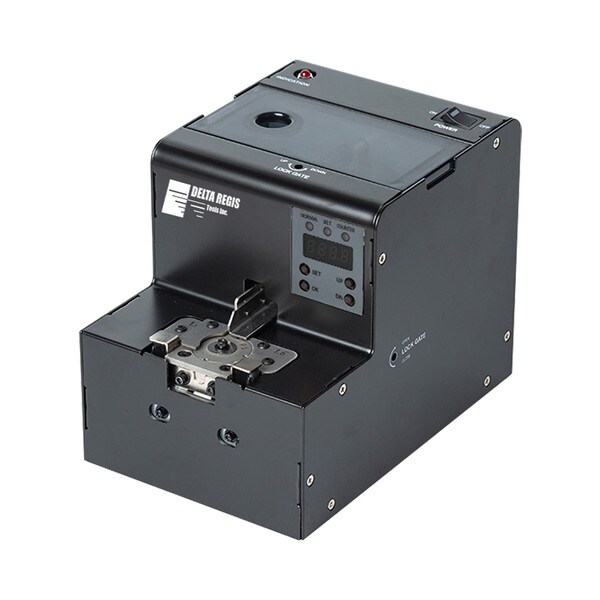

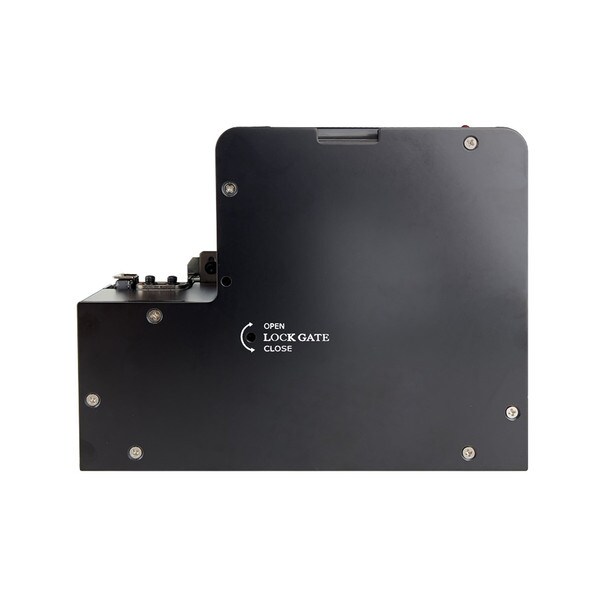

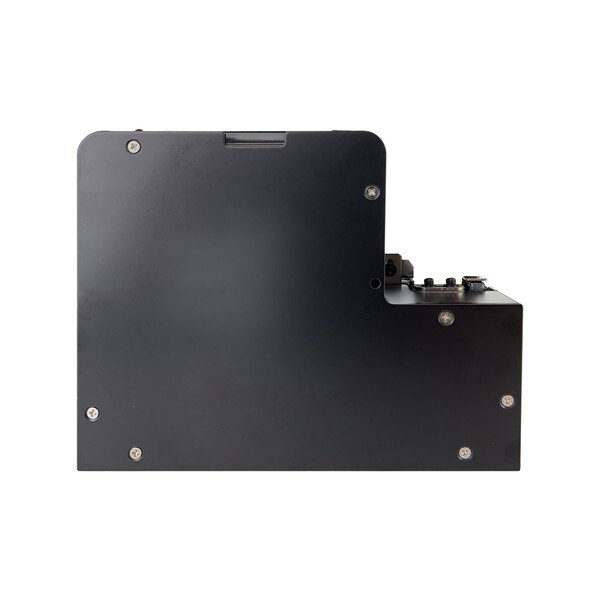

DRFF-508R-3.5 | Screw Feeder, 3.5mm screw thread dia, robotic/automated pickup

(0)No Reviews yet

Experience a new level of efficiency in your automated or robotic screwdriving applications with the DRFF-508R-3.5 Screw Feeder from Delta Regis. Its affordable design, continuous fastener supply, robotic compatibility, signal output, and integrated screw counter make it an indispensable tool for optimizing your assembly processes. Invest in the DRFF-508R-3.5 screw feeder and unlock the full potential of your automated assembly line.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Introducing the DRFF-508R-3.5 Screw Feeder from Delta Regis, a revolutionary solution designed to enhance productivity in your automated or robotic screwdriving applications. This screw feeder offers a range of features that streamline your assembly processes and elevate efficiency.

  • Screw Thread Diameter: 3.5mm
  • Power Supply: AC adapter included
  • Accessories: Set-up tools and shims included
Back

Features & Benefits

  • Affordable Productivity Boost: The DRFF-508R screw feeders provide an economical way to increase productivity in your automated or robotic screwdriving applications, ensuring that you get the most out of your investment.
  • Continuous Fastener Supply: By always having the next fastener ready to be picked up and installed, the DRFF-508R-3.5 screw feeder eliminates downtime and keeps your assembly line moving smoothly.
  • Signal Output for Pick-Up and Counting: The DRFF-508R-3.5 screw feeder provides a signal output when a screw is ready for pick-up, enabling efficient coordination with your robotic systems. Additionally, it features a PLC counting function for accurate assembly process monitoring.
  • Robotic Application Compatibility: This screw feeder is ideally suited for robotic applications, featuring magnetic or vacuum pick-up capabilities to seamlessly integrate into your automated processes.
  • Integrated Screw Counter: Equipped with an integrated screw counter and LED displays, this screw feeder offers real-time feedback on your assembly process, allowing you to stay informed and make necessary adjustments.
Back

Technical Specifications

Model
DRFF-508R-3.5
Screw Size
M3.5
Manufacturer
Delta Regis
Capacity
200-220 cc
Length (mm)
8mm
SKU
DRFF-508R-3.5
Dimensions
182 x 124 x 150 mm
Series
DRFF-508R
