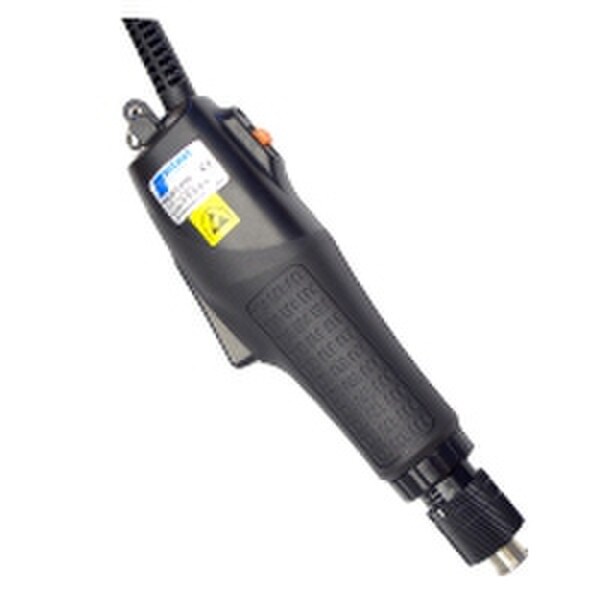

CESL623 | Inline Electric Screwdriver: 1.3 - 10.5in lb Drive type: 1/4 hex RPM: 2000

(0)No Reviews yet
$486.71
$561
$74.29000000000002
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Back

Overview

We’ve modified our popular 32V DC Electric Screwdriver line to create the new CESL series drivers. These drivers function exclusively with the newly designed CECT326-SSO Controller, providing the user with a host of options including slow start, batch counting, and OK/NG rundown indication based on the screwdriving cycle occurring within a predefined time window. An externally accessible I/O connection provides the user with a signal interface. Outputs (24VDC, 10mA) are available for rundown OK, rundown NG, and batch complete. External switches may be wired to the input for remote enable (part in position) and remote clear (reset the batch count).

  • Accurate Torque Control, Ergonomic Design
  • Same proven performance as our standard 32VDC, 300 Series Screwdrivers
  • Precision Shut-off Clutch
  • Hi/Lo Speed Selection Switch
  • Selectable Slow Start Function
  • ESD-safe housing standard, includes torque lock sleeve
  • brushless design = low maintenance
  • CE/RoHS Compliant


Get your N.I.S.T. Calibration & Certificate with this tool.

Back

Technical Specifications

Manufacturer
Delta Regis
SKU
CESL623
Stock Code
2
Style
Inline
Clutch Type
Auto Shut Off
Min Torque (In Lb)
1.3
Max Torque (In Lb)
10.5
Min Torque (Nm)
0.15
Max Torque (Nm)
1.18
Overall Length
245
Max Free Speed (rpm)
2000
Weight (lbs)
1.15
Drive Type
1/4 hex
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the CESL623?

The CESL623 has a torque range from 1.3 to 10.5 in lbs (0.15 - 1.18 Nm).

Did you know that the average max torque range of an Electric Torque Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Torque Screwdrivers like the CESL623, are most commonly used for medium to heavy assembly applications where precise torque control is required. The CESL623 is an Inline model with a Auto Shut Off clutch.
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
