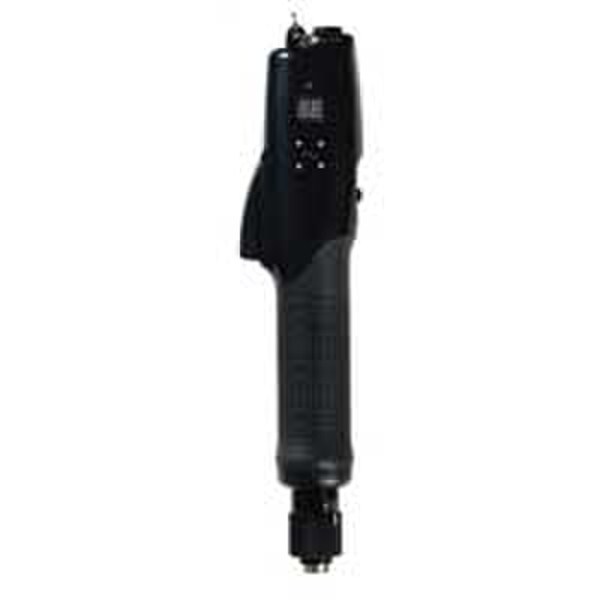

ICESL629P-ESD | Inline Electric Screwdriver with internal counter, 17.4 - 43.4 in lbs, 1000 rpm, ESD, Push-to-Start
Overview
Introducing the Delta Regis ICESL629P-ESD Inline Electric Screwdriver, a remarkable assembly tool that combines precision, power, and efficiency. Engineered by Delta Regis, this electric screwdriver is designed to streamline your fastening processes and take your productivity to new heights.
- Min Torque(In Lb: 17.4)
- Max Torque(In Lb: 43.4)
- Speed(RPM): 1000
- Auto Shut Off: Yes
- Start Type: Push-to-Start
- Manufacturer: Delta Regis
Features & Benefits
- Unrivaled Torque Performance: With a maximum torque of 43.4 in lbs (4.9 Nm), the ICESL629P-ESD delivers exceptional fastening capabilities, making it ideal for a wide range of assembly applications.
- Internal Counter for Quality Control: Equipped with an internal counter, this electric screwdriver keeps track of the number of screws driven, ensuring accurate and consistent fastening results. This feature enhances quality control and helps maintain the integrity of your assembly processes.
- ESD-Safe Design: The ESD-safe design of this electric screwdriver minimizes the risk of electrostatic discharge, making it suitable for use in sensitive electronic assembly environments.
- Variable Speed Control: The ICESL629P-ESD features variable speed control, allowing you to adjust the speed from 0 to 1000 rpm. This versatility enables you to tackle different fastening tasks with precision and control.
Technical Specifications
SKU: ICESL629P-ESD
Model
ICESL629P-ESD
Type
Electric Screwdriver with internal counter
Wrench Type
Electric Screwdriver
Manufacturer
Delta Regis
Free Speed (RPM)
1000
SKU
ICESL629P-ESD
Stock Code
2
Start Type
Push-to-Start
Clutch Type
Auto Shut Off
Min Torque (In Lb)
17.4
Max Torque (In Lb)
43.4
Min Torque (Nm)
1.96
Max Torque (Nm)
4.9
Overall Length
294
Power supply
BECT640NHL
Max Free Speed (rpm)
1000
Weight (lbs)
1.8
Drive Type
1/4 Hex
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the ICESL629P-ESD?
What type of application is the ICESL629P-ESD best suited for?
Electric Screwdrivers like the ICESL629P-ESD, are most commonly used for medium to heavy assembly applications where precise torque control is required.
How do I set the torque on the ICESL629P-ESD?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the ICESL629P-ESD have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
