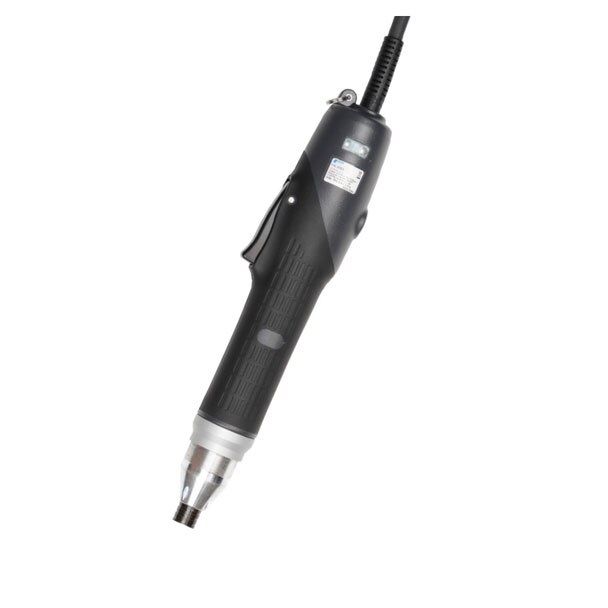

ESL-XTE3LT | Transducerized Electric Screwdriver, 1/4'' hex, 3 Nm, 26 in lbs
Overview
Introducing the ESL-XTE3LT Transducerized Electric Screwdriver, a remarkable assembly tool from Delta Regis that brings precision and control to your fastening tasks. This state-of-the-art screwdriver combines advanced technology with ergonomic design, making it an indispensable asset for any assembly line.
- Drive: 1/4'' hex
- Torque Range: 3 Nm (26 in lbs)
- Speed: 200 - 1,200 rpm
- Weight: 1.1 lbs (0.5 kg)
- Length: 10.2'' (260 mm)
- Controller: DR-XTC1 Transducerized Torque Control System
Features & Benefits
- High Precision Torque Transducer: Equipped with a high-precision torque transducer made in Germany, the ESL-XTE3LT delivers exceptional accuracy and reliability in torque measurement, ensuring consistent and precise fastening results.
- Precise Torque Control: With its advanced torque control system, this electric screwdriver allows for precise adjustment and monitoring of torque values, enabling you to meet the specific requirements of your application.
- Quiet Brushless DC Motor: The brushless DC motor ensures quiet operation without carbon dust, creating a cleaner and more pleasant work environment.
- Low Torque Reaction: The tool's low torque reaction minimizes the impact on the operator's wrist, reducing fatigue and discomfort during prolonged use.
Technical Specifications
Model
ESL-XTE3LT
Drive size
1/4'' hex
Manufacturer
Delta Regis
Controller
DR-XTC1
Length (mm)
280
Length (In)
11.02
SKU
ESL-XTE3LT
Stock Code
1
Min Torque (In Lb)
4.4
Max Torque (In Lb)
26
Min Torque (Nm)
0.5
Max Torque (Nm)
3
ESD Compliant
Yes
Watts
90
Max Free Speed (rpm)
980
Weight (lbs)
1.5
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the ESL-XTE3LT?
What type of application is the ESL-XTE3LT best suited for?
Electric Torque Screwdrivers like the ESL-XTE3LT, are most commonly used for medium to heavy assembly applications where precise torque control is required.
How do I set the torque on the ESL-XTE3LT?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the ESL-XTE3LT have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
