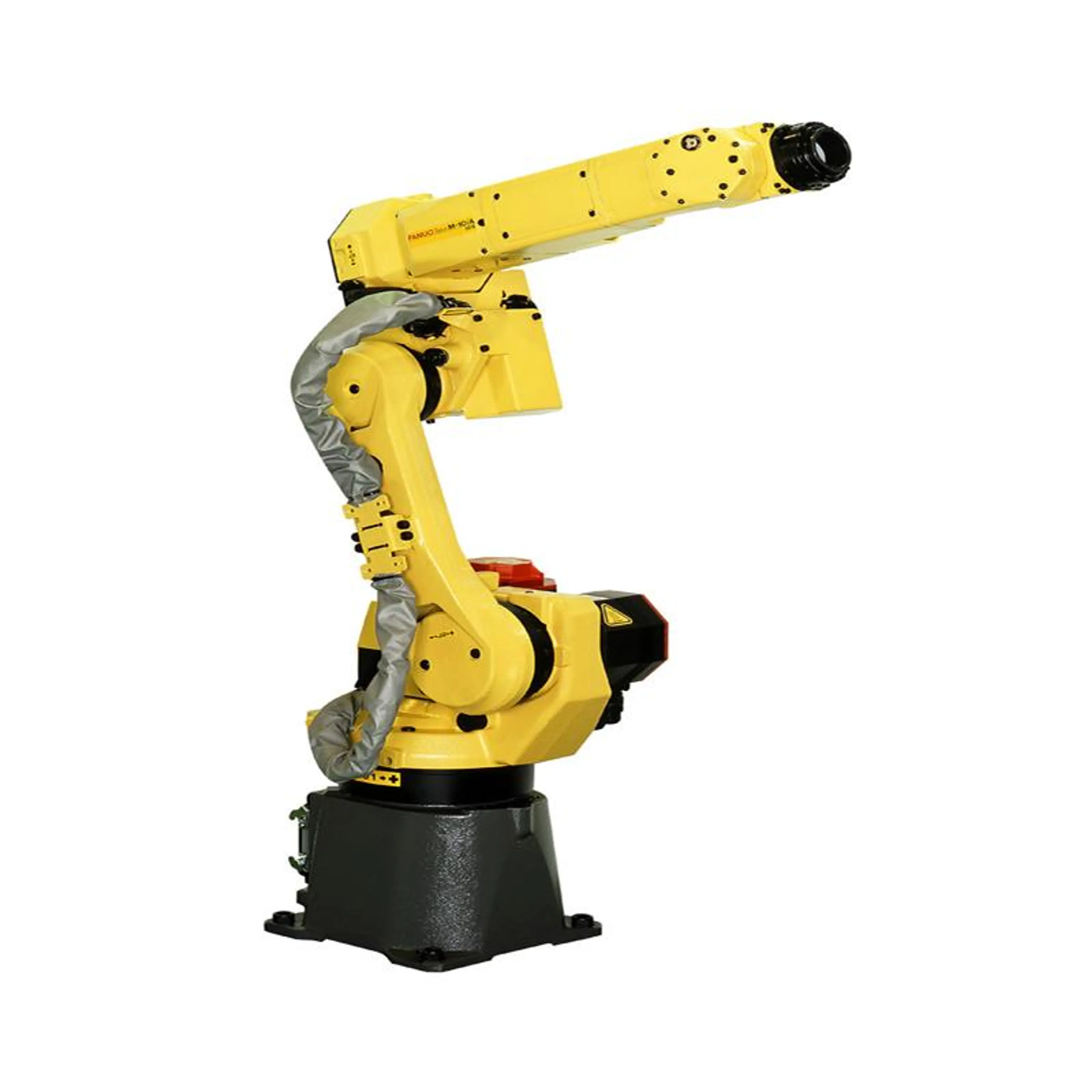

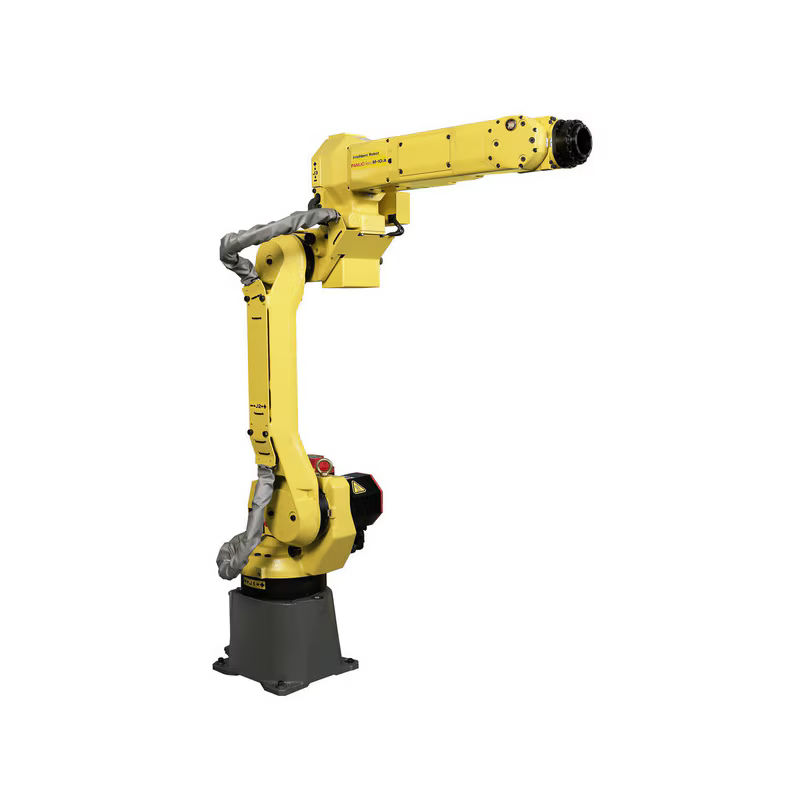

FANUC M-10iA Robot Series
In Stock
This item ships today! Place your order before 4pm Pacific Standard Time (PST)
Overview

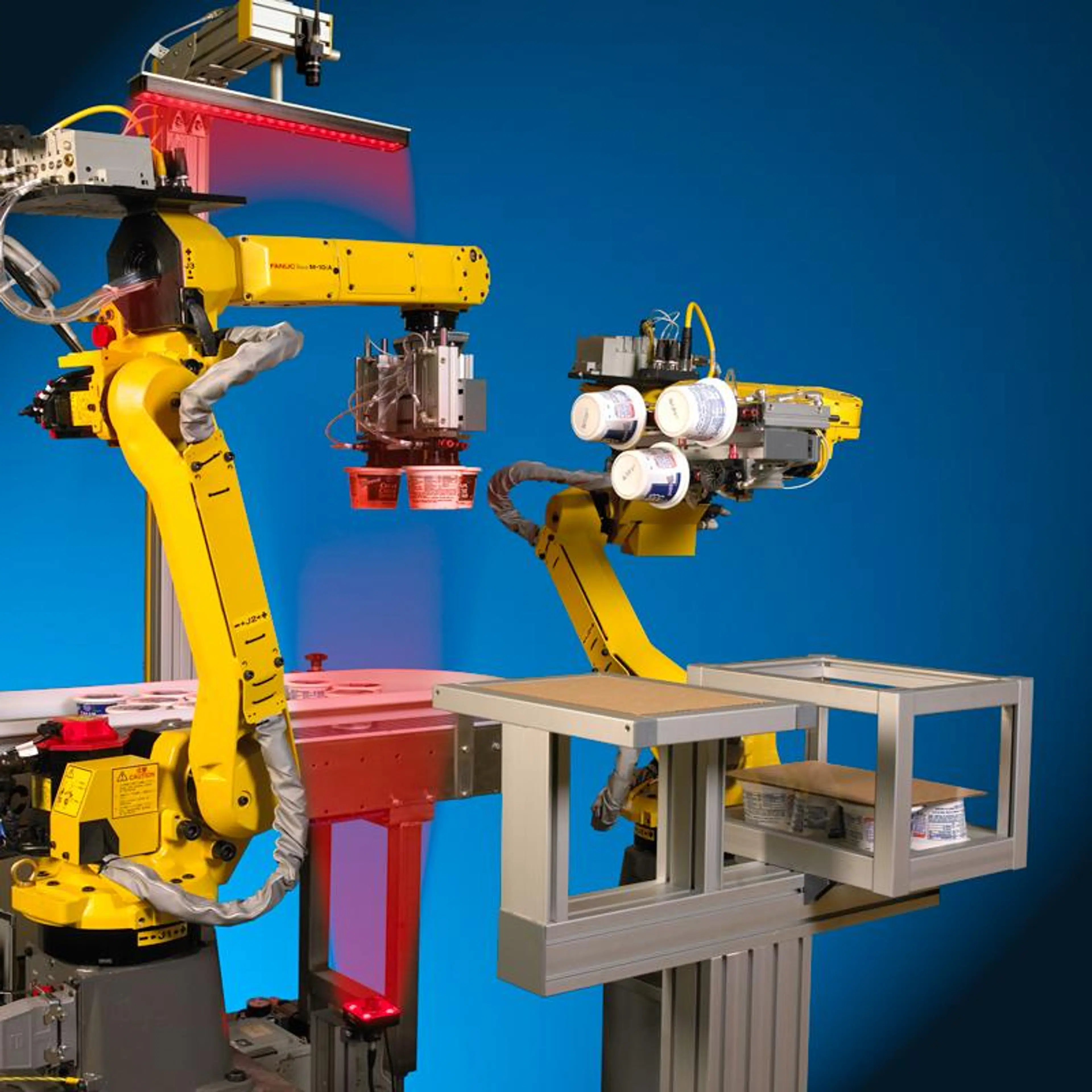

The M-10iA Series offers a high flexibility for applications up to 10 kg payloads. It offers a high speed for handling, pick & place and machine tending operations.
BEST PAYLOAD AND INERTIA IN ITS CLASS
- Best payload in its category, up to 10 kg
- Ideal for loading and unloading applications
- High allowable wrist moments and inertias for complex tools and mounting
- Ability to handle tools at high speed
INTEGRATED CABLE AND SLIM HOLLOW WRIST
- Hollow Wrist (50 mm diameter) and cantilevered J3 arm
- Slimmest wrist interference radius (110 mm) in its class, easier access into narrow spaces
- Cable and hoses routed through J3 arm and wrist axis J6
- The internal dress package also makes it extremely easy to operate and maintain, and ensures a longer cable life
- No risk of collisions and cable interference inside machines, maximized tool rotation range
SINGLE CABLE BETWEEN ROBOT AND CONTROLLER
- faster installation
- reduced spare parts
- easier maintenance
SLIM ARM AND WRIST ASSEMBLY
- Allows the robot to access and manoeuvre in confined work area
- Reduces the need of the robot to exit the work area to reorientate the tool; no decrease of performance
STANDARD AIR AND ELECTRICAL CONNECTIONS PROVIDED TO AXIS J3
Integrated air and electrical services from J1 to J3
- Short connections to tool
- Increased wiring reliability
- Proven reliability (factory built)
FLOOR CEILING ANGLE AND WALL MOUNTING METHOD
- Easier access to the machine being serviced
- Easier access to the parts load/unload area
- Allows maximised use of the robot work envelope
- Some restrictions exist for the angle and wall mounting
WRIST AND J4 ARM IP67
- Waterproof wrist can be immersed into water
- Improved reliability in dusty environments
- Suitable for water jet and die cast applications
ADDITIONAL MOUNTING FACILITY ON J3 ARM
Close mounting of gripper control valves providing a quicker gripper response.
MOTORS DIRECTLY COUPLED TO THE REDUCER
- Simplified mechanical unit
- Reduced breakdown risk
- Compact and reliable solution
- High accuracy and minimum backlash
Features & Benefits
- Motion Range: 1098mm - 1632mm
- Maximum Payload: 6-10 Kg
- Call Or Email Us For A Quote
- Repeatability: ± 0.05 - ± 0.08 mm
