FANUC Robotics M-900iA/350 | 6 Axis, 350 kg Heavy Payload Robot, 2650 mm reach

Rating:
(0)No Reviews yet
Call for Price
FANUC Robotics

Details

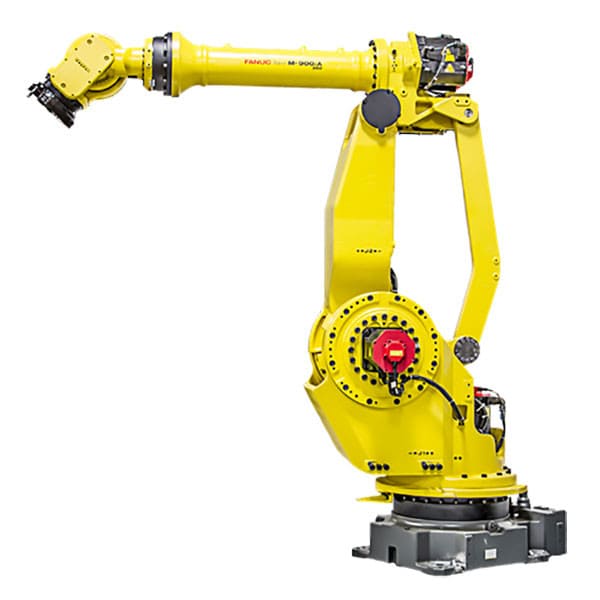

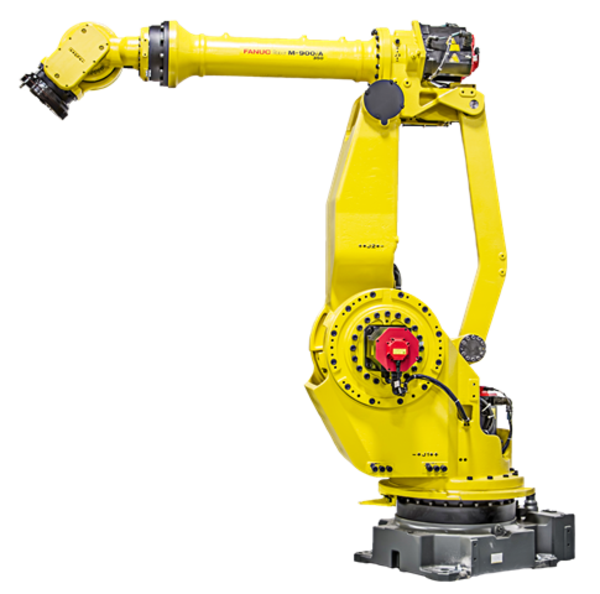

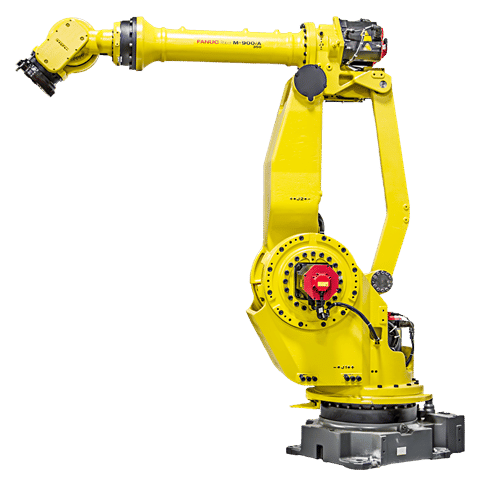

FANUC M-900iA/350

6 Axis, 350 kg Heavy Payload Robot, 2650 mm reach

The FANUC M-900iA series robot is engineered for precise, very high payload/high speed operations, user friendly setup and maximum reliabilit. The M-900iA series is a six axis, electric servo-driven family of robots designed for a variety of manufacturing and systems processes.

Features:
  • "Best in class" wrist moments and intertia meet a variety of heavy handling challenges
  • proven, reliable FANUC servo drives provide highest uptime and productivity
  • Stationary outer arm simplifies hose and cable dressout and prolongs service life
  • Slim arm and wrist assemblies minimize interferance with system peripherals and allow operation in confined spaces
  • Rugged, IP67 rated wrist design performs reliability even in the harshest manufacturing environments
  • A camera for iRVision (Integrated Vision, built-in) can be integrated into the robot for vision guidance and error-proofing applications.
  • Ceiling mount installation is possible on the M-900iA/350 and M-900iA/260L where space is a concern
  • Robust mechanical designreduces down time, increases mean time between failture (MTBF) and minimizes spare part requirements
  • Optional enhanced severe dust and liquid protection package with two-part epoxy paint for harsh environments
  • High inertia mode software allows handling of very large parts with minimal cycletime penalty.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Repeatability: ± 0.3 mm
  • Ambient Tempreture: 0 to 45 degrees
  • Vibration: 0.5G or less

Technical Information

Technical Specifications

Technical Specifications

SKU: M-900iA/350
Manufacturer FANUC Robotics
Model M-900iA/350
Stock CodeC
Application Assembly, Machining/Loading, Material Removal, Painting/Coating, Dispensing, Spot Welding, Part Transfer
Installation Floor, Angle, Wall, Ceiling
Maximum Reach (mm) 2650mm
Axes 6
Payload 350 kg

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!
