FANUC Robotics R-1000iA/100F | 6 Axis, 100 kg Super Heavy Payload Robot, 2230 mm reach

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

FANUC Robotics R-1000iA/100F | 6 Axis, 100 kg Super Heavy Payload Robot, 2230 mm reach

Call for Price
QuantityPrice
FANUC Robotics

Details

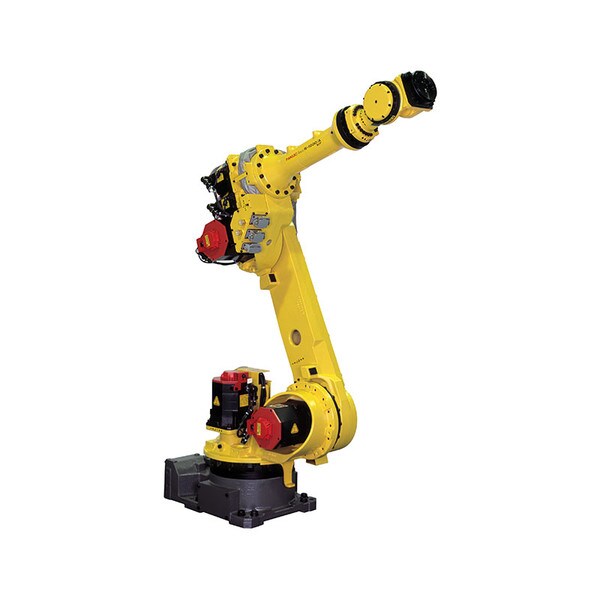

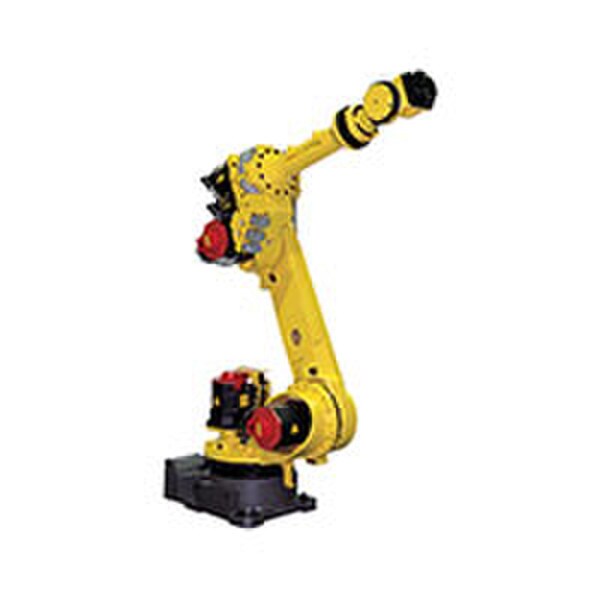

FANUC R-1000iA/100F

6 Axis, 100 kg Super Heavy Payload Robot, 2230 mm reach

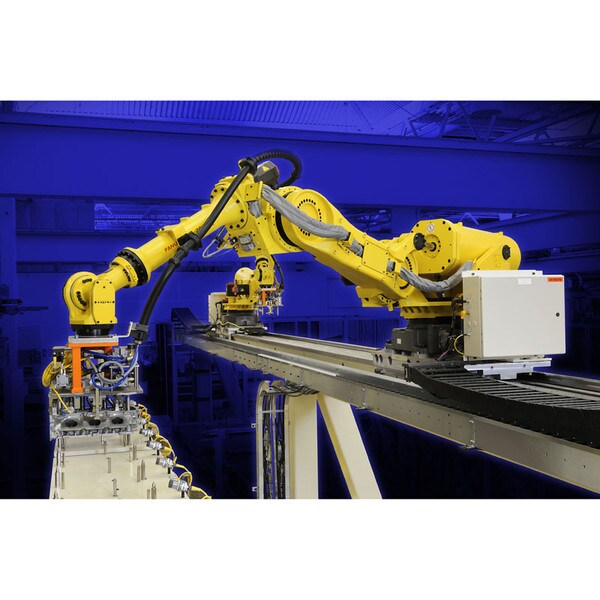

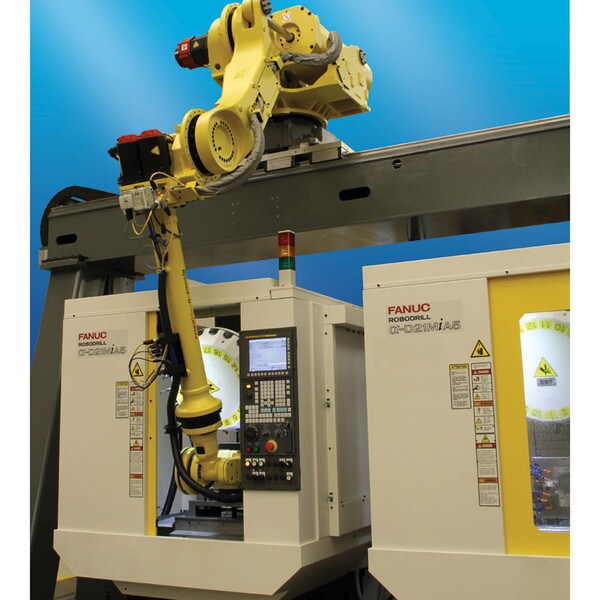

The R-1000iA is a compact and high-speed robot with a wrist capacity of up to 100 kg. A compact mechanical until combined with outstanding motion performance make this robot ideal for material handling or spot welding processes. A narrow footprint allows more robots to fit into a work cell, helping save valuable floor space.

A slim design allows for easy access to adjacent robots, fixtures and work pieces. The R-1000iA can be floor or invert mounted.

The latest intelligent features with iRVision (Integrated Vision) and force sencing are available, as well as a range of other features with the R-30iB Controller.

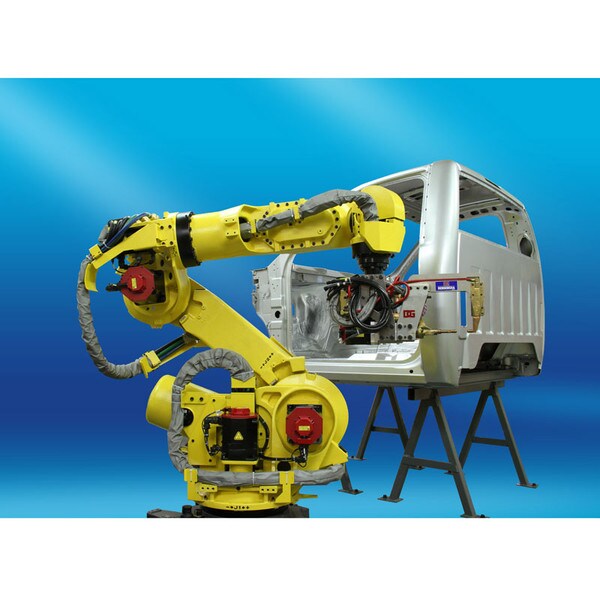

This 6 axis spot welding specialist has the inherent flexibility to complete any number of challenging jobs. Very fast and capable of reaching excellent cycle times, it is particularly suited to a wide range of high-speed robotic spot welding applications.

Warning: California Proposition 65

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Maximize the productivity of your applications with payloads of up to 100 kg.
  • Requires minimal maintenance and is extremely cost-effective when installing and operating it.
  • This model is in favor of greater versatility - it can be mounted both on the ground as well as in a hanging position.

Technical Information

Technical Specifications

Technical Specifications

SKU: R-1000iA/100F
Manufacturer FANUC Robotics
Model R-1000iA/100F
Stock CodeC
Application Assembly, Pick/Pack/Palletizing, Material Removal, Spot Welding, Part Transfer, Dispensing
Installation Floor, Upside-Down, Angle
Maximum Reach (mm) 2230mm
Axes 6
Payload 100 kg

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

FANUC R 1000iA Series Compact High Speed Robot Brochure (PDF)

We are always wanting to provide more information! In need of a technical document? Let us know!
