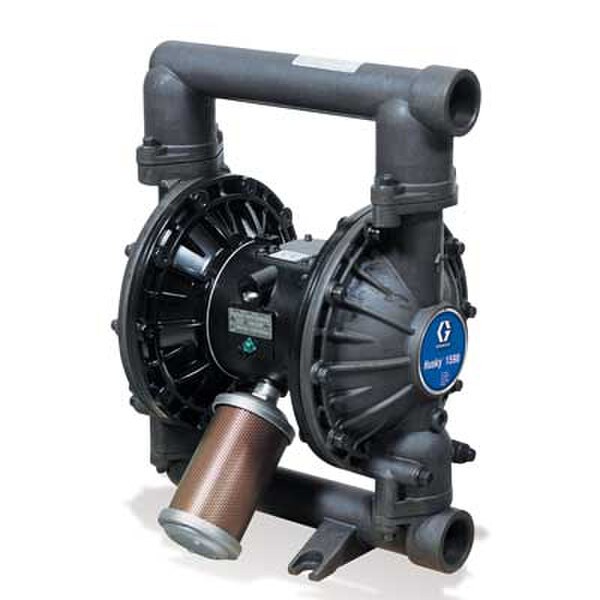

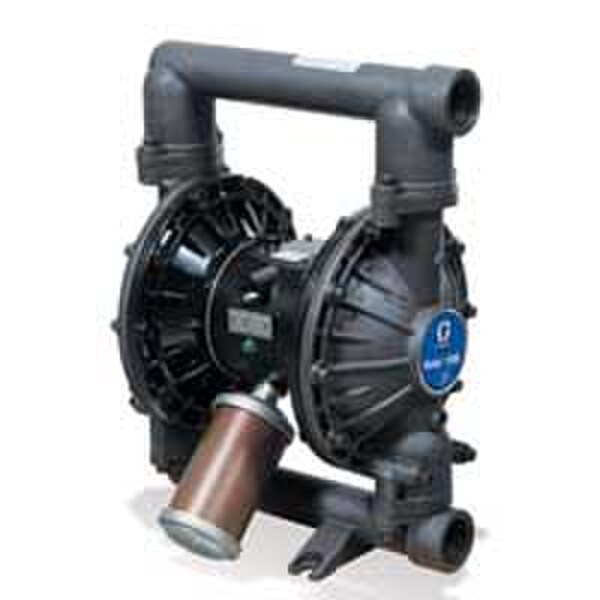

Graco Graco Husky 1590 Diaphragm Pumps

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Graco Graco Husky 1590 Diaphragm Pumps

Rating:
(0)No Reviews yet
Call for Price
Graco

Details

Features:

1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation

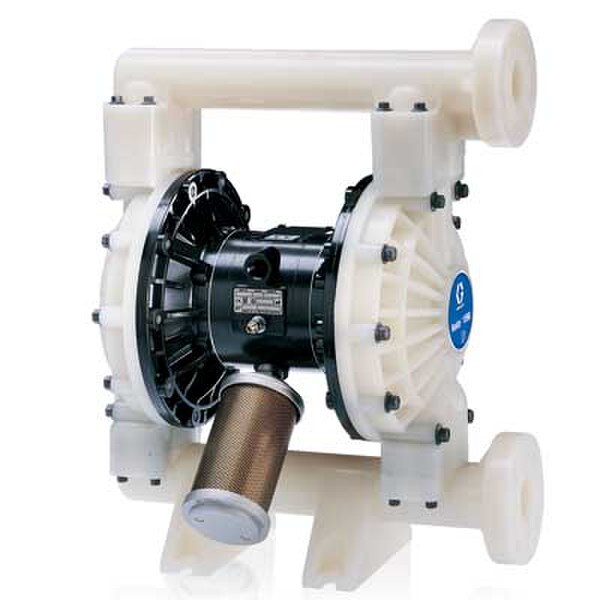

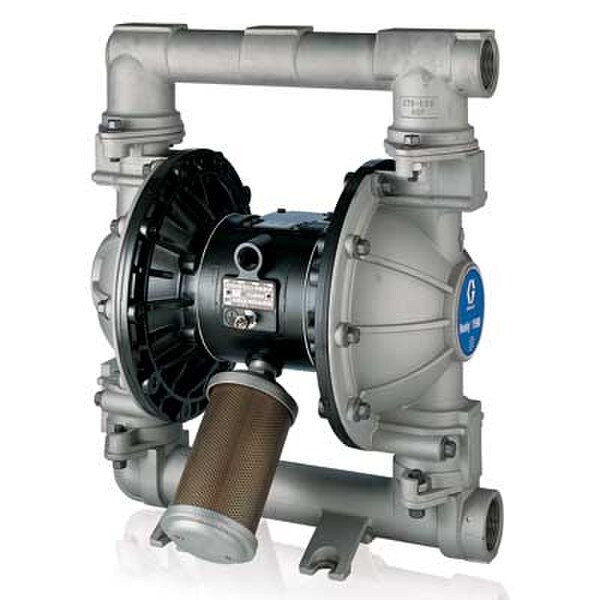

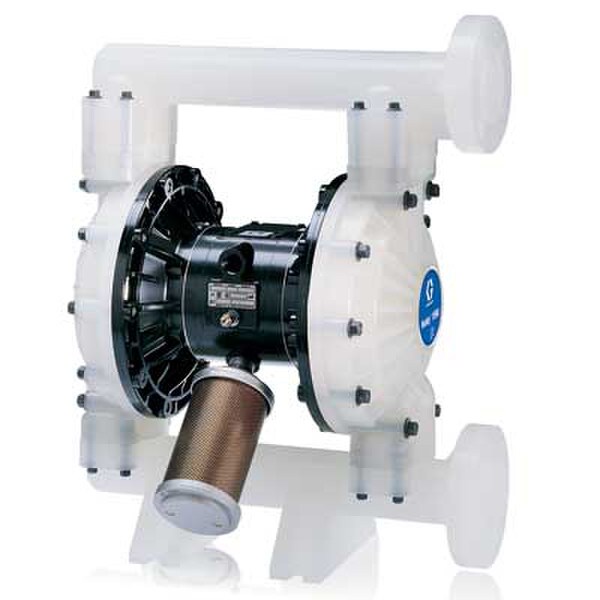

Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Specs:

  • Connection Size: 1/2 in
  • Thread Type: NPT or BSP
  • Air Valve: Standard and Remote
  • Maximum Flow Rate: 100 gpm (378.5 lpm)
  • Maximum Discharge Pressure: 120 psi
  • Materials of Construction Available: Aluminum, Stainless Steel, Polypropylene, PVDF
  • Pump Weight: 33.5 lb Aluminum 86 lb Stainless Steel Polypropylene 35 lb PVDF 49 lb
  • Maximum Solids: 0.19 in
  • Port Size: NA
  • Fluid Inlet & Outlet Size: 1-1/2 NPT or BSP or ANSI-Flange





Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • 1.5 inch Positive Displacement Double Diaphragm Pump
  • Easy-to-service air valve and ball checks

Technical Information

Technical Specifications

Technical Specifications

SKU: Graco Husky 1590 Diaphragm Pumps
Manufacturer Graco
Series Husky 1590

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!
