7AJJST4 | Air Drill, Pistol Grip, 1/4 in. chuck, 4000 rpm
Overview
Ingersoll Rand Air Drill, Pistol Grip, 1/4 in. chuck, 4000 rpm
Air Drill, Pistol Grip, 1/4 in. chuck, 4000 rpm, model 7AJJST4 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Air Drill available elsewhere for a lower price? Contact Customer Service about price matching!
7AJJST4 by Ingersoll Rand

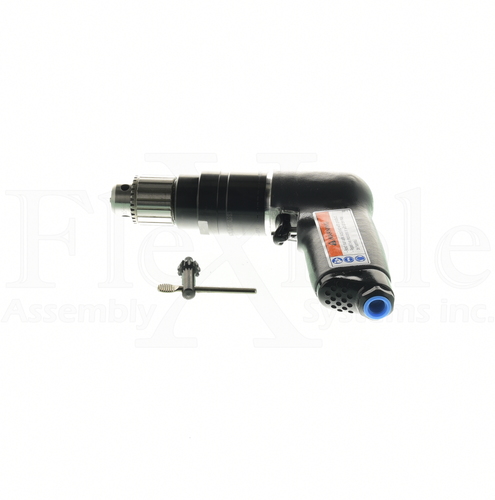

The 7AJJST4 Air Drill has a 1/4 in. chuck and can run up to 4000 rpm
360° Product Viewer
Features & Benefits
- Modular design allows for quickly and easy changes
- Double row ball bearings ensure precise, concentric holes.
- Optimized power-to-weight ratio
- Easily able to withstand harsh environments
Technical Specifications
SKU: 7AJJST4-IR
Power Source
Air Powered
Vibration Level
<2.5
Duty Rating
Industrial Duty
Air Inlet Size
1/4" NPT
Min Hose Size
3/8
Air Pressure (PSI)
90
Air Consumption @ Load
25
Max Torque (ft-lb)
3.9
Max Torque (in-lb)
47
Max Torque (Nm)
5.31
Free Speed (RPM)
4000
Exhaust Direction
Handle
Power (HP)
0.75
Chuck Type
Keyed Chuck
Technical Documents
- Ingersoll Rand 7A Series Air Drill Product Information (PDF)
- Ingersoll Rand 7A Series Air Drill Parts Breakdown (PDF)
- Ingersoll Rand Air Drill Safety Information (PDF)
- Ingersoll Rand 7A Series Air Drill Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
