77H120H84 | Air Grinder, 1/2 in. - 13 Thread, 4 in. Guard, 12000 rpm
Overview

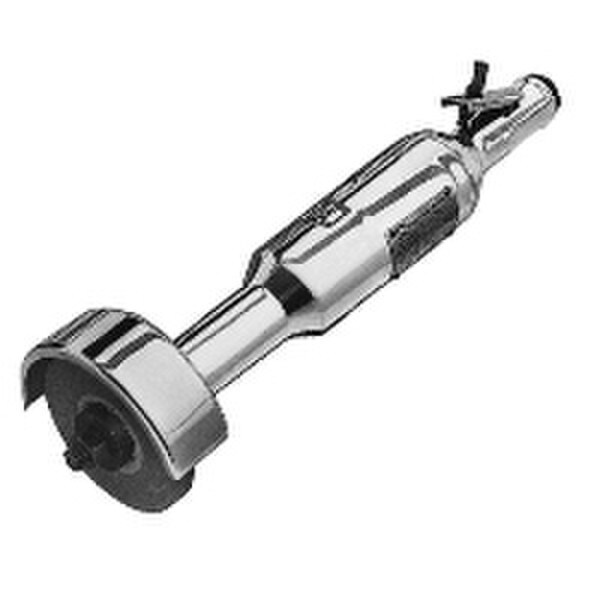

Ingersoll Rand Air Grinder, 1/2 in. - 13 Thread, 4 in. Guard, 12000 rpm
Air Grinder, 1/2 in. - 13 Thread, 4 in. Guard, 12000 rpm, model 77H120H84 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Air Grinder available elsewhere for a lower price? Contact Customer Service about price matching!
77H120H84 by Ingersoll Rand
The 77H120H84 Angle Head Vertical Grinder has a free speed of 12000 rpm. The output on this Air Grinder is 1/2 in. - 13 Thread, 4 in. Guard
Technical Specifications
Model
77H120H84
Manufacturer
Ingersoll Rand
Length (mm)
438
Length (In)
17.25
Free Speed (RPM)
12000
SKU
77H120H84
Stock Code
3
Style
Angle Head
UPC
00663024005378
Rated Power (kw)
1.12
Max Free Speed (rpm)
12000
Output
1/2'' - 13 thread, 4'' guard
Exhaust
Side
Min Hose Size (in)
1/2
Weight (lbs)
6.5
Wheel Size (in)
4
Spindle Housing Diameter (in)
2.63
Handle Type
Lever
Series
77H
Rated Power (hp)
1.5
Technical Documents
Ingersoll Rand 61H 77H 88H 99H Series Air Die Grinder Product Information (PDF)- Ingersoll Rand 77H Series Air Die Grinder Parts Breakdown (PDF)
- Ingersoll Rand Air Die Grinder Safety Information (PDF)
- Ingersoll Rand 77H Series Air Die Grinder Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
