W2A1 | Chipping Hammer, 2300 bpm, 0.58 Hex shank, 2 in. stroke
Overview

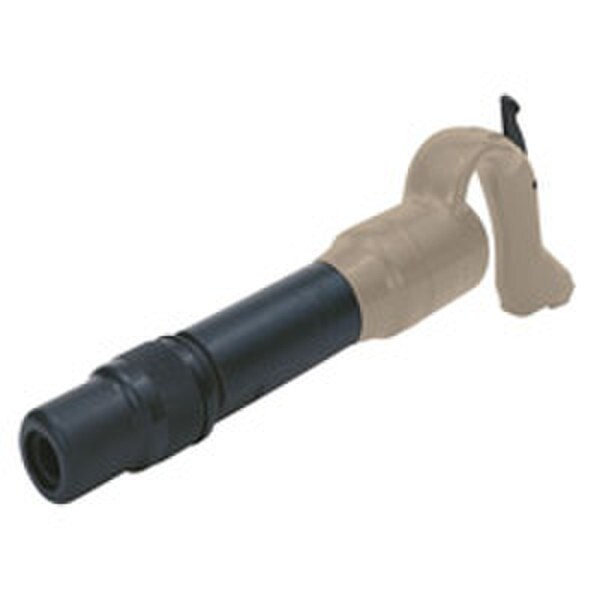

Ingersoll Rand Chipping Hammer, 2300 bpm, 0.58 Hex shank, 2 in. stroke
Chipping Hammer, 2300 bpm, 0.58 Hex shank, 2 in. stroke, model W2A1 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Chipping Hammer available elsewhere for a lower price? Contact Customer Service about price matching!
W2A1 by Ingersoll Rand
At 2300 blows per minute, the W5132-K12 Chipping Hammer has a 1.13 in. Bore and 2 in. stroke.
Technical Specifications
Model
W2A1
Type
Chipping Hammer
Manufacturer
Ingersoll Rand
Length (In)
16.38
SKU
W2A1
Stock Code
3
Shank
0.58'' Hex
UPC
00663023014692
Shank Type
Hex
Min Hose Size (in)
1/2
Weight (lbs)
15.13
Bore Diameter (in)
1.13
Blows Per Minute (bpm)
2300
Stroke Length (in)
2
Series
Series W
Air Cons. @ Load (cfm)
28
Hex Shank Size (in)
0.58 in.
Retainer Type
Rubber buffered
Air Inlet NPT (in)
3/8
Technical Documents
Ingersoll Rand Series A and W Air Hammer Product Information (PDF)- Ingersoll Rand Series A and W Air Hammer Parts Breakdown (PDF)
- Ingersoll Rand Air Percussive Tool Safety Information (PDF)
- Ingersoll Rand Series A and W Air Hammer Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
