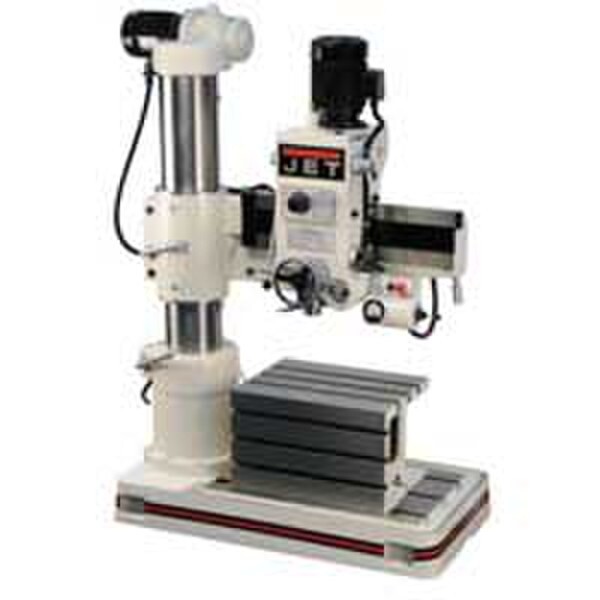

Jet 320033

J-720R, 3' Arm Radial Drill Press 230/460V

The apex of heavy-duty JET Radial Arm Drill Presses are built to create precision holes in huge pieces and enhance productivity in even the busiest commercial shops. Operation is enhanced with power spindle feed and coolant systems, safety features and ergonomic design. JET Radial Arm Drill Presses are built to deliver under even the most demanding drilling specifications, and hold material fast for superior performance

• The power train gears and spline shafts are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loads
• The spindle is made of finest case hardened steel, for extra strength and wear
• The spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top
• Build to withstand exceptionally heavy drilling and boring loads to insure maximum accuracy
• Arm raising safety device prevents arm from dropping
• Counter balanceed mechanism for spindle return
• 6 Speeds/3 Feed rates make exotic materials easier to drill, bore and tap
• Centralized control center
• Automatic tool ejector
• Independent arm electric clamping system, which locks and unlocks the head and column
• Push botton controls are all reduced to 110VAC
• Electrical circuits are located in the build-in control box at the rear of the arm. This keeps the controls dust-and-humidity-free while making them easilly accessible for maintenance
• Entire frame is made of Meehanite and high tensile strength cast iron to handle the haviest of jobs
• Build in work light
• Coolant pump
• Tool kit
• Box table
