Jet JT9-321498 | GH-1440ZX With Newall DP700 DRO With Taper Attachment and Collet Closer

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Jet JT9-321498 | GH-1440ZX With Newall DP700 DRO With Taper Attachment and Collet Closer

Rating:
(0)No Reviews yet
$39,999.00
Jet

Details

Jet 321498

Gh-1440Zx With Newall Dp700 Dro With Taper Attachment And Collet Closer

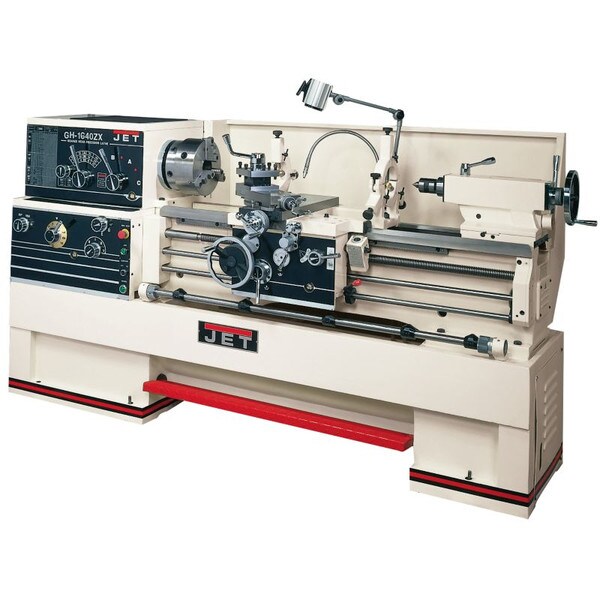

A JET exclusive design, the ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty

Features:
  • 14" ZX SERIES LARGE SPINDLE BORE LATHES
  • Uniquely designed exclusively by JET
  • ISO 9001 certified manufacturer
  • 3-1/8" bore spindle is supported by two tapered and one ball bearing
  • Chrome molybdenum headstock gears are hardened, ground, and shaved
  • Universal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required
  • Carriage Feature one-shot lubrication and Turcite B on bed sliding surfaces
  • T-slotted compound slide featuring a four-way tool post
  • One-piece cast iron base absorbs vibration allowing heavier cuts
  • High quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground
  • Removable gap allows up to 23-5/8" diameter work
  • Five position automatic carriage stop increases productivity
  • Attractive chrome control levers, dials, and knobs complete this impressive package
  • Tolerance test certificate included
  • 10" 3-jaw scroll chuck with top reversing jaws
  • 12" 4-jaw independent chuck
  • 12" face plate
  • Four-way tool post
  • Follow rest
  • Large capacity steady rest
  • Fully integrated coolant system
  • Full length splash guard and coolant return
  • Large easy to use foot brake
  • Articulating halogen work lamp
  • Centrally located controls with jog button
  • Threading dial

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Technical Information

Technical Specifications

Technical Specifications

SKU: JT9-321498
Manufacturer Jet
Model 321498
Stock CodeB
Rated Power (hp) 7.5
Voltage230V - 460V
Weight5700 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!
