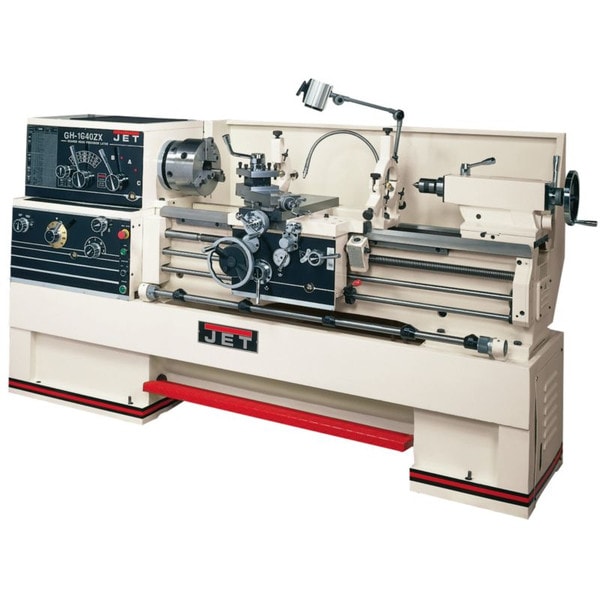

Jet 321879

Gh-2280Zx With Acu-Rite 200S Dro

A JET exclusive design, the ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty

• Uniquely designed exclusively by JET
• ISO 9001 certified manufacturer
• 3-1/8" bore spindle is supported by two tapered and one ball bearing
• Chrome molybdenum headstock gears are hardened, ground and shaved
• Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
• Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
• T-slotted compound slide featuring four-way tool post
• One piece cast iron base absorbs vibration allowing heavier cuts
• High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground
• Removable gap allows up to 23-5/8" diameter work on 16", 27-1/2" on 18"
• Five position automatic carriage stop increases productivity
• Attractive chrome levers, dials and knobs complete this impressive package
• Tolerance test certificate included
• 10" 3 jaw chuck with top reversing jaws
• 12" 4 jaw chuck
• 16" face plate
• Four-way tool post
• Follow rest
• Large capacity steady rest
• Fully integrated coolant system
• Full length splash guard and coolant return
• Large easy to use foot brake
• Articulating halogen work lamp
• Centrally located controls with jog button
• Threading dial
• Mounting pads and levelers
